Concealed hinge INVISACTA IN300

Product code
IN300
OTLAV View catalogue of manufacturer
main product photo


From €15.90 was €17.67

Select a suitable hinge finish and add matching caps in the required number.
One hinge requires 4 caps.
Reset selection
Concealed hinge INVISACTA IN300   €15.90

Price as configured €15.90

kit
The selected product is currently out of stock.
Questions and answers
Durvju vērtņu virzieni saskaņā ar DIN 107
Eņģu klasifikācija saskaņā ar EN 1935
Eņģu slodzes izturība
Durvju profilu veidi
Būvizstrādājumu regula ES 305/2011
Concealed hinge INVISACTA IN300
Manufacturer - OTLAV (Italy)

    • ideal solution for modern doors
    • may be leaf or frame-mounted
    • suitable for non-rebated wooden doors
    • 3-dimensional adjustability: side (+/- 1 mm), depth (+/- 1 mm) and height (+/- 2 mm)
    • suitable for both left and right hand doors)
    • maximum load capacity: 60 kg (2 hinges per leaf)
    • size: 120 x 30 mm
    • Ø 12 mm
    • depth of the milling in the frame: 21 mm
    • high level of durability, ensured by the 7 joint hinges and durable nylon receiver
    • opening angle: 180°
    • compatible with aluminium caps (4 pc. needed for 1 hinge)
    • material metal alloy ZAMAK:
      • white
      • black
      • bronze
      • nickel-plated matt (F2)
      • silver tone
      • polished gold
      • matt gold

Montāžas instrukcijas un regulēšana
Slēpto eņģu INVISACTA montāžas shēma Slēpto eņģu INVISACTA montāžas shēma
Montāžas un regulēšanas instrukcija IN300 Montāžas un regulēšanas instrukcija IN300

Dokumentācija
Eņģu INVISACTA ekspluatācijas īpašību noturības sertifikāts (EN) Eņģu INVISACTA ekspluatācijas īpašību noturības sertifikāts (EN)
Ekspluatācijas īpašību deklarācija 542 IN300120H004 DE Ekspluatācijas īpašību deklarācija 542 IN300120H004 DE
Ekspluatācijas īpašību deklarācija 542 IN300120H004 EN Ekspluatācijas īpašību deklarācija 542 IN300120H004 EN
Ekspluatācijas īpašību deklarācija 542 IN300120H004 LV Ekspluatācijas īpašību deklarācija 542 IN300120H004 LV

Tehniskā papildinformācija
Eņģu montāžas parametri un eņģu skaita izvēles ieteikumi Eņģu montāžas parametri un eņģu skaita izvēles ieteikumi
Slēpto eņģu INVISACTA IN300 slodzes tabula Slēpto eņģu INVISACTA IN300 slodzes tabula
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. INVISACTA IN300 concealed hinge 30x120 mm, white
    INVISACTA IN300 concealed hinge 30x120 mm, white
    Code: SB00018787
    Art. Nr.: IN3001209P02
    Price:
    From Special Price €19.82 was €22.02
    In Stock: 299 pc.
  2. INVISACTA IN300 concealed hinge 30x120 mm, galvanised
    INVISACTA IN300 concealed hinge 30x120 mm, galvanised
    Code: SB00018789
    Art. Nr.: IN300120H004
    Price:
    From Special Price €15.90 was €17.67
    In Stock: 992 pc.

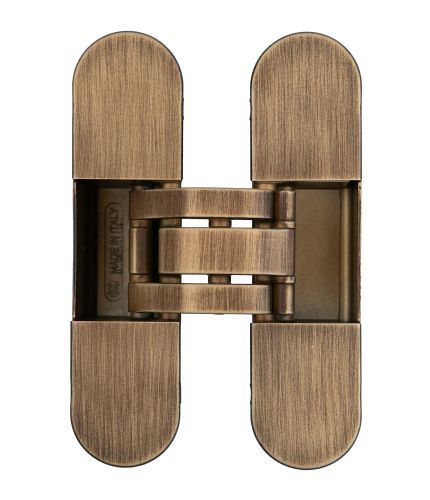

  3. INVISACTA IN300 concealed hinge 30x120 mm, bronze
    INVISACTA IN300 concealed hinge 30x120 mm, bronze
    Code: SB00018788
    Art. Nr.: IN300120BO02
    Price:
    From €22.02
    In Stock: 48 pc.
  4. INVISACTA IN300 concealed hinge 30x120 mm, satinized nickel
    INVISACTA IN300 concealed hinge 30x120 mm, satinized nickel
    Code: SB00018792
    Art. Nr.: IN300120VN02
    Price:
    From Special Price €16.99 was €18.88
    In Stock: 662 pc.
  5. INVISACTA IN300 concealed hinge 30x120 mm, black
    INVISACTA IN300 concealed hinge 30x120 mm, black
    Code: SB00018786
    Art. Nr.: IN3001209N02
    Price:
    From Special Price €18.08 was €20.09
    In Stock: 1281 pc.
  6. INVISACTA IN300 concealed hinge 30x120 mm, silver
    INVISACTA IN300 concealed hinge 30x120 mm, silver
    Code: SB00018791
    Art. Nr.: IN300120V702
    Price:
    From Special Price €18.08 was €20.09
    In Stock: 180 pc.
  7. INVISACTA IN300 concealed hinge 30x120 mm, matt gold
    INVISACTA IN300 concealed hinge 30x120 mm, matt gold
    Code: SB00024036
    Art. Nr.: IN300120VM02
    Price:
    From €26.62
    In Stock: 119 pc.
  8. INVISACTA IN300 concealed hinge 30x120 mm, polished gold
    INVISACTA IN300 concealed hinge 30x120 mm, polished gold
    Code: SB00018790
    Art. Nr.: IN300120VO02
    Price:
    From Special Price €29.40 was €32.67
    This price applies only to items in stock. For larger quantities price is calculated upon request.
    In Stock: 53 pc.
  9. INVISACTA 3D concealed hinge cover, white (4 pcs. required per hinge)
    INVISACTA 3D concealed hinge cover, white (4 pcs. required per hinge)
    Code: SB00018743
    Art. Nr.: GC3000109P02
    Price:
    From Special Price €0.22 was €0.24
    In Stock: 1444 pc.
    Can be ordered in full packages of 4 pcs.

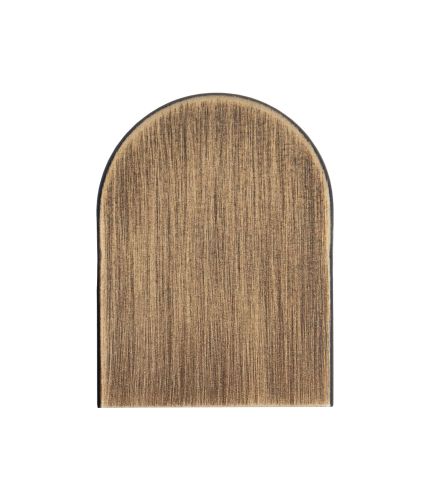

  10. INVISACTA 3D concealed hinge cover, bronze (4 pcs. required per hinge)
    INVISACTA 3D concealed hinge cover, bronze (4 pcs. required per hinge)
    Code: SB00018744
    Art. Nr.: GC3000109R02
    Price:
    From €0.24
    In Stock: 120 pc.
    Can be ordered in full packages of 4 pcs.
  11. INVISACTA 3D concealed hinge cover, matt nickel (4 pcs. required per hinge)
    INVISACTA 3D concealed hinge cover, matt nickel (4 pcs. required per hinge)
    Code: SB00018746
    Art. Nr.: GC300010J205
    Price:
    From Special Price €0.22 was €0.24
    In Stock: 976 pc.
    Can be ordered in full packages of 4 pcs.
  12. INVISACTA 3D concealed hinge cover, black (4 pcs. required per hinge)
    INVISACTA 3D concealed hinge cover, black (4 pcs. required per hinge)
    Code: SB00018742
    Art. Nr.: GC3000109N02
    Price:
    From Special Price €0.39 was €0.42
    In Stock: 5296 pc.
    Can be ordered in full packages of 4 pcs.
  13. INVISACTA 3D concealed hinge cover, silver tone (4 pcs. required per hinge)
    INVISACTA 3D concealed hinge cover, silver tone (4 pcs. required per hinge)
    Code: SB00018745
    Art. Nr.: GC300010J102
    Price:
    From Special Price €0.22 was €0.24
    In Stock: 6048 pc.
    Can be ordered in full packages of 4 pcs.
  14. INVISACTA 3D concealed hinge cover, matt gold (4 pcs. required per hinge)
    INVISACTA 3D concealed hinge cover, matt gold (4 pcs. required per hinge)
    Code: SB00024037
    Art. Nr.: GC300010VM02
    Price:
    From €1.21
    In Stock: 468 pc.
    Can be ordered in full packages of 4 pcs.
  15. INVISACTA 3D concealed hinge cover, polished gold (4 pcs. required per hinge)
    INVISACTA 3D concealed hinge cover, polished gold (4 pcs. required per hinge)
    Code: SB00018747
    Art. Nr.: GC300010JO05
    Price:
    From Special Price €0.22 was €0.24
    In Stock: 152 pc.
    Can be ordered in full packages of 4 pcs.

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. Visma Quote
    Mounting plate for Invisacta IN300120, zinc plated
    Mounting plate for Invisacta IN300120, zinc plated
    Code: SB00018809
    Art. Nr.: NP120040H502
    Price:
    From €2.80
    In Stock: 0 pc.
Manufacturer OTLAV
hinge type concealed hinge
hinge shape rounded
door construction for non-rebated doors
door direction universal use for DIN right and left hand doors
class as per EN 1935 class 2
fire safety suitable for fire and smoke safety doors
leaf material wood
load capacity middle
leaf maximum weight 60 kg
suitable for aluminium frames suitable using additional mounting parts
suitable for steel frames suitable using additional mounting parts
suitable for industrial frames suitable using additional mounting parts
suitable for timber frames suitable
anti-corrosion resistance certified according to EN 1935 - depending on finish
adjustment adjustable
groove for leaf seal no
anti-intruder protection yes, protected hinge design
cutter diameter 24 mm
height 120 mm
maintenance not required (self-lubricating bearings)
installation template available for sale or rent
fastening elements must be ordered separately
material ZAMAK
