Spring-loaded hinge FRIDAVO 70814 No.36
Product code
MB00008824
All prices include VAT
From
€60.19
From
€60.19
In Stock
Only %1 left
Spring-loaded hinge FRIDAVO 70814 No.36
Manufacturer - Fridavo (Germany)-
- hinge height (mm): 150 mm
- leaf width (mm): 735 mm
- leaf height (mm): 2500 mm
- leaf thickness (mm): 34-40 mm
- maximum load (kg): 40 kg
- material:
-
-
- steel, galvanised
- stainless steel
- steel, brass-plated
-
Hinge parameters - size 36 (mm)
| A | B | C | D | E | F | G | H | I | J | K | L | M | N |
| 151,0 | 122,5 | 78,5 | 12 | 19 | 24 | 33 | 51 | 175 | 130 | 75 | 12 | 17 | 26 |
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

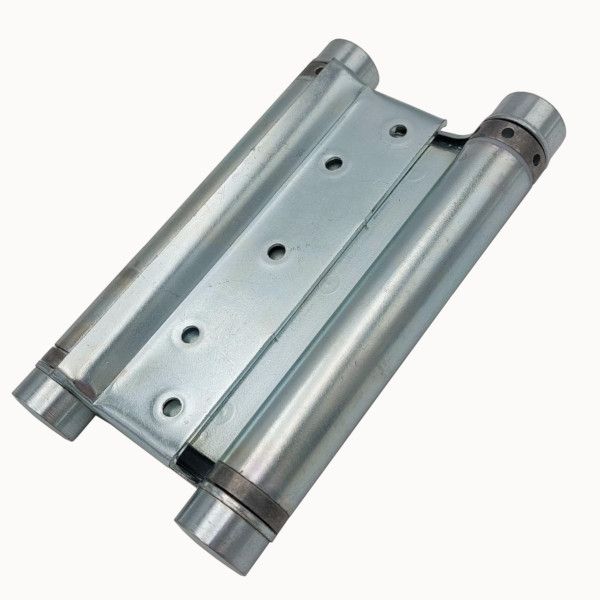

Hinges for double leaf doors 36/150, galvanised steelCode: SB00009070Art. Nr.: 70814 36/150 verzPrice:From €60.19In Stock: 9.5 pāris -
Hinges for double leaf doors, 36/150, brass coatedCode: SB00009071Art. Nr.: 70814 36/150 VMSPrice:From €148.88In Stock: 0 pāris -

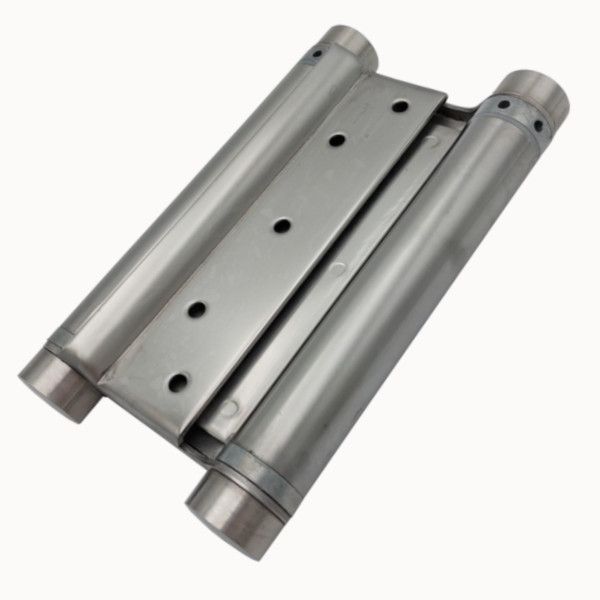

Hinges for double leaf doors 36/150, st.steelCode: SB00009069Art. Nr.: 70814 36/150 NirostaPrice:From €140.43In Stock: 0 pāris
| Manufacturer | FRIDAVO |
|---|---|
| hinge type | spring-loaded hinge |
| hinge shape | rectangular |
| door construction | for non-rebated doors |
| door direction | universal use for DIN right and left hand doors |
| class as per EN 1935 | not certified |
| fire safety | not suitable for fire and smoke safety doors |
| leaf height | 2500 mm |
| leaf thickness | 34 - 40 mm |
| leaf width | 735 mm |
| leaf material | wood |
| load capacity | middle |
| leaf maximum weight | 40 kg |
| suitable for aluminium frames | suitable |
| suitable for steel frames | suitable |
| suitable for industrial frames | suitable |
| suitable for timber frames | suitable |
| anti-corrosion resistance | not certified |
| adjustment | not adjustable |
| groove for leaf seal | no |
| anti-intruder protection | no |
| knuckle diameter | 26 mm |
| height | 150 mm |
| maintenance | recommended 1x a year |
| fastening elements | must be ordered separately |
| material | steel / stainless steel |
