Spring-loaded hinge FRIDAVO 70814 No.39
Product code
MB00008825
All prices include VAT
From
€75.18
From
€75.18
In Stock
Only %1 left
Spring-loaded hinge FRIDAVO 70814 No.39
Manufacturer - Fridavo (Germany)-
- hinge height (mm): 175 mm
- leaf width (mm): 860 mm
- leaf height (mm): 2500 mm
- leaf thickness (mm): 40-45 mm
- maximum load (kg): 55 kg
- material:
-
-
- steel, galvanised
- stainless steel
- steel, brass-plated
-
Hinge parameters - size 39 (mm)
| A | B | C | D | E | F | G | H | I | J | K | L | M | N |
| 176,0 | 141,5 | 87,5 | 12 | 17 | 26 | 36 | 56 | 200 | 153 | 80 | 15 | 18 | 29 |
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

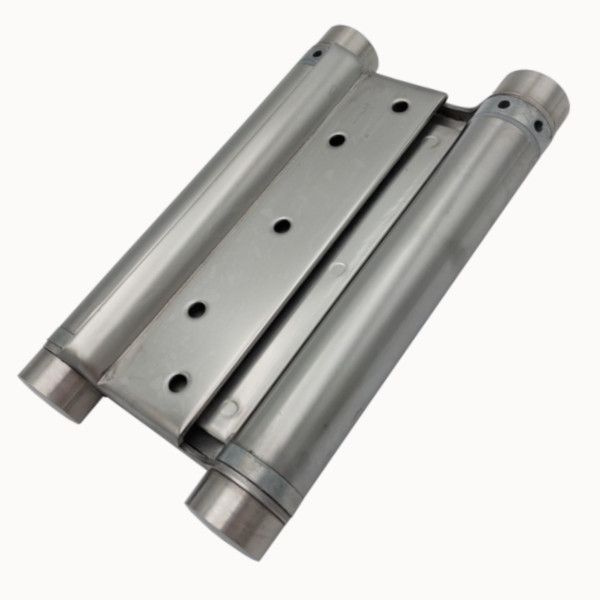

Hinges for double leaf doors, 39/175, st.steelCode: SB00009073Art. Nr.: 70814 39/175 NiroPrice:From €174.71In Stock: 0 pāris -
Hinges for double-leaf doors 39/175, brass-coated steelCode: SB00009074Art. Nr.: 70814 39/175 vermessPrice:From €177.25In Stock: 0 pāris -

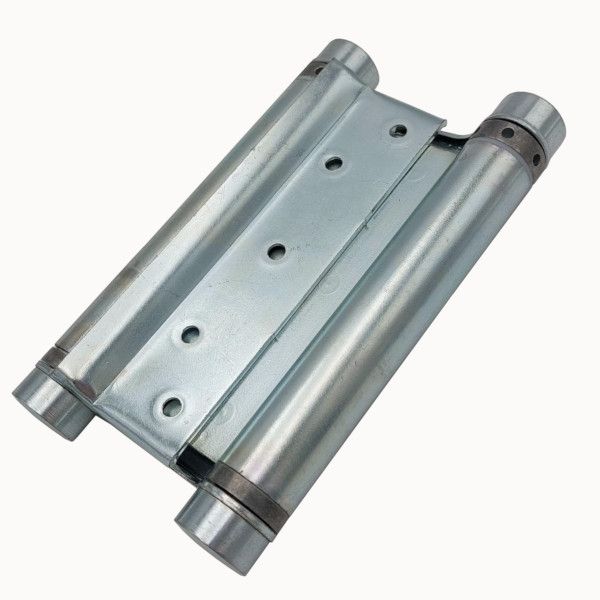

Hinges for double leaf doors, 39/175, galvanisedCode: SB00009076Art. Nr.: 70814 39/175/verz.Price:From €75.18In Stock: 8.5 pāris
| Manufacturer | FRIDAVO |
|---|---|
| hinge type | spring-loaded hinge |
| hinge shape | rectangular |
| door construction | for non-rebated doors |
| door direction | universal use for DIN right and left hand doors |
| class as per EN 1935 | not certified |
| fire safety | not suitable for fire and smoke safety doors |
| leaf height | 2600 mm |
| leaf thickness | 40 - 45 mm |
| leaf width | 860 mm |
| leaf material | wood |
| load capacity | middle |
| leaf maximum weight | 55 kg |
| suitable for aluminium frames | suitable |
| suitable for steel frames | suitable |
| suitable for industrial frames | suitable |
| suitable for timber frames | suitable |
| anti-corrosion resistance | not certified |
| adjustment | not adjustable |
| groove for leaf seal | no |
| anti-intruder protection | no |
| knuckle diameter | 29 mm |
| height | 175 mm |
| maintenance | recommended 1x a year |
| fastening elements | must be ordered separately |
| material | steel / stainless steel |
