Security handles ALPHA ES1 K7

Product code
MB00008915
DIECKMANN View catalogue of manufacturer
main product photo
All prices include VAT
From €35.94
From €35.94
In Stock
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Questions and answers
Durvju furnitūras kopšanas norādījumi.
Centru attālums rokturu uzlikām
Būvizstrādājumu regula ES 305/2011

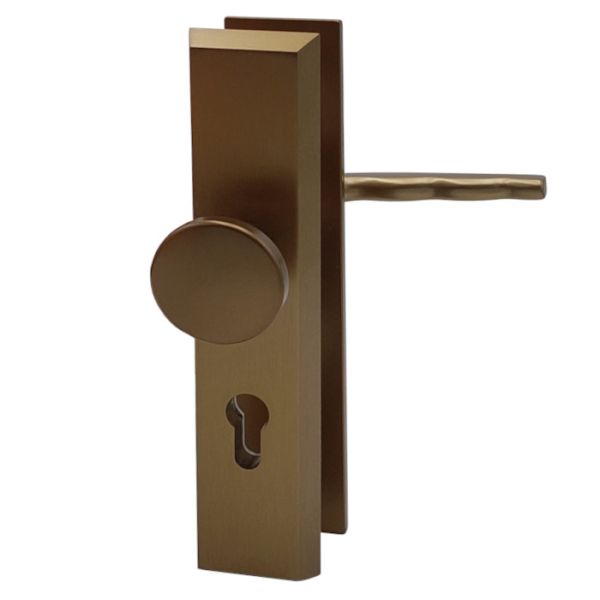

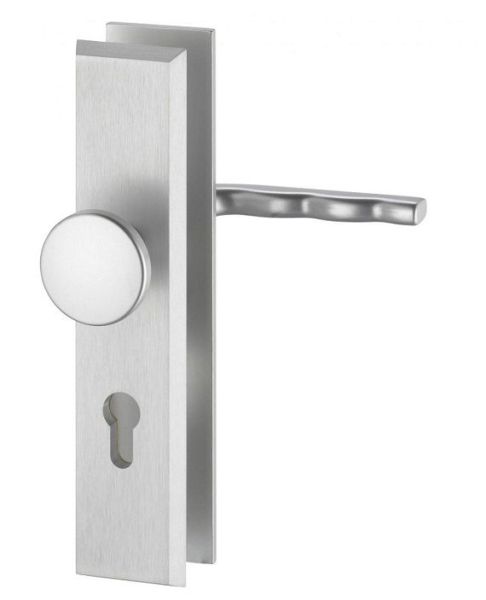

Aluminium security handles with door knob ALPHA ES1 K7
Manufacturer - DIECKMANN (Germany)

    • security backplate set with inactive door knob K7 on the outside
    • conforms with security class ES1
    • solid all-metal backplates on door exterior and interior
    • partial 2mm steel core, surface hardened, on exterior plate
    • concealed triple connecting M6 screws, accessible from inside of door
    • M6 positioning studs, drill-resistant, Ø10 mm
    • exterior backplate thickness: 15 mm
    • interior backplate thickness: 6 mm
    • centre distance: 72 / 85 / 92 mm
    • spindle: 8 / 10 mm
    • backplate length: 240 mm, width: 52 mm
    • door knob diameter: 50 mm
    • suitable for door thickness: 35-45 mm / 75-85 mm
    • material:
      • aluminium anodised, natural aluminium tone (F1)
      • bronze tone (F4)


Montāžas instrukcija
Alpha montāžas instrukcija Alpha montāžas instrukcija

Dokumentācija
Sertifikāts ES1 Sertifikāts ES1
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. 8671 ALPHA Security backplate set handle/door knob, PZ 8/72mm, door thickness 40mm, alum.F1
    8671 ALPHA Security backplate set handle/door knob, PZ 8/72mm, door thickness 40mm, alum.F1
    Code: SB00011445
    Art. Nr.: 8671/0000/01
    Price:
    From €35.94
    In Stock: 2 set
  2. 8671 ALPHA Security backplate set handle/door knob, PZ 8/72mm, door thickness 78mm, alum.F1
    8671 ALPHA Security backplate set handle/door knob, PZ 8/72mm, door thickness 78mm, alum.F1
    Code: SB00011446
    Art. Nr.: 8671/0000/01/78
    Price:
    From €35.94
    In Stock: 6 set
  3. 8671 ALPHA Security backplate set handle/door knob, PZ 8/72mm, door thickness 40mm, alum.F4
    8671 ALPHA Security backplate set handle/door knob, PZ 8/72mm, door thickness 40mm, alum.F4
    Code: SB00011448
    Art. Nr.: 8671/0000/04
    Price:
    From €39.46
    In Stock: 1 set
  4. 8671 ALPHA Security backplate set handle/door knob, PZ 8/92mm, door thickness 78mm, alum.F4
    8671 ALPHA Security backplate set handle/door knob, PZ 8/92mm, door thickness 78mm, alum.F4
    Code: SB00011452
    Art. Nr.: 8675/0000/04/VK8/TS78
    Price:
    From €39.46
    In Stock: 1 set

Additional products

  • Products
  • Price
  • In Stock
  • Quantity

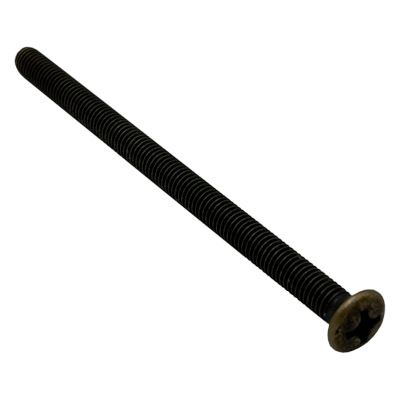

  1. Skrūves M6X100 mm, F4 tonī
    Skrūves M6X100 mm, F4 tonī
    Code: SB00011508
    Art. Nr.: 9110/0000/00
    Price:
    From €3.46
    In Stock: 21 pc.
Manufacturer DIECKMANN
material aluminium anodised
purpose for exterior doors and doors with increased intruder resistance requirements
leaf material for wooden and metal doors
construction lever handle / inactive door knob
security class ES1
cylinder guard no
fire safety not suitable for fire safety doors
door thickness 35-85 mm
compatibility standard German (DIN)
door direction universal use for DIN right and left hand doors
centre distance PZ 72 / 85 / 92 mm
backplate/rose size 52 x 240 mm
backplate/rose shape square
outer backplate thickness 15 mm
inner backplate thickness 6 mm
handle length 115 mm
handle square spindle size 8 / 10 mm
distance from rose surface to outer edge of handle 57 mm
door knob shape round
fastening type connecting screws, accessible from inside of door
fastening elements included in set
