Door closer GEZE TS 4000 S with standard link arm - ARRANGEMENT 1

Product code
TS4000S-SH1
GEZE
main product photo
From €131.89

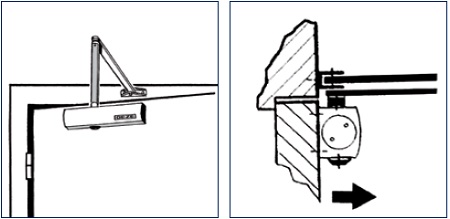

ARRANGEMENT 1 - Installation door pull side, door closer body on the leaf.

Mounting accessories and auxiliary tools are listed in the section 'Additional products' of our Online shop.
Reset selection
Door closer body TS 4000 S   €123.66
Standard link arm for door closer TS 2000/4000 V BC   €8.23

Price as configured €131.89

kit
The selected product is currently out of stock.
Questions and answers
Ražotāju BIM dati

Door closer GEZE TS 4000 S with standard link arm
ARRANGEMENT 1

Manufacturer - GEZE (Germany)


  • door closer body with standard link arm and delayed closing function
  • suitable for interior and exterior doors with single leaf
  • door leaf width up to 1400 mm
  • installed door pull side - closer body screwed onto leaf
  • suitable for use in fire and smoke safety doors
  • suitable for both left and right hand doors opening either inwards or outwards
  • max opening angle 180°
  • hydraulic latching action which accelerates the door shortly before it is closed
  • visual closing force display for easy control of the setting
  • adjustable closing force - sizes 1 - 6 according to EN 1154 A:
    • size '1'- for leaf width up to 750 mm
    • size '2'- for leaf width up to 850 mm
    • size '3'- for leaf width up to 950 mm
    • size '4'- for leaf width up to 1100 mm
    • size '5'- for leaf width up to 1250 mm
    • size '6'- for leaf width up to 1400 mm
  • adjustable closing speed
  • latching action adjustable via link arm
  • all functions can be set from front (except for latching action)
  • integrated back check function
  • safety valve in opening and closing directions
  • adjustable delayed closing function to set closing speed up to opening angle of 80°
  • closer body size: 287 x 46 x 60 mm
  • colours: silver tone, black RAL9005, white RAL9016, dark brown

Auxiliary tools

Closer body mounting plate

silver tone
Product code: SB00004574		 white RAL9016
Product code: SB00004598		 dark brown
Product code: SB00004578		 black RAL9005
Product code: SB00004159

All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Visma Quote
    Door closer body TS 4000 S without link arm, black RAL9005
    Door closer body TS 4000 S without link arm, black RAL9005
    Code: SB00004253
    Art. Nr.: 119562
    Price:
    From €175.45
    In Stock: 0 pc.
  2. Door closer body TS-4000 S without link arm, dark brown
    Door closer body TS-4000 S without link arm, dark brown
    Code: SB00004550
    Art. Nr.: 107746
    Price:
    From €175.45
    In Stock: 4 pc.
  3. Door closer body TS-4000 S without link arm, silver
    Door closer body TS-4000 S without link arm, silver
    Code: SB00004549
    Art. Nr.: 107745
    Price:
    From €123.66
    In Stock: 4 pc.
  4. Door closer body TS-4000 S without link arm, white
    Door closer body TS-4000 S without link arm, white
    Code: SB00004624
    Art. Nr.: 107747
    Price:
    From €175.45
    In Stock: 2 pc.
  5. Standard link arm for door closer 2000/4000 white
    Standard link arm for door closer 2000/4000 white
    Code: SB00004614
    Art. Nr.: 102423
    Price:
    From €8.23
    In Stock: 8 pc.
  6. Standard link arm for door closer TS-2000/4000 dark brown
    Standard link arm for door closer TS-2000/4000 dark brown
    Code: SB00004613
    Art. Nr.: 102422
    Price:
    From €8.23
    In Stock: 0 pc.
  7. Standard link arm for door closer TS 2000/4000, black RAL9005
    Standard link arm for door closer TS 2000/4000, black RAL9005
    Code: SB00004219
    Art. Nr.: 109544
    Price:
    From €8.23
    In Stock: 225 pc.
  8. Standard link arm for door closer TS-2000/4000 silver coloured
    Standard link arm for door closer TS-2000/4000 silver coloured
    Code: SB00004612
    Art. Nr.: 102421
    Price:
    From €8.23
    In Stock: 324 pc.

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. Mounting plate for door closer TS 4000/5000, black RAL9005
    Mounting plate for door closer TS 4000/5000, black RAL9005
    Code: SB00004159
    Art. Nr.: 076508
    Price:
    From €7.74
    In Stock: 1 pc.
  2. Mounting plate for door closer 4000/5000, silver
    Mounting plate for door closer 4000/5000, silver
    Code: SB00004574
    Art. Nr.: 049185
    Price:
    From €4.36
    In Stock: 33 pc.
  3. Mounting plate for door closer 4000/5000, dark brown
    Mounting plate for door closer 4000/5000, dark brown
    Code: SB00004578
    Art. Nr.: 052351
    Price:
    From €6.96
    In Stock: 12 pc.
  4. Mounting plate for door closer 4000/5000, white
    Mounting plate for door closer 4000/5000, white
    Code: SB00004598
    Art. Nr.: 068627
    Price:
    From €6.96
    In Stock: 124 pc.
Manufacturer GEZE
closer operating type hydraulic closer
closer type with a link arm
application for hinged doors
installation type hinge side / profile on leaf
fire safety suitable for fire safety doors
closing force size 2-6 according to EN 1154
closing force adjustment continuous control with valve
closing force adjustment position from front
back check hydraulically adjustable
maximum single leaf width up to 1400 mm
latching action adjustable with arm link
hold open no
doorstop no
delayed closing function integrated, adjustable
