Door closer GEZE TS 5000 L Soft Close with guide rail T-STOP BG TS 5000/3000 and mounting bracket - ARRANGEMENT BG-SL

Product code
TS5000-L-SC-SL-TS
GEZE
main product photo
From €324.89
ARRANGEMENT BG-SL - Installation door push side, the closer body on the leaf, and the guide rail installed onto the bottom of the frame with a mounting bracket.

Mounting accessories and auxiliary tools are listed in the section 'Additional products' of our Online shop.
Reset selection
Door closer body GEZE TS 5000L Soft Close   €234.14
Guide rail T-STOP BG TS 5000/3000   €58.69
Mounting bracket for guide rail T-STOP TS-3000/5000   €32.07

Price as configured €324.89

kit
The selected product is currently out of stock.
Fast delivery
We cooperate with OMNIVA, VENIPAK and LATVIJAS PASTS
Consultations
with industry profesionals
Book a consultation
Secure payments
Online banking, credit cards, REVOLUT
Service
Manufacturers' catalogues, product documentation etc.

Door closer GEZE TS 5000 L Soft Close with guide rail T-STOP BG TS 5000/3000 and lintel casing bracket

Manufacturer - GEZE (Germany)


  • top-mounted door closer body with latching action and brake-to-stop function
  • suitable for interior and exterior doors with single leaf
  • door leaf width up to 1400 mm
  • installed door push side - closer body installed onto the bottom of the frame with a lintel casing bracket
  • suitable for both left and right hand doors opening either inwards or outwards
  • front adjusted thermo-constant closing speed
  • front adjusted hydraulic latching action speed, thermo-constant closing speed and soft close mechanism
  • adjustable closing force - sizes 2 - 6 according to EN 1154 A
    • size '2'- for leaf width up to  850 mm
    • size '3'- for leaf width up to  950 mm
    • size '4'- for leaf width up to  1100 mm
    • size '5'- for leaf width up to  1250 mm
    • size '6'- for leaf width up to  1400 mm
  • max opening angle: 180º
  • visual closing force display for easy control of the setting
  • all functions can be adjusted from the front
  • certified for use in fire and smoke safety doors on the condition that closing size is set on 3 or higher
  • closer body size: 287 x 47 x 60 mm
  • colours: silver, white RAL9016, dark brown, black RAL9005


T-STOP guide rail
  • extra durable guide rail with screwed-in, non-removable controller
  • resistant against lateral wind pressure against exterior doors
  • suitable for heavy usage indoors
  • integrated opening restrictor
  • size (length x width x height): 452.5 x 33 x 30 mm


Both guide rails have identical fastening with 2 screws and identical mounting points against the door closer profile. Thus, the rails are easily interchangeable without changing the fastening.

Additional components required for installation
  • Lintel casing bracket
    Closer profile can be mounted onto the bottom of either the frame or the door opening.
silver tone / T-STOP guide rail
SB00022455		 white RAL9016 / T-STOP guide rail
SB00022456		 dark brown / T-STOP guide rail
SB00022457		 black RAL9005 / T-STOP guide rail
SB00022458



Iespējamie papildpiederumi
  • Closer profile mounting plate 287 x 60 x 5 mm
    Closer can be secured on the surface in more places other than the 3 screws on the closer's profile.
silver tone
Product code: SB00004574
 white RAL9016
Product code: SB00004598
 dark brown
Product code: SB00004578
 black RAL9005
Product code: SB00004159


  • Integrated mechanical Hold-Open device
    Holds the door in an open position. Only for use in doors without fire safety requirements!
    Product code: SB00004600
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Visma Quote
    Door closer body TS 5000L SOFT CLOSE, white RAL9016
    Door closer body TS 5000L SOFT CLOSE, white RAL9016
    Code: SB00023889
    Art. Nr.: 191211
    Price:
    From €234.14
    In Stock: 0 pc.
  2. Visma Quote
    Door closer body TS 5000L SOFT CLOSE, black RAL9005
    Door closer body TS 5000L SOFT CLOSE, black RAL9005
    Code: SB00023890
    Art. Nr.: 191210 black RAL9005
    Price:
    From €234.14
    In Stock: 0 pc.
  3. Visma Quote
    Door closer body TS 5000L SOFT CLOSE, silver tone
    Door closer body TS 5000L SOFT CLOSE, silver tone
    Code: SB00023780
    Art. Nr.: 191210 sudraba
    Price:
    From €234.14
    In Stock: 1 pc.
  4. Visma Quote
    Door closer body TS 5000L SOFT CLOSE, dark brown
    Door closer body TS 5000L SOFT CLOSE, dark brown
    Code: SB00023888
    Art. Nr.: 191210 bronze
    Price:
    From €234.14
    In Stock: 0 pc.

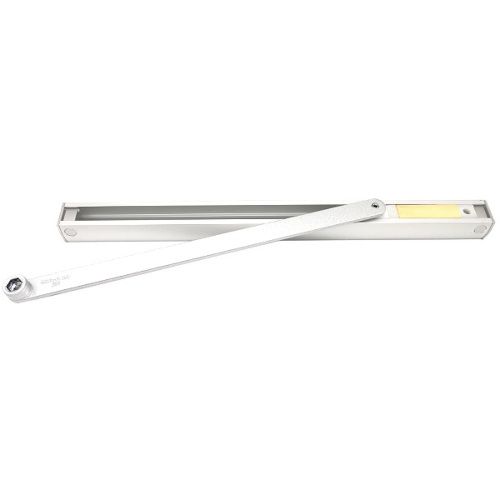

  5. Guide rail for door closer T-STOP BG TS 5000/3000, white RAL9016
    Guide rail for door closer T-STOP BG TS 5000/3000, white RAL9016
    Code: SB00004256
    Art. Nr.: 108482
    Price:
    From €58.69
    In Stock: 1 pc.
  6. Guide rail for door closer T-STOP BG TS 5000/3000, black RAL9005
    Guide rail for door closer T-STOP BG TS 5000/3000, black RAL9005
    Code: SB00022136
    Art. Nr.: 102368 RAL 9005
    Price:
    From €58.69
    In Stock: 0 pc.

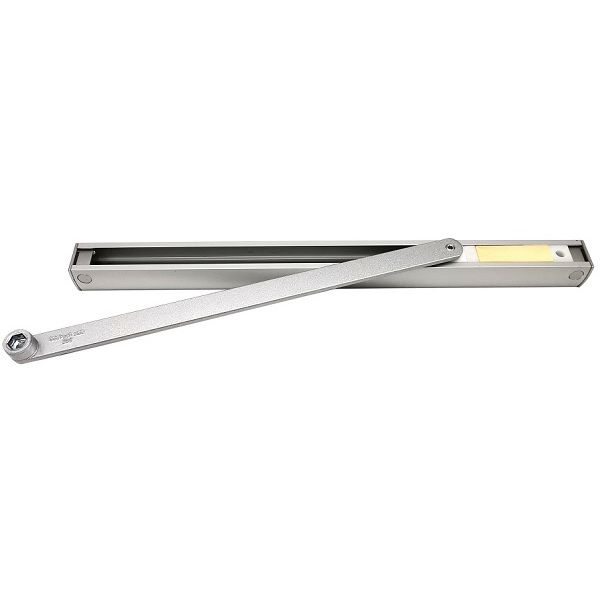

  7. Guide rail for door closer T-STOP BG TS 5000/3000, silver tone
    Guide rail for door closer T-STOP BG TS 5000/3000, silver tone
    Code: SB00004216
    Art. Nr.: 102366
    Price:
    From €58.69
    In Stock: 4 pc.

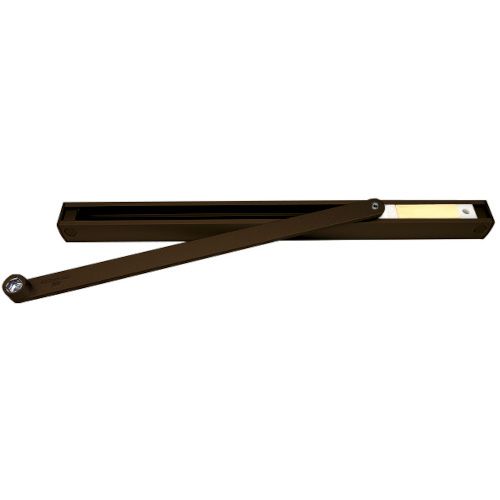

  8. Guide rail for door closer T-STOP BG TS 5000/3000, dark brown
    Guide rail for door closer T-STOP BG TS 5000/3000, dark brown
    Code: SB00004217
    Art. Nr.: 102368 Dark Bronze
    Price:
    From €58.69
    In Stock: 3 pc.

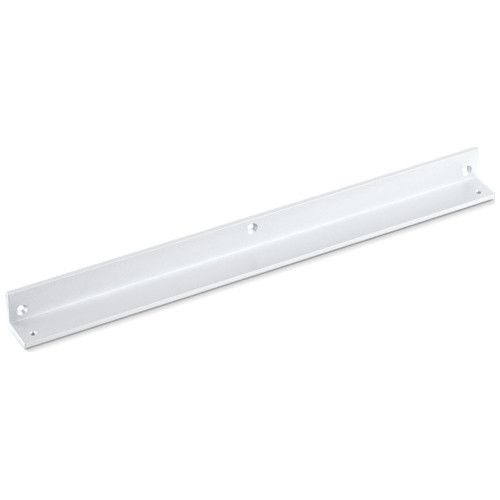

  9. Mounting bracket for guide rail T-STOP BG, white RAL9016
    Mounting bracket for guide rail T-STOP BG, white RAL9016
    Code: SB00022456
    Art. Nr.: 115007 white RAL 9016
    Price:
    From €32.07
    In Stock: 1 pc.
  10. Mounting bracket for guide rail T-STOP BG, dark brown
    Mounting bracket for guide rail T-STOP BG, dark brown
    Code: SB00022457
    Art. Nr.: 115007 dark Bronze
    Price:
    From €32.07
    In Stock: 3 pc.

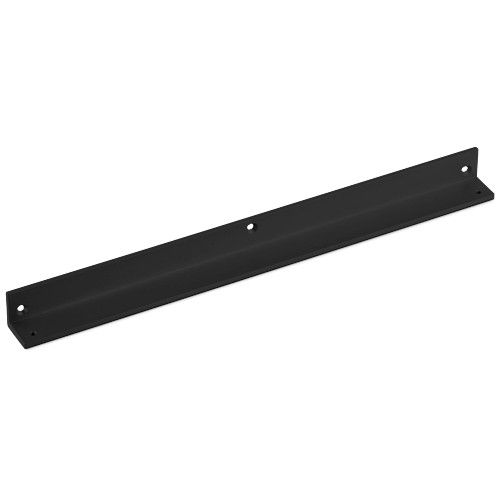

  11. Mounting bracket for guide rail T-STOP BG, black RAL9005
    Mounting bracket for guide rail T-STOP BG, black RAL9005
    Code: SB00022458
    Art. Nr.: 115007 black RAL 9005
    Price:
    From €32.07
    In Stock: 0 pc.

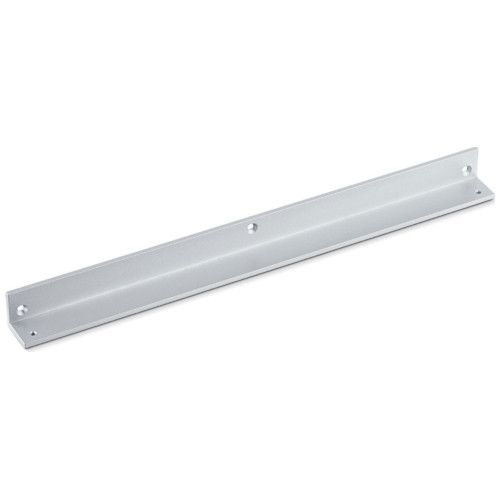

  12. Mounting bracket for guide rail T-STOP BG, silver
    Mounting bracket for guide rail T-STOP BG, silver
    Code: SB00022455
    Art. Nr.: 115006
    Price:
    From €32.67
    In Stock: 4 pc.

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. Mounting plate for door closer 4000/5000, silver
    Mounting plate for door closer 4000/5000, silver
    Code: SB00004574
    Art. Nr.: 049185
    Price:
    From €4.36
    In Stock: 33 pc.
  2. Mounting plate for door closer 4000/5000, white
    Mounting plate for door closer 4000/5000, white
    Code: SB00004598
    Art. Nr.: 068627
    Price:
    From €6.96
    In Stock: 124 pc.
  3. Mounting plate for door closer 4000/5000, dark brown
    Mounting plate for door closer 4000/5000, dark brown
    Code: SB00004578
    Art. Nr.: 052351
    Price:
    From €6.96
    In Stock: 12 pc.
  4. Mounting plate for door closer TS 4000/5000, black RAL9005
    Mounting plate for door closer TS 4000/5000, black RAL9005
    Code: SB00004159
    Art. Nr.: 076508
    Price:
    From €7.74
    In Stock: 1 pc.
  5. Guide rail locking unit for GEZE standard door closers - compatible with T-stop guide rail / Boxer 20.7 mm guide rail
    Guide rail locking unit for GEZE standard door closers - compatible with T-stop guide rail / Boxer 20.7 mm guide rail
    Code: SB00004600
    Art. Nr.: 071924
    Price:
    From €15.73
    In Stock: 18 pc.
Manufacturer GEZE
Series TS 5000
closer operating type hydraulic closer
closer type with a track
application for hinged doors
Papildu funkcijas Soft Close
installation type opposite hinge side / profile on leaf
Vērtņu skaits 1 vērtne
fire safety suitable for fire safety doors
closing force size 2-6 according to EN 1154
closing force adjustment continuous control with valve
closing force adjustment position from front
back check hydraulically adjustable
maximum single leaf width up to 1400 mm
latching action adjustable with valve
hold open built-in
doorstop built-in
