Heavy-duty hinges for non-rebated doors VX 7729/160
Product code
MB00001364
All prices include VAT
From
€53.35
From
€53.35
In Stock
Only %1 left
Heavy-duty hinges for non-rebated doors VX 7729/160
Manufacturer - SIMONSWERK (Germany)
Manufacturer - SIMONSWERK (Germany)
-
- heavy-duty hinges for non-rebated wooden doors
- suitable for wooden, steel and aluminium frames
- suitable for fire and smoke safety doors
- integrated retainer protects hinges and prevents intruders from prising the door open
- compatible with three-dimensionally adjustable receivers VARIANT VX
- internal torsion-proof pin
- concealed, maintenance-free axial-radial slide bearings
- max load capacity: 200 kg
- load capacity refers to two hinges per leaf, taking into account also load capacities of the respective combined receiver
- knuckle length: 160 mm
- knuckle Ø: 22.5 mm
- pin Ø: 10 mm
- material thickness: 3.5 mm
- screws: 5 x 50 mm
- material:
-
-
- stainless steel
- nickel-plated, matt
- bronze
- medium dark bronze
- brass-plated, polished
-

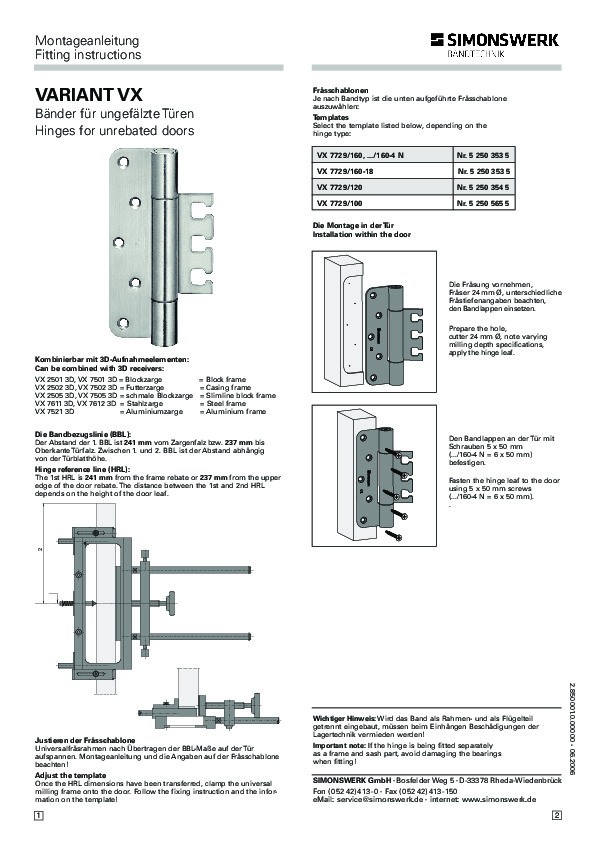

Fitting instructions
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
VX 7729/160, hinge, stainless steelCode: SB00008659Art. Nr.: 5 050880 0 04002Price:From €53.35In Stock: 1 pc.
Additional products
- Products
- Price
- In Stock
- Quantity
-
VX 2501 3D N hinge receiver, galvanizedCode: SB00008714Art. Nr.: 5 071260 0 01006Price:From €34.73In Stock: 8 pc.
-
VX 2560 N KK Decorative cover for hinge receiveri, 210 mm, stainless steelCode: SB00008707Art. Nr.: 5 071158 0 04006Price:From €18.14In Stock: 1 pc.
| Manufacturer | SIMONSWERK |
|---|---|
| hinge type | heavy duty hinge |
| hinge shape | rounded |
| door construction | for non-rebated doors |
| door direction | universal use for DIN right and left hand doors |
| class as per EN 1935 | class 4 |
| fire safety | suitable for fire and smoke safety doors |
| bundling options | may be combined with VX 3D receivers |
| material thickness | 3.5 mm |
| leaf material | wood |
| load capacity | very high |
| leaf maximum weight | 200 kg |
| suitable for aluminium frames | suitable |
| suitable for steel frames | suitable |
| suitable for industrial frames | suitable using additional mounting parts |
| suitable for timber frames | suitable |
| anti-corrosion resistance | certified according to EN 1935 - depending on finish |
| adjustment | not adjustable |
| groove for leaf seal | no |
| anti-intruder protection | no |
| cutter diameter | 24 mm |
| knuckle length | 160 mm |
| knuckle diameter | 22.5 mm |
| collar ring | 30 mm |
| spindle diameter | 10 mm |
| height | 160 mm |
| maintenance | not required (self-lubricating bearings) |
| installation template | available for sale or rent |
| fastening elements | must be ordered separately |
| material | steel / stainless steel |
