Pašaizverošas slēptās eņģes AN107 3D C60

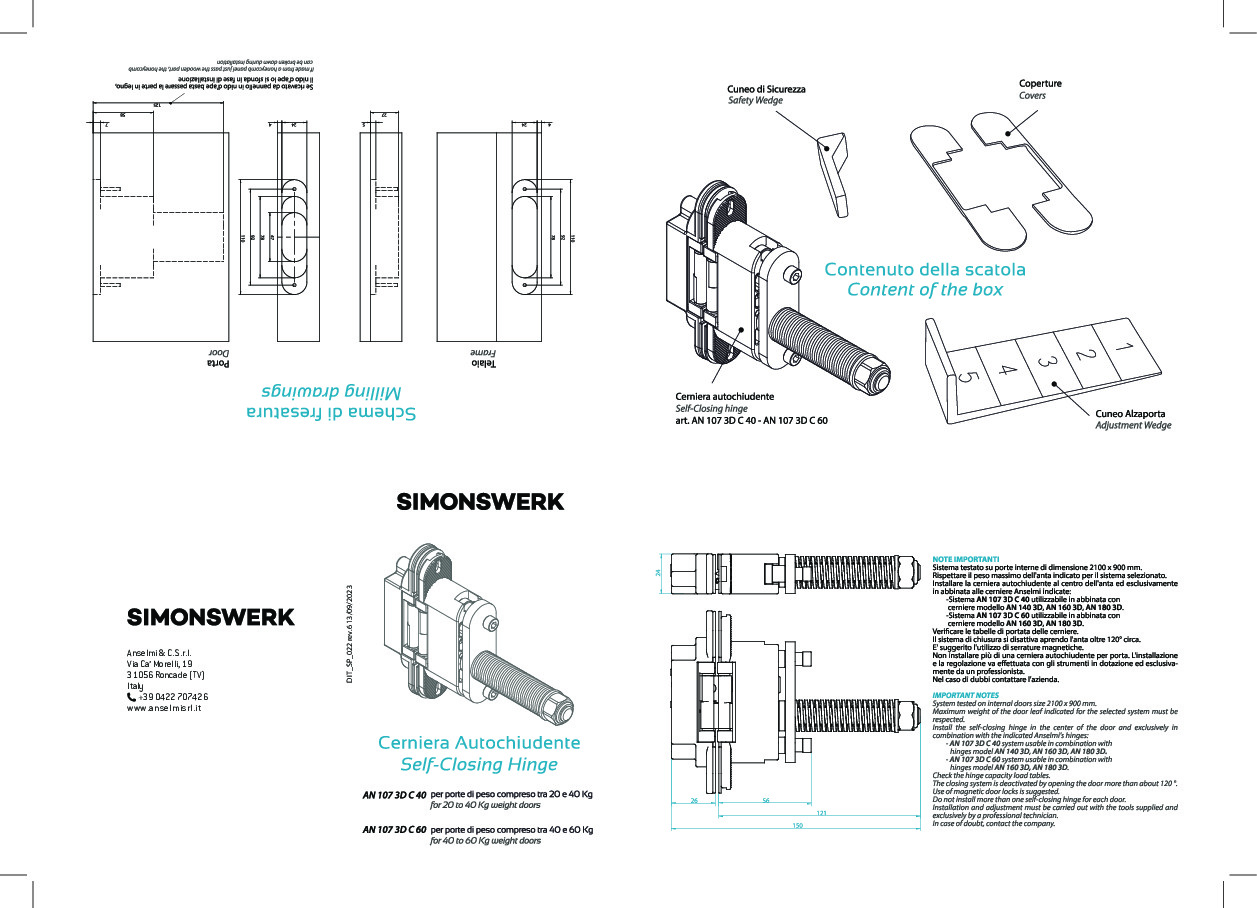

Self-closing concealed hinges ANSELMI AN107 3D C60

Manufacturer - SIMONSWERK GROUP / ANSELMI (Italy)

• completely concealed hinge system for residential doors up to 60 kg
• with integrated closing function
• for timber and aluminium frames
• for unrebated wooden doors
• 3D adjustable
• adjustable closing power when door is installed
• suitable for both left and right hand doors
• maintenance-free bearings
• the closing power up to 40-60 kg refers to the use of one self-closing hinge per door leaf (900 x 2100 mm)
• opening angle: 180º
• height: 110 mm
• width (door part / frame part): 24 / 24 mm
• cutter diameter: 16 mm
• the self-closing hinge has to be installed at half the height of the door leaf, approximately at the same height of the lock
• the self-closing hinge has to be used only in combination with hinges AN 160 3D, AN 180 3D
• recommended combination with magnetic lock
• materil: ZAMAK / steel
• standard finishes:
  • satin chrome (AN 014)
  • black (AN 018)
• finishes available on request:
  • antique bronze (AN 035)
  • polished brass (AN 037)
  • satin nickel (AN 044)
  • aluminium chrome (AN 036)
  • polished chrome (AN 039)
  • traffic white RAL 9016 (AN 049)
