Concealed hinges for interior doors with recessed frame facings TECTUS TE 311 3D FVZ

Product code
MB00001070
SIMONSWERK View catalogue of manufacturer
main product photo
All prices include VAT
From €51.85
From €51.85
In Stock
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Questions and answers
Durvju vērtņu virzieni saskaņā ar DIN 107
Eņģu klasifikācija saskaņā ar EN 1935
Eņģu slodzes izturība
Durvju profilu veidi
Būvizstrādājumu regula ES 305/2011
Concealed hinges for interior doors with recessed frame facings TECTUS TE 311 3D FVZ
Manufacturer - SIMONSWERK (Germany)

    • suitable for wooden and metal frames
    • suitable for non-rebated wooden doors
    • recessed frame facings up to 12 mm
    • 3-dimensional adjustability: side (+/- 3 mm), depth (+/- 1 mm) and height (+/- 2,5 mm)
    • suitable for both left and right hand doors
    • opening angle: 180°
    • height: 125 mm
    • leaf part width: 32 mm (TE 311 3D FVZ 40) / 36 mm (TE 311 3D FVZ 44)
    • frame part width: 24/28 mm
    • milling Ø: 24 mm
    • max load: 60 kg (leaf 1000 x 2000 mm with 2 hinges; distance between 1st and 2nd hinge reference line: 1435 mm)
    • may be adjusted without removing the door from its frame
    • maintenance-free bearings
    • centred installation possible in doors of thickness 40 and 44 mm
    • material aluminium anodised:
      • natural aluminium (F1) tone
      • black tone

Montāžas instrukcija
Montāžas apraksts un frēzējuma aprēķins TE 311 Montāžas apraksts un frēzējuma aprēķins TE 311
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

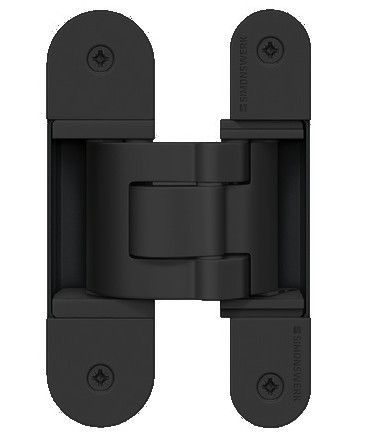

  1. TECTUS TE 311 3D FVZ40 concealed hinge, black
    TECTUS TE 311 3D FVZ40 concealed hinge, black
    Code: SB00008892
    Art. Nr.: 5 400568 0 10702
    Price:
    From €83.84
    In Stock: 9 pc.

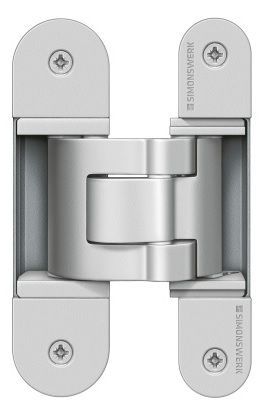

  2. TECTUS TE 311 3D FVZ40 concealed hinge, F1
    TECTUS TE 311 3D FVZ40 concealed hinge, F1
    Code: SB00008893
    Art. Nr.: 5 400568 0 12402
    Price:
    From €51.85
    In Stock: 57 pc.

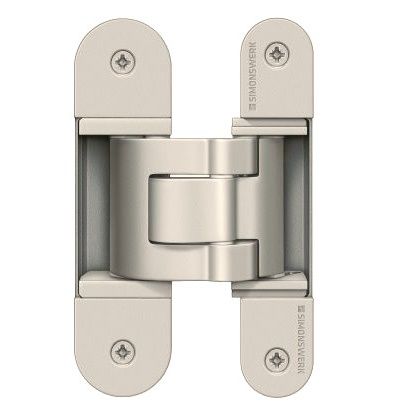

  3. TECTUS TE 311 3D FVZ40 nosegtā eņģe, F2
    TECTUS TE 311 3D FVZ40 nosegtā eņģe, F2
    Code: SB00008894
    Art. Nr.: 5 400568 0 12502
    Price:
    From €52.95
    In Stock: 0 pc.
Manufacturer SIMONSWERK
hinge type concealed hinge
hinge shape rounded
door construction for non-rebated doors
door direction universal use for DIN right and left hand doors
class as per EN 1935 class 2
fire safety suitable for fire and smoke safety doors
purpose for functional doors with cladding
leaf material wood
load capacity middle
leaf maximum weight 60 kg
suitable for aluminium frames not suitable
suitable for steel frames suitable using additional mounting parts
suitable for industrial frames suitable
suitable for timber frames suitable
anti-corrosion resistance certified according to EN 1935 - depending on finish
adjustment adjustable
adjustment type may be adjusted without removing door from its frame
groove for leaf seal no
anti-intruder protection yes, protected hinge design
cutter diameter 24 mm
collar ring 30 mm
height 125 mm
maintenance not required (self-lubricating bearings)
installation template available for sale or rent
fastening elements included in set
material ZAMAK
