Concealed hinges for heavy-duty doors with cladding TECTUS TE 640 3D A8

Description Technical details Reviews

Quantity:

pc.

The selected product is currently out of stock.

Description

Concealed hinges for heavy-duty doors with cladding TECTUS TE 640 3D A8
Manufacturer - SIMONSWERK (Germany)

- suitable for high-performance and heavy-duty doors with cladding up to 8 mm
- suitable for wooden frame, casing frame and aluminium/metal frame
- 3-dimensional adjustability: side (+/- 3 mm), depth (+/- 1 mm) and height (+/- 3 mm)
- opening angle: 180º
- height: 240 mm
- width: 32/37 mm
- milling Ø: 24 mm
- max load: 160 kg (leaf 1000 x 2000 mm with 2 hinges; distance between 1st and 2nd hinge reference line: 1435 mm)
- may be adjusted without removing the door from its frame
- maintenance-free bearings
- corrosion resistance depending on surface finish: classification in accordance with DIN EN 1670:2007
- UL certified
- material:

- - plastic coating F1 tone
  - plastic coating F2 tone
  - black tone
  - white tone
  - bronze tone
  - stainless steel tone
  - brass-plated, polished
  - nickel-plated, polished
  - nickel-plated, matt

Installation
Please, note the specifics for each type of door frame:

wood frame: no additional installation equipment required

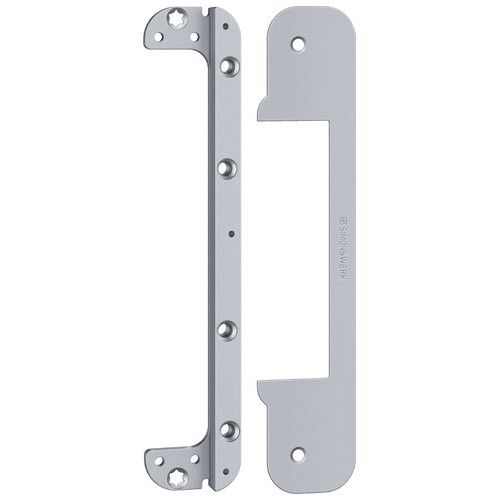

casing frame: fixing plate TECTUS TE 640 3D FZ/1 must be used for installation
metal frame: receiver TECTUS TE 640 3D A8_SZ must be used for installation
aluminium frame: the manufacturer's original fixing plate must be used for installation

Additional products

Mounting bracket TE 626/640 3D A8 BW/1 for heavy-duty non-rebated doors with two-sided cladding up to 20 mm

load capacity: 120 kg (2 hinges)
finish: F1 natural

Mounting instructions

E-shop

Show only in-stock products

All prices include VAT

Products
Price
In Stock
Quantity

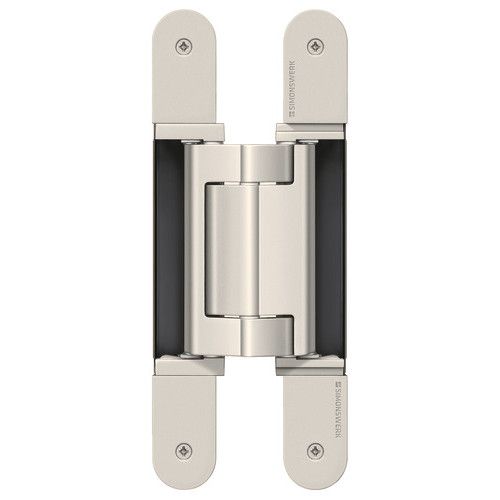

TECTUS TE 640 3D A8 concealed hinge F2
Code: SB00008924

Art. Nr.: 5 400617 0 12502

Price:

From €165.14

In Stock: 0 pc.

Quantity:

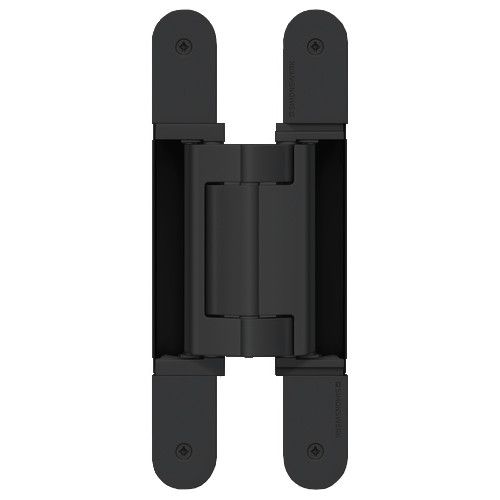

TECTUS TE 640 3D A8 slēptā eņģe, melna RAL9005
Code: SB00008963

Art. Nr.: 5 400694 0 10702

Price:

From €176.55

In Stock: 0 pc.

Quantity:

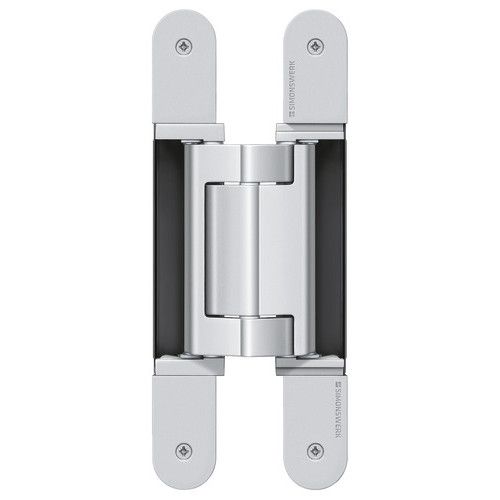

TECTUS TE640 3D A8 concealed hinge F1
Code: SB00008923

Art. Nr.: 5 400694 0 12402

Price:

From €165.14

In Stock: 7 pc.

Quantity:

Additional products

Products
Price
In Stock
Quantity

TECTUS TE 640 3D A8 BW/1 mounting bracket, galvanized
Code: SB00022488

Art. Nr.: 5 401952 0 12405

Price:

From €52.60

In Stock: 0 pc.

Quantity:

Technical details

Manufacturer	SIMONSWERK
hinge type	concealed hinge
hinge shape	rounded
door construction	for non-rebated doors
door direction	universal use for DIN right and left hand doors
class as per EN 1935	class 4
fire safety	suitable for fire and smoke safety doors
purpose	for functional doors with cladding
leaf material	wood
load capacity	very high
leaf maximum weight	160 kg
suitable for aluminium frames	suitable using additional mounting parts
suitable for steel frames	suitable using additional mounting parts
suitable for industrial frames	suitable using additional mounting parts
suitable for timber frames	suitable
anti-corrosion resistance	certified according to EN 1935 - depending on finish
adjustment	adjustable
adjustment type	may be adjusted without removing door from its frame
groove for leaf seal	yes
anti-intruder protection	yes
cutter diameter	24 mm
collar ring	30 mm
height	240 mm
maintenance	not required (self-lubricating bearings)
installation template	available for sale or rent
fastening elements	included in set
material	ZAMAK
Series	TECTUS
