Fireproof emergency handle on oval rose for framed doors FSB 09 1290 FS ALU
Product code
MB00009624
All prices include VAT
From
€121.34
From
€121.34
Only %1 left
Fireproof aluminium handle on oval rose for framed doors FSB 09 1290 ALU
Manufacturer - FSB (Germany)Design: Markus Michalski and Michael Schmidt
The 1290 model (product collection FSB 1289) boasts up-to-the-minute, pared down styling. Its elegant, finely nuanced flow of lines at the front exudes a clarity that is a joy to behold. The user’s hand is caressed by well-proportioned curvature on the inside of the handle that makes for sumptuous, ergonomically “soft” gripping.
- lever handle firmly fixed into rose, suitable for narrow framed doors
- solid steel sub-construction
- integrated spring for lock load release with active angle of 45°
- construction durability tested on 1'500'000 cycles of use
- complies with DIN 18 273 and EN 1634-1 standards for fire safety doors
- complies with EN 179 standard for emergency door equipment
- suitable for both left and right hand doors
- set with oval rose for framed doors
- concealed screws Ø M5
- rose size: 32.5 x 70 mm
- rose thickness: 14 mm
- handle length (from inner edge of rose): 140 mm
- distance from leaf surface to external surface of handle: approx. 71 mm
- spindle square: 9 mm
- material: aluminium anodised
- available finishes:
-

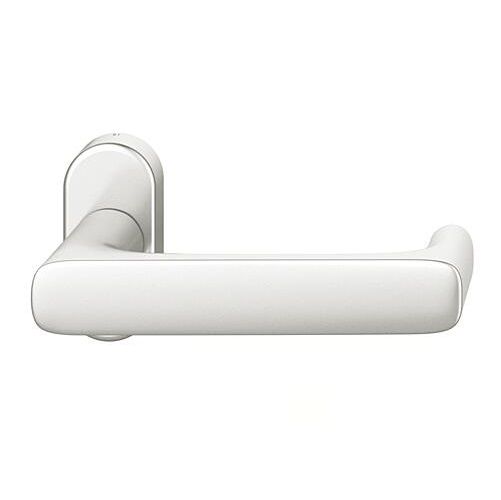

- F1 natural aluminium tone

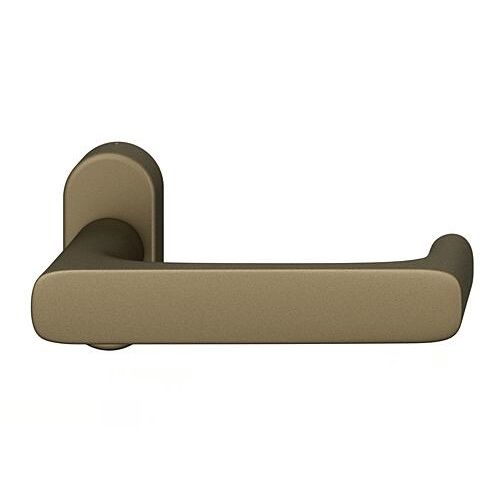

- S5 textured matt, medium dark bronze tone
- S7 textured matt, dark bronze tone

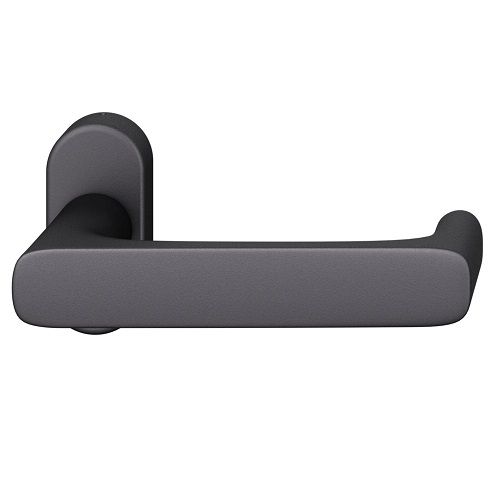

- S8 textured matt, black
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
FSB 09 1290 handle for framed fireproof emergency door on oval rose, matt black S8Code: SB00020746Art. Nr.: 0 09 1290 21263 0810Price:From €121.34In Stock: 0 pc.
-
FSB 09 1290 handle for framed fireproof emergency door on oval rose, natural aluminium F1Code: SB00023075Art. Nr.: 0 09 1290 21263 0105Price:From €121.34In Stock: 0 pc.
-
FSB 09 1290 handle for framed fireproof emergency door on oval rose, medium dark bronze S5Code: SB00023076Art. Nr.: 0 09 1290 21263 0510Price:From €157.74In Stock: 0 pc.
backplate/rose shape | oval |
---|---|
backplate/rose size | 32,5 x 70 mm |
backplate/rose thickness | 14 mm |
class as per EN 1906 | class 4 |
compatibility standard | German (DIN) |
construction | one-sided handle female part |
door direction | universal use for DIN right and left hand doors |
fastening type | concealed screw fitting |
fire safety | fire safety certified according to EN1906 |
handle construction | with stable fixed pivot axis |
handle length | 140 mm |
handle square spindle size | 9 mm |
handle spring | integrated holding spring to cushion the push and pull forces |
installation type | screw on |
leaf material | for framed doors |
load capacity | high |
Manufacturer | FSB |
material | aluminium anodised blasted |
material: sub-construction | solid steel |
position of door handle | not offset |
purpose | for interior doors / for exterior doors |
Series | FSB 1290 |
set | without key roses |
suitable for emergency exits | complies with 179 - emergency door equipment |
