Multi-point lock with electromechanical drive KFV GENIUS 2.2

Product code
MB00009207
KFV View catalogue of manufacturer

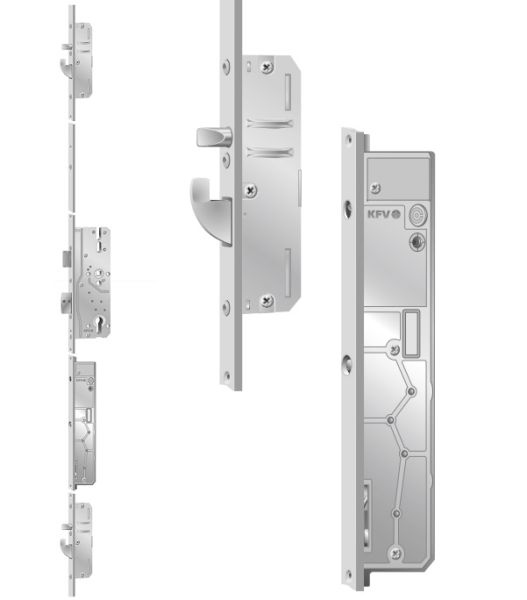

main product photo
All prices include VAT
From €831.49
From €831.49
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Questions and answers
Durvju vērtņu virzieni saskaņā ar DIN 107
Slēgšanas veidi. Slēdzenes un rokturu garnitūras.
Durvju furnitūras kopšanas norādījumi.
Ražotāju BIM dati
Slēdzeņu lietošanas un kopšanas norādījumi

Multi-point lock with electromechanical drive KFV GENIUS 2.2

Manufacturer - KFV

    • 5-point mechatronic multi-point lock with access control and motorised locking and unlocking
    • combines the security of a mechanical multi-point lock with the comfort of modern electronic solutions
    • integrated electronic control system and powerful motor that ensures tight closing of the door as well as fast and quiet door locking and release
    • compatible with various electronic access control systems
    • ideal for individual solutions in modern residential buildings and business or industrial buildings with advanced technological requirements
    • motorised lock ensures optimal seal considerably improving heat insulation, reducing draughts, and cutting costs in heating bills
    • cone-shaped locking hooks, brushed steel elements and saw-proof deadbolt ensure a high level of security and protection against break-ins
    • lock is compatible with standard door hardware
    • spindle depth D options: no 35 mm līdz 80 mm
    • spindle square: 8 / 10 mm
    • centre distance: 72 / 92 mm
    • face plate options: flat face plate 16 / 20 / 24 mm, U-shape face plate 6 x 24 x 6 mm / 10 x 30 x 10 mm
    • rear spindle depth: 23,5 mm (for wooden doors) / 17,5 mm (for PVC and metal doors)
    • available finishes: stainless steel (face plate)
GENIUS 2.2 versions
    • GENIUS EA: release from outside via access control system, release from inside via pushbutton
    • GENIUS EB: release from outside via access control system, release from inside via pushbutton. Compatible with an external clock timer or external systems such as a motorised door drive or an alarm system
    • GENIUS CA: all functions of the GENIUS EA with added comfort function: a quick release via the lever handle on the inside of the door at any time, including during a power cut
    • GENIUS CB: all functions of the GENIUS EB with added comfort function: a quick release via the lever handle on the inside of the door at any time, including during a power cut

GENIUS 2.2 advantages
    • highly comfortable in use: a quick and silent electronic closing and opening of all locking components, including the bolts of the main lock
    • always on with continuous monitoring of the locking status
    • the tight seal reduces energy costs and prevents the door from warping
    • easy to combine with SIEGENIA access control systems: biometric access, code panel, transponder, and other systems
    • manual locking and unlocking with the cylinder is always available, including during a power cut
    • locking status indicator and control with an in-built colour LED
    • integrated Si-Bus interface with high-quality signal transmission

Installation advantages
    • GENIUS 2.2 motor
      • the same sizes and frame components as standard KFV multi-point locks
      • only one additional milling for the GENIUS motor
      • identical milling sizes for the main lock and auxiliary casings
      • small flush width of 16 mm and depth of 52 mm minimum
      • easy installation with optional Plug & Play solution
    • Plug & Play solution
      • standardised installation kits for various fittings
      • modular composition with standardised connectors and cables, easy to supplement
      • quick and precise installation reduces the risk of error with easy-to-use Plug & Play accessories
      • electrician's services are not required - all electrical connections are easy to install and protected against reversed polarity
      • long-term product safety is ensured with system updates and extensions

Functions
Function  GENIUS EA  GENIUS CA  GENIUS EB GENIUS CB
 Installation width from 16 mm - face plate X X X X
 Installation depth from 35 mm - spindle depth X X X X
 Compatible with standard hardware X X X X
 Openings for round rose installation with a spindle depth of 45 mm X   X
 Electromechanical locking X X X X
 Manual locking and unlocking with cylinder even during a power cut X X X X
Gear in the main lock for forceful manual deadbolt and latch operation X X X X
 Continuous locking monitoring system (incomplete deadbolt throw is indicated acoustically) X X X X
 Manual change of mode via LED button:
 Day function: the electromechanical back stay extension is deactivated, the door still stays closed by the latch
 Night function: the electromechanical back stay extension is activated every time the door goes into the frame		 X X X X
Electromechanical opening via potential-free contact (push-button) of the external access control systems
 (e.g. transponder, wireless, fingerprint, Bluetooth, etc.)		 X X X X
 Automatic mode change via external clock timer     X X
 Combination with external systems
 (e.g. motorised door drive or alarm system)		     X
(with additional accessories)		 X
(with additional accessories)
 Comfort function - door opening via the lever handle on the inside of the door   X   X
 SI-BUS interface for connection with SIEGENIA access control systems X X X X

Standard sizes for wooden and PVC doors
Cutter type A
Total length (mm)		 B
Distance from handle centre to lower part centre (mm)		 C
Distance from handle centre to upper part centre (mm)		 F
Distance from handle centre to motor centre
 (mm)		 G
Distance from handle centre to bottom (mm)		 I
Max face plate shortening from top (mm)		 K
Max face plate shortening from bottom (mm)		  Area of use

 Leaf rebate (mm)
 B001  2170  760  730  380  1020  290  130  for standard doors,
 handle height 1020 mm		 1881 - 2170

Standard sizes or metal doors
Cutter type A
Total length
 (mm)
 B
Distance from handle centre to lower part centre (mm)		 C
Distance from handle centre to upper part centre (mm)		 F
Distance from handle centre to motor centre (mm)		 G
Distance from handle centre to bottom (mm)		 I
Max face plate shortening from top (mm)		 K
Max face plate shortening from bottom (mm)		 Area of use

Leaf rebate (mm)
 K001  1817  760  730  380  892  -  -  Face plate shortened  1945
 B001  2170  760  730  380  892  -  - Face plate shortened 1882 - 2170

Model variant for wooden exterior doors in apartments
Cutter type A
Total length (mm)		 B
Distance from handle centre to lower part centre (mm)		 C
Distance from handle centre to upper part centre (mm)		 F
Distance from handle centre to motor centre (mm)		 G
Distance from handle centre to bottom
 (mm)		 I
Max face plate shortening from top (mm)		 K
Max face plate shortening from bottom (mm)		 Area of use

Leaf rebate (mm)
 K007  1847  822,5  730  380  970  -  -  Face plate
rounded		 1882 - 2170

Other size options for wooden and PVC doors
Cutter type A
Total length (mm)		 B
Distance from handle centre to lower part centre (mm)		 C
Distance from handle centre to upper part centre (mm)		 F
Distance from handle centre to motor centre (mm)		 G
Distance from handle centre to bottom
 (mm)		 I
Max face plate shortening from top (mm)		 K
Max face plate shortening from bottom (mm)		 Area of use

Leaf rebate (mm)
 B003 2400 760 980 380 1020 270 130 high doors,
 handle height  1020 mm		 2171 - 2400
 B298 2170 760 605 380 1020 415 130 low doors,
handle height 1020 mm		 1755 - 1880
 B002 2170 760 730 380 1050 260 160 standard doors,
handle height 1050 mm		 1882 - 2170
 B166  1855  760  730  380  952  -  -  exterior doors for apartments,
face plate
rounded		 1882 - 2170

Assembly and operation instructions
GENIUS 2.2 assembly instructions GENIUS 2.2 assembly instructions
GENIUS 2.2 operating instructions GENIUS 2.2 operating instructions
Product catalogue of DRIVE comfort systems GENIUS 2.2 and A-opener Product catalogue of DRIVE comfort systems GENIUS 2.2 and A-opener
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Visma Quote
    GENIUS 2.2 Multi-point lock, type CB, 55/92/8 mm, B001, faceplate stainless steel 20mm
    GENIUS 2.2 Multi-point lock, type CB, 55/92/8 mm, B001, faceplate stainless steel 20mm
    Code: SB00004075
    Art. Nr.: 3800188
    Price:
    From €1,521.82
    In Stock: 0 pc.
  2. Visma Quote
    GENIUS 2.2 Multi-point lock, type EA, 55/92/8 mm, B001, faceplate stainless steel 20mm
    GENIUS 2.2 Multi-point lock, type EA, 55/92/8 mm, B001, faceplate stainless steel 20mm
    Code: SB00004076
    Art. Nr.: 3800197
    Price:
    From €831.49
    In Stock: 0 pc.

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. Cable ZEM FZ-KA, Type B, with a plug connection, length 4 m, hinge side, to combine with a type F cable
    Cable ZEM FZ-KA, Type B, with a plug connection, length 4 m, hinge side, to combine with a type F cable
    Code: SB00003456
    Art. Nr.: 3308723
    Price:
    From €80.88
    In Stock: 2 pc.
  2. Visma Quote
    FZ-MB-01 Round magnet bush for drillinginto a locking rail or into a timber profile
    FZ-MB-01 Round magnet bush for drillinginto a locking rail or into a timber profile
    Code: SB00003574
    Art. Nr.: 3381675
    Price:
    From €5.25
    In Stock: 0 pc.
  3. Visma Quote
    FZ-MB-02/X Oval magnet bush for installation in a round bolt strike plate 23xx
    FZ-MB-02/X Oval magnet bush for installation in a round bolt strike plate 23xx
    Code: SB00003579
    Art. Nr.: 3384792
    Price:
    From €5.25
    In Stock: 0 pc.
  4. Visma Quote

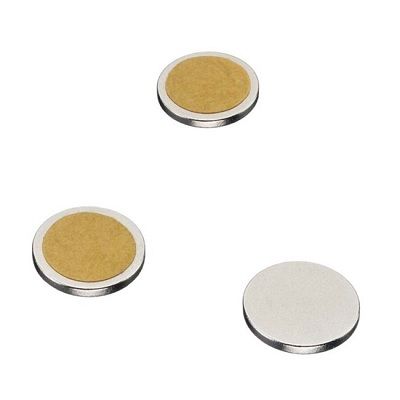

    ZEM FZ-MB-04/X 3 magnet set
    ZEM FZ-MB-04/X 3 magnet set
    Code: SB00003604
    Art. Nr.: 3405940
    Price:
    From €13.29
    In Stock: 0 pc.
  5. Power transformer to 230 V - 24 V DC
    Power transformer to 230 V - 24 V DC
    Code: SB00004025
    Art. Nr.: 3509884
    [4.1] 3509884
    Price:
    From €113.18
    In Stock: 3 pc.
  6. Cable connector EA281
    Cable connector EA281
    Code: SB00009274
    Art. Nr.: EA281
    Price:
    From €37.70
    In Stock: 20 pc.
  7. Cable ZEM FZ-KA-0F-4.0, Type F, with a plug connection, length 4 m, sash side, to combine with a type B cable
    Cable ZEM FZ-KA-0F-4.0, Type F, with a plug connection, length 4 m, sash side, to combine with a type B cable
    Code: SB00003573
    Art. Nr.: 3381527
    Price:
    From €80.88
    In Stock: 2 pc.
Manufacturer KFV
lock type multi-point lock for hinged doors
lock operation electromechanical - for doors with access control
lock operation type access control systems
latch type hooks/bolts
number of locking points 5
installation type mortise
lock cutter type B001 / B003 / B298 etc.
purpose for exterior doors
leaf material for wooden, metal and framed doors
load capacity high
class as per EN 12209 (DIN 18251) class 3 according to DIN 18251-3 / class 6 according to EN 12400
suitable for emergency exits option complying with EN 179 and EN 1125 available on request
fire safety option for fire safety doors available on request
compatibility standard German (DIN)
possible spindle depth 35 - 80 mm
door direction universal use for DIN right and left hand doors
locking elements polished nickel-coated
lock case galvanised closed
locking function PZ - with profile cylinder hole
centre distance PZ 72 / 92 mm
sound insulation yes
handle square spindle size 8 / 10 mm
face plate shape square or U-profile
face plate width 16 / 20 / 24 mm
face plate length 2170-2400 mm
face plate finish nerūsējošais tērauds
