Composite security set for framed exterior doors KRONOS ES1 2000ZA ALU
Product code
MB00001513
All prices include VAT
From
€74.32
From
€74.32
In Stock
Only %1 left

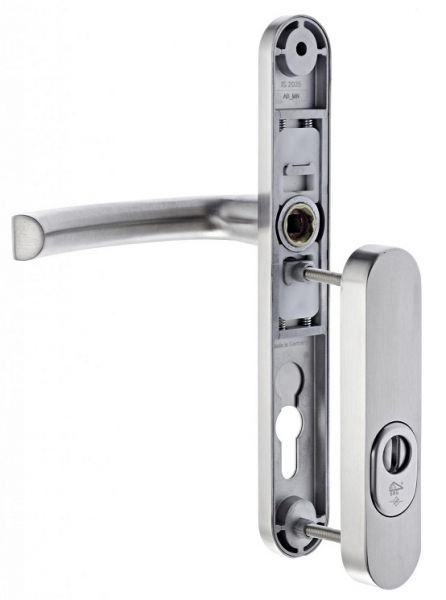

Composite aluminium security set with cylinder guard for framed exterior doors KRONOS ES1 2000ZA
Manufacturer - DIECKMANN (Germany)- securitu set for framed doors with long inner backplate and security rose outside
- corresponds with DIN 18257 security class ES1 (EN 1906 grade 3)
- fixed handle on interior backplate
- stable backplate connection with concealed M6 screw
- cylinder guard for securing cylinder
- interior handle with integrated spring
- suitable for both left and right hand doors
- exterior backplate - solid metal
- high-pressure die-cast interior backplate with handle KRONOS
- metal supporting lugs in rose and interior backplate Ø10
- backplate length: 245 mm, width: 36 mm
- backplate thickness: 10 mm
- centre distance: 92 mm
- spindle: 8 mm
- handle length: 148 mm
- exterior rose size: 146,5 x 35 mm
- exterior backplate thickness:
- standard set suitable for door thickness: 73-77 mm
- cylinder projection 12-17 mm
- material aluminium anodised: natural aluminium tone (F1)
Montāžas instrukcija
Dokumentācija
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
Composite rose/backplate security set KRONOS ES1 2000ZA with cylinder guard, PZ/92mm, aluminium natural tone F1Code: SB00011264Art. Nr.: 2007/7258/01Price:From €74.32In Stock: 0 pc.
| Manufacturer | DIECKMANN |
|---|---|
| Series | KRONOS 2000 |
| material | aluminium anodised |
| purpose | for exterior doors and doors with increased intruder resistance requirements |
| leaf material | for wooden and framed doors |
| construction | lever handle / rose (can be combined with a pull handle) |
| security class | ES1 |
| cylinder guard | yes |
| fire safety | not suitable for fire safety doors |
| door thickness | 73-77 mm |
| compatibility standard | German (DIN) |
| door direction | universal use for DIN right and left hand doors |
| locking function | PZ - with profile cylinder hole |
| centre distance PZ | 92 mm |
| backplate/rose size | uzlika 36 x 245 mm; rozete 35 x 146.5 mm |
| backplate/rose shape | round |
| outer backplate thickness | 15 mm |
| handle length | 148 mm |
| handle square spindle size | 8 mm |
| distance from rose surface to outer edge of handle | 59 mm |
| fastening type | connecting screws, accessible from inside of door |
| fastening elements | included in set |
