Door closer GEZE TS 2000 NV BC with HOLD-OPEN link arm and lintel casing bracket - ARRANGEMENT KL Hold-Open

Product code
TS2000-NVBC-SH-KL-HO
GEZE
main product photo
From €98.01
ARRANGEMENT KL Hold-Open - Installation door push side, door closer body installed on the bottom of the frame with a lintel casing bracket.

Mounting accessories and auxiliary tools are listed in the section 'Additional products' of our E-shop.
Reset selection

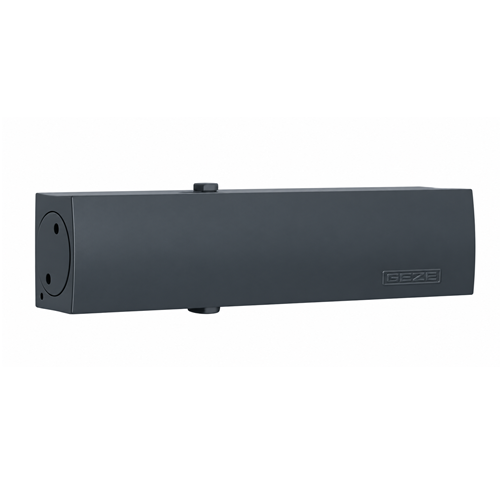

Door closer body TS 2000 NV BC   €38.12

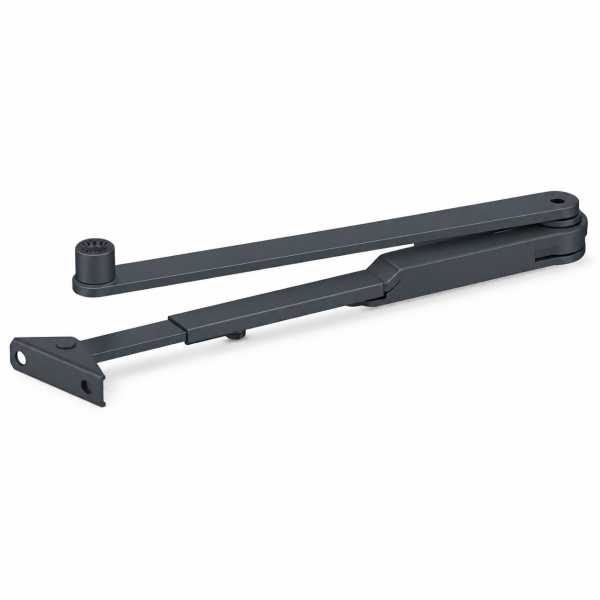

Hold-open link arm for door closer TS 2000/4000 V BC   €38.12

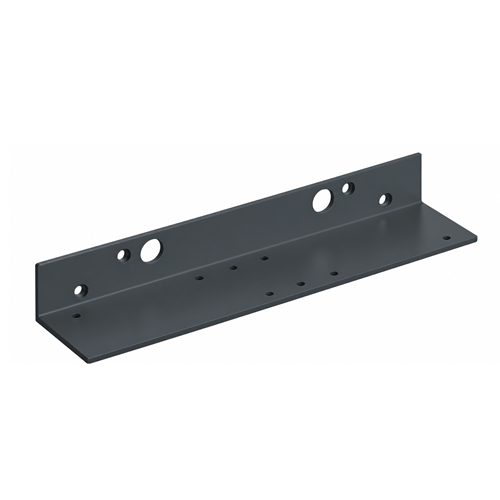

Lintel casing bracket for door closer TS 2000 NV   €21.78

Price as configured €98.01

kit
The selected product is currently out of stock.
Questions and answers
Ražotāju BIM dati

Door closer GEZE TS 2000 NV BC with hold-open link arm and lintel casing bracket
ARRANGEMENT KL Hold-Open

Manufacturer - GEZE (Germany)


  • top-mounted door closer body with hold-open link arm
  • integrated back check that cannot be deactivated
  • suitable for interior and exterior doors with single leaf
  • door leaf width up to 1100 mm
  • installed door push side - closer body screwed on the bottom of the frame with a lintel casing bracket
  • suitable for both left and right hand doors opening either inwards or outwards
  • functions can be set from front (force adjustment from side)
  • adjustable closing speed
  • integrated back check slows the closer down in a set angle - it becomes more difficult to open in order to prevent the door from swinging open at too wide an angle
  • back check activates at ~80° opening angle, the angle is not adjustable
  • hydraulic latching action, adjustable via valve
  • closing force can be adjusted via valve, fitting to sizes 2-4 according to EN 1154
  • max opening angle: 180º
  • mechanical hold-open arm with on/off switch
  • adjustable hold-open angle: 70º - 150º
  • not suitable for fire-protection doors
  • closer body size: 226 x 48 x 60 mm
  • colours: silver, black RAL9005, white RAL9016, dark brown

Additional components required for installation
  • Lintel casing bracket
    Closer body can be screwed on the bottom of the door frame
silver tone
Product code: SB00022215		 white RAL9016
Product code: SB00022226		 dark brown
Product code: SB00022216		 black RAL9005
Product code: SB00022227

All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Door closer body TS 2000 NV BC, white
    Door closer body TS 2000 NV BC, white
    Code: SB00022143
    Art. Nr.: 124946
    Price:
    From €38.12
    In Stock: 24 pc.
  2. Visma Quote
    Door closer body TS 2000 NV BC, black RAL9005
    Door closer body TS 2000 NV BC, black RAL9005
    Code: SB00022145
    Art. Nr.: 205332
    Price:
    From €39.93
    In Stock: 0 pc.
  3. Door closer body TS 2000 NV BC, silver tone
    Door closer body TS 2000 NV BC, silver tone
    Code: SB00020803
    Art. Nr.: 124944
    Price:
    From €38.12
    In Stock: 35 pc.
  4. Door closer body TS 2000 NV BC, dark brown
    Door closer body TS 2000 NV BC, dark brown
    Code: SB00022144
    Art. Nr.: 124945
    Price:
    From €38.12
    In Stock: 15 pc.
  5. Hold Open arm engageable/disengageable for door closer 2000/4000, white
    Hold Open arm engageable/disengageable for door closer 2000/4000, white
    Code: SB00004222
    Art. Nr.: 102447
    Price:
    From €38.12
    In Stock: 1 pc.
  6. Hold Open arm engageable/disengageable for door closer 2000/4000, dark brown
    Hold Open arm engageable/disengageable for door closer 2000/4000, dark brown
    Code: SB00004221
    Art. Nr.: 102446
    Price:
    From €38.12
    In Stock: 4 pc.
  7. Hold Open arm engageable/disengageable for door closer 2000/4000, black
    Hold Open arm engageable/disengageable for door closer 2000/4000, black
    Code: SB00004224
    Art. Nr.: 109545
    Price:
    From €38.12
    In Stock: 0 pc.
  8. Hold Open arm engageable/disengageable for door closer 2000/4000, silver
    Hold Open arm engageable/disengageable for door closer 2000/4000, silver
    Code: SB00004220
    Art. Nr.: 102445
    Price:
    From €38.12
    In Stock: 5 pc.
  9. Visma Quote
    Lintel casing bracket for door closer TS 2000 NV, white RAL9016
    Lintel casing bracket for door closer TS 2000 NV, white RAL9016
    Code: SB00022226
    Art. Nr.: 127433 RAL9016
    Price:
    From €21.78
    In Stock: 0 pc.
  10. Lintel casing bracket for door closer TS 2000 NV, dark brown
    Lintel casing bracket for door closer TS 2000 NV, dark brown
    Code: SB00022216
    Art. Nr.: 127433 BROWN
    Price:
    From €21.78
    In Stock: 2 pc.
  11. Visma Quote
    Lintel casing bracket for door closer TS 2000 NV, black RAL9005
    Lintel casing bracket for door closer TS 2000 NV, black RAL9005
    Code: SB00022227
    Art. Nr.: 127433 RAL9005
    Price:
    From €21.78
    In Stock: 0 pc.
  12. Lintel casing bracket for door closer TS 2000 NV, silver tone
    Lintel casing bracket for door closer TS 2000 NV, silver tone
    Code: SB00022215
    Art. Nr.: 127432
    Price:
    From €21.78
    In Stock: 11 pc.

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. Visma Quote
    Mounting plate for door closer TS 2000 NV, galvanized
    Mounting plate for door closer TS 2000 NV, galvanized
    Code: SB00022195
    Art. Nr.: 126234
    Price:
    From €5.81
    In Stock: 70 pc.
Manufacturer GEZE
Series TS 2000
closer operating type hydraulic closer
closer type with a link arm
link arm type Hold-Open WITH on/off switch
application for hinged doors
installation type to be screwed on door leaf/frame
installation type opposite hinge side / profile on frame
Vērtņu skaits 1 vērtne
fire safety not suitable for fire safety doors
closing force size 2-4 according to EN 1154
closing force adjustment continuous control with valve
closing force adjustment position from the side
back check hydraulically adjustable
maximum single leaf width up to 1100 mm
latching action adjustable with valve
hold open yes, with fixing arm
doorstop no
