Door handle CARRE Top-LS
Product code
MB00001089
All prices include VAT
From
€21.95
From
€21.95
In Stock
Only %1 left

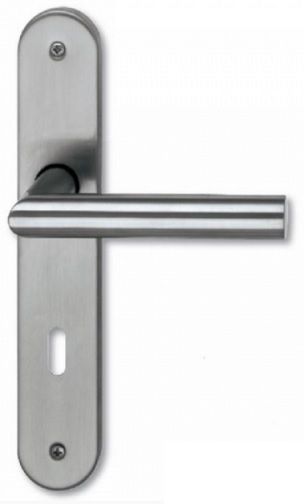

Stainless steel door handle CARRE Top-LS
Manufacturer - Südmetall (Germanty)
Manufacturer - Südmetall (Germanty)
-
- high-quality metal sub-construction
- integrated spring to cushion the push and pull forces
- set suitable for residential buildings, corresponds to load capacity grade 2
- keyhole options: PZ, BB, WC
- centre distance: PZ - 72 mm, BB - 72 mm, WC - 78 mm
- spindle square: 8 mm
- handle length: 135 mm
- backplate size: 235 x 40 mm
- door thickness: 38 - 42 mm
- handle diameter: approx. 20 mm
- material:
-
-
- stainless steel
-
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
Handle/backplate set. PZ/72, stainless steelCode: SB00004671Art. Nr.: 28.01.5810Price:From €21.95In Stock: 12 set -
Handle/backplate set. WC/78, stainless steelCode: SB00004672Art. Nr.: 28.01.5840Price:From €34.87In Stock: 6 set
| Manufacturer | SÜDMETALL |
|---|---|
| material | stainless steel |
| purpose | for interior doors |
| leaf material | for wooden and metal doors |
| construction | lever handles on both sides |
| set | long backplates |
| load capacity | low |
| class as per EN 1906 | class 2 |
| fire safety | not suitable for fire safety doors |
| handle spring | integrated holding spring to cushion the push and pull forces |
| material: sub-construction | metal |
| door direction | universal use for DIN right and left hand doors |
| compatibility standard | German (DIN) |
| door thickness | 38-42 mm |
| locking function | PZ / BB / WC |
| centre distance PZ | 72 mm |
| centre distance BB | 72 mm |
| centre distance WC | 78 mm |
| handle length | 135 mm |
| handle diameter | 20 mm |
| handle square spindle size | 8 mm |
| backplate/rose shape | round |
| backplate/rose size | 235 x 40 mm |
| distance from leaf surface to outer edge of handle | 68 mm |
| installation type | screw on |
| fastening type | visible screws |
