Door handle FSB 1015 1735 B
Product code
MB00008646
All prices include VAT
From
€275.88
From
€275.88
Only %1 left
Bronze door handle with round roses FSB 1015 1735
Manufacturer - FSB (Germany)
It is believed that the basic shape of the FSB 1015 model was conceived in the 1930s by a company called Wehag. The bronze version of this handle by Johannes Potente has a very clear handle shape and a new appeal in its aesthetics.
Manufacturer - FSB (Germany)
It is believed that the basic shape of the FSB 1015 model was conceived in the 1930s by a company called Wehag. The bronze version of this handle by Johannes Potente has a very clear handle shape and a new appeal in its aesthetics.
-
- handle set with round roses
- made for interior doors, adaptable for exterior doors
- innovative, sturdy FSB ASL® construction with concealed handle guide ring
- corresponds to grade 4 in use and durability according to EN 1906, suitable for heavy-duty doors and recommended for public buildings
- construction durability tested on 1'000'000 cycles of use
- integrated spring for lock load release with active angle of 45°
- stainless steel reinforced sub-construction with stable fixed pivot axis
- handle length: 122 mm
- spindle: 8 mm
- standard set suitable for door thickness 39-58 mm
- possible to order sets for door thickness 29-98 mm
- may be used with short or long rectangular backplates
- matching knob can be added to all rose and backplate sets
- keyhole options: PZ, BB, WC, BAC
- material: bronze (B)
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

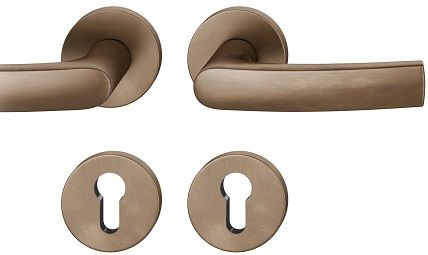

Handle set on round roses PZ, dark bronzeCode: SB00000892Art. Nr.: 0 12 1015 01310 7625Price:From €275.88In Stock: 0 set
| Manufacturer | FSB |
|---|---|
| material | bronze |
| purpose | for interior doors / for exterior doors |
| leaf material | for wooden and metal doors |
| construction | lever handles on both sides |
| set | split roses |
| load capacity | high |
| class as per EN 1906 | class 4 |
| fire safety | related fireproof model available |
| suitable for emergency exits | related model available, complies with EN 179 requirements |
| handle construction | ASL construction with stable fixed pivot axis |
| handle spring | integrated holding spring to cushion the push and pull forces |
| material: sub-construction | reinforced with stainless steel |
| door direction | universal use for DIN right and left hand doors |
| compatibility standard | German (DIN) |
| door thickness | 39-58 mm (adaptable 29-38 mm and 59-98 mm) |
| locking function | PZ / BB / WC / BAC |
| handle length | 122 mm |
| handle square spindle size | 8 mm |
| backplate/rose shape | round |
| backplate/rose size | Ø55 mm |
| backplate/rose thickness | 7 mm |
| installation type | screw on |
| fastening type | concealed screw fitting |
| centring lug diameter | 9 mm |
