Door handle INDIA 3103 K7 (Zeuss)
Product code
MB00008726
All prices include VAT
From
€45.91
From
€45.91
In Stock
Only %1 left

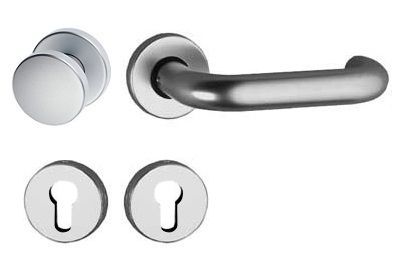

Stainless steel door handle with inactive door knob INDIA 3103 (Zeuss)
Manufacturer - DIECKMANN (Germany)
Manufacturer - DIECKMANN (Germany)
-
- durable rose sub-construction suitable for heavy-duty doors
- turnable stainless steel handle firmly fixed into the plastic base rose with a fixation ring
- integrated spring to cushion the push and pull forces
- handle guide made of self-lubricating plastic
- base rose with fixed supporting lugs for metric screws M5 x 30 mm
- roses: Ø 55 mm
- fixed supporting lugs: Ø 8 mm
- additional flush screw in handle for highest level of resistance
- keyhole options: PZ
- handle length: 140 mm
- handle spindle: 8 mm
- corresponds to grade 3 in use and durability according to EN 1906, suitable for medium heavy-duty to heavy-duty doors and can be used for public buildings
- certified by the North Rhine-Westphalia building product certification body (MPA NRW)
- material:
-
-
- stainless steel
-
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
INDIA 3103 (Zeus) handle set with doorknob PZ, st.steelCode: SB00011220Art. Nr.: 3103/0786/00Price:From €45.91In Stock: 9 kit
| Manufacturer | DIECKMANN |
|---|---|
| material | stainless steel |
| purpose | for interior doors |
| leaf material | for wooden and metal doors |
| construction | lever handle / inactive door knob |
| set | split roses |
| load capacity | high |
| class as per EN 1906 | class 3 |
| fire safety | not suitable for fire safety doors |
| handle construction | with stable fixed pivot axis |
| handle spring | integrated holding spring to cushion the push and pull forces |
| material: sub-construction | plastic |
| door direction | universal use for DIN right and left hand doors |
| compatibility standard | German (DIN) |
| door thickness | 38-58 mm (WC 38-48 mm) |
| locking function | PZ - with profile cylinder hole |
| handle length | 142 mm |
| handle square spindle size | 8 mm |
| backplate/rose shape | round |
| backplate/rose size | Ø55 mm |
| backplate/rose thickness | 8 mm |
| distance from leaf surface to outer edge of handle | 68 mm |
| door knob shape | round |
| door knob size | Ø50 mm |
| installation type | screw on |
| fastening type | covered |
| centring lug diameter | 7 mm |
| fastening elements | included in set |
