Multi-point lock with round bolts KFV AS2300 PZ/92
Product code
MB00000391
All prices include VAT
From
€92.26
€131.81
From
€92.26
€131.81
Only %1 left
May be substituted with BS2300 lock. Milling parameters are identical.

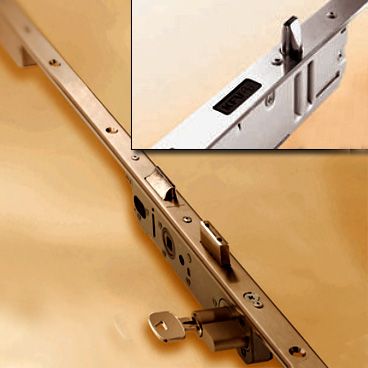

Multi-point lock with round bolts KFV AS2300 PZ/92
Manufacturer - KFV-
- multi-point lock with 3 locking points
- all locking components are operated by key
- suitable for both left and right hand doors
- anti-intruder protection with multiple bolts
- compatible with standard door hardware
- standardised routing template
- main lock compatible with profile cylinder and has 2 auxiliary locks on either side, with round steel bolts: Ø11mm
- spindle depth D: AS2300 - 35 mm, 40 mm, 45 mm, 50 mm, 55 mm, 60 mm, 65 mm, 70 mm, 80 mm 100 mm
- centre distance: 92 mm
- key-retractable latch, double throw bolt projection: 20 mm (for D size 25 and 30 mm - bolt projection 10 or 15 mm respectively)
- main lock with lined holes for screws up to M6 - for fixing backplate into its place
- handle spindle square hole: 8 mm, 10 mm
- all locking components are bright nickel-plated, all lock cases - galvanised and closed
- main lock case height: 210 mm, case thickness: 16 mm;
- distance from the cylinder centre to the back of the casing: 17,5 mm (if D is 35-50 mm) or 23,5 mm (if D is 55-100 mm)
- available finishes: stainless steel (face plate), light galvanised (face plate)
Security features
-
- hooked bolts prevent intruders from prising the door open and secure high back-pressure protection
- tempered steel elements notably improve lock durability
- main lock deadbolt is secured against sawing and thus hinders break-in attempts
- corresponds with DIN V 18103 (ET1, ET2, ET3) standards for doors with anti-intruder protection
Advantages
-
- high security with round steel bolts
- door tightening ensures an optimal seal to prevent draughts
- the tight seal provides sound and heat insulation
- smooth latch-lever mechanism is easy to use
- the lock retains its perfect functionality even after prolonged and intensive use
- the patented technology guarantees easy and accurate fitting
Areas of use
-
- for residential front doors, for basement doors and back doors
- for apartment doors
- for extra high interior doors
- and for other areas where high security and protection against warping is required
Milling sizes:
| Cutter type | A Total length (mm) |
B Distance from handle centre to lower part centre (mm) |
C Distance from handle centre to upper part centre (mm) |
G Distance from handle centre to bottom (mm) |
I Max face plate shortening from top (mm) |
K Max face plate shortening from bottom (mm) |
| B001 | 2170 | 760 | 730 | 1020 | 290 | 130 |
| B003* | 2400 | 760 | 980 | 1020 | 270 | 130 |
| B298 | 2170 | 760 | 605 | 1020 | 415 | 130 |
Face plate types:
| Model | Face plate type | Size (mm) |
| AS2300 F16 | flat | 16 x 3* |
| AS2300 F20 | flat | 20 x 3* |
| AS2300 F24 | flat | 24 x 3* |
| AS2300 P6/22 | U-shape | 6 x 22 x 6 x 2 |
| AS2300 P6/24 | U-shape | 6 x 24 x 6 x 2 |
| AS2300 P8/22 | U-shape | 8 x 22 x 8 x 2 (stainless steel) |
| AS2300 P8/24 | U-shape | 8 x 24 x 8 x 2 (stainless steel) |
| AS2300 P10/24 | U-shape | 10 x 24 x 10 x 2 (stainless steel) |
| AS2300 P10/30 | U-shape | 10 x 30 x 10 x 2 |
Set
Separate strike plates:
central 19-267 + upper/lower 2300-08-20-1R
central 15-530E + upper/lower 3615-530Q/31
central 19-504 V + upper/lower 2319-504V
central 19-503 V + upper/lower 3619-503V-31
central 19-512V + upper/lower 2319-512V
central SLK 881-083 A /DZM 402-00031 + upper/lower SLK 2600-267-2W/31
central 8050-752ERH
upper/lower 2330-03-20R or 2500-03-20R
Joint strike plates:
joint BD25-2-230ERQH/31 B001
joint locking rail BS60-230ERQH/31
Electric strikes:
Effeff 118E130
rolling latch module 115 B
Assembly instructions & user manual
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
Multi-point lock AS-2300-F PZ with roll, 35/92-16 B001, light galvanisedCode: SB00003679Art. Nr.: 3450721Price:From €176.68In Stock: 0 pc. -
AS-2300SLF PZ16-45/92-8 B001SOFT K1, brightly galvanizedCode: SB00003920Art. Nr.: 3488040Price:From Special Price €92.26 was €131.81This price applies only to items in stock. For larger quantities price is calculated upon request.In Stock: 13 pc.
Additional products
- Products
- Price
- In Stock
- Quantity
-
8035-45-F-20/31 Face plate extension for multi-locks AS, 20x3x400 mm, light galvanizedCode: SB00003300Art. Nr.: 3119274Price:From €17.69In Stock: 4 pc.
-
ZSK 201-TR-8084/v-45 auxiliary lockCode: SB00004005Art. Nr.: 3502007Price:From €58.46In Stock: 5 pc.
-
ZSK 201-TR-8084/v-55 auxiliary lockCode: SB00004006Art. Nr.: 3502009Price:From €58.46In Stock: 5 pc.
| Manufacturer | KFV |
|---|---|
| lock type | multi-point lock for hinged doors |
| lock operation | mechanical |
| lock operation type | with key |
| latch type | bolts (round bolts) |
| number of locking points | 3 |
| installation type | mortise |
| lock cutter type | B001 / B003 / B298 |
| purpose | for exterior doors |
| leaf material | for wooden, metal and framed doors |
| load capacity | high |
| class as per EN 12209 (DIN 18251) | class 3 according to DIN 18251-3 / class 6 according to EN 12400 |
| fire safety | option for fire safety doors available on request |
| compatibility standard | German (DIN) |
| possible spindle depth | 35/40/45/50/55/60/65/70/80/100 mm |
| door direction | universal use for DIN right and left hand doors |
| locking elements | polished nickel-coated |
| lock case | galvanised closed |
| round bolt projection | 20 mm |
| round bolt diameter | 11 mm |
| locking function | PZ - with profile cylinder hole |
| centre distance PZ | 92 mm |
| latch | key-retractable (central lock) |
| bolt projection | 20 mm |
| lock bolt | double turn (central lock) |
| sound insulation | yes |
| handle square spindle size | 8 / 10 mm |
| face plate shape | square or U-profile |
| face plate width | 16 / 20 / 24 mm |
| face plate length | 2170-2400 mm |
| face plate finish | nerūsējošais tērauds / gaiši cinkota |
