Concealed hinge INVISACTA IN303
Product code
IN303
From
€30.37
was
€33.64
Select a suitable hinge finish and add matching caps in the required number.
One hinge requires 4 caps.
One hinge requires 4 caps.
Concealed hinge INVISACTA IN303
Manufacturer - OTLAV (Italy)
-
- ideal solution for modern doors
- may be leaf or frame-mounted
- suitable for non-rebated wooden doors
- 3-dimensional adjustability: side (+/- 1 mm), depth (+/- 1 mm) and height (+/- 2 mm)
- suitable for both left and right hand doors)
- maximum load capacity: 80 kg (2 hinges per leaf)
- size: 120 x 30 mm
- Ø 12 mm
- depth of the milling in the frame: 21 mm
- high level of durability, ensured by the 7 joint hinges and durable nylon receiver
- opening angle: 180°
- compatible with aluminium caps (4 pc. needed for 1 hinge)
- material metal alloy ZAMAK:
-
-
- white
- black
- bronze
- nickel-plated matt (F2)
- silver tone
- polished gold
- matt gold
-

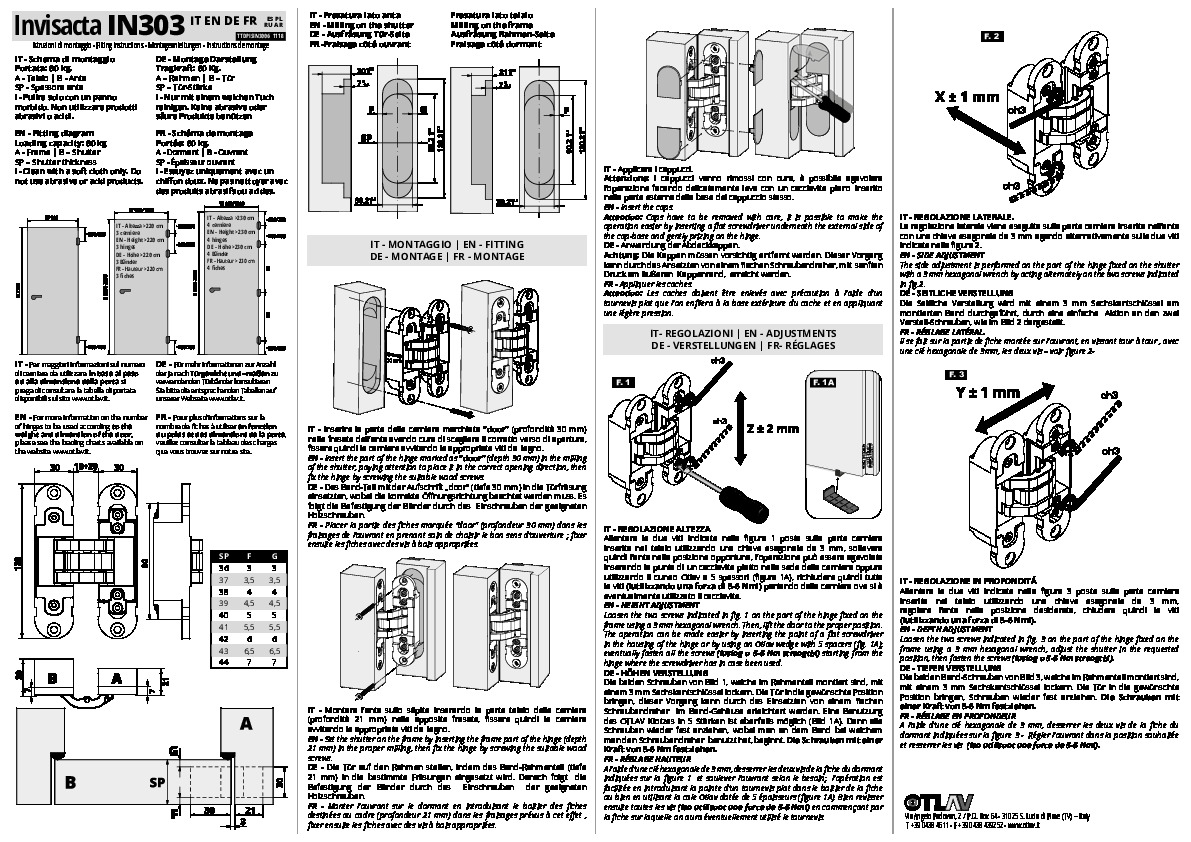

Montāžas instrukcijas un regulēšana
Tehniskā papildinformācija
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
INVISACTA IN303 3D concealed hinge 30x120 mm, satinized nickelCode: SB00025979Art. Nr.: IN303120VN02Price:From Special Price €29.40 was €32.67This price applies only to items in stock. For larger quantities price is calculated upon request.In Stock: 15 pc. -
INVISACTA 3D concealed hinge cover, matt nickel (4 pcs. required per hinge)Code: SB00018746Art. Nr.: GC300010J205Price:From €0.24In Stock: 474 pc.
Additional products
- Products
- Price
- In Stock
- Quantity
-
Mounting plate for Invisacta IN300120, zinc platedCode: SB00018809Art. Nr.: NP120040H502Price:From €2.80In Stock: 0 pc.
| Manufacturer | OTLAV |
|---|---|
| hinge type | concealed hinge |
| hinge shape | rounded |
| door construction | for non-rebated doors |
| door direction | universal use for DIN right and left hand doors |
| class as per EN 1935 | class 2 |
| fire safety | suitable for fire and smoke safety doors |
| leaf material | wood |
| load capacity | middle |
| leaf maximum weight | 80 kg |
| suitable for aluminium frames | suitable using additional mounting parts |
| suitable for steel frames | suitable using additional mounting parts |
| suitable for industrial frames | suitable using additional mounting parts |
| suitable for timber frames | suitable |
| anti-corrosion resistance | certified according to EN 1935 - depending on finish |
| adjustment | adjustable |
| groove for leaf seal | no |
| anti-intruder protection | yes, protected hinge design |
| cutter diameter | 24 mm |
| height | 120 mm |
| maintenance | not required (self-lubricating bearings) |
| installation template | available for sale or rent |
| fastening elements | must be ordered separately |
| material | ZAMAK |
