Door closer DC340 with guide rail G195

Product code
DC340-G195
ABLOY
main product photo

From €151.83

Reset selection
Door closer profile ABLOY DC340   €135.47
G195 guide rail, installed from outside, silver tone   €16.36
Code: SB00009668
Art. Nr.: DCG195----EV1
Out of stock. Estimated delivery time: 6 weeks.
Item non-returnable as it is made to the Buyer’s/Consumer's specifications

Price as configured €151.83

kit
The selected product is currently out of stock.
Questions and answers
Durvju furnitūras kopšanas norādījumi.

Door closer ABLOY DC340 with guide rail G195

Manufacturer - ABLOY


  • suitable for smoke and fire safety doors (combined with integrated concealed mounting plate)
  • suitable for both left and right hand doors
  • certified according to DIN EN 1154, sizes 1-4
  • door leaf width up to 1100 mm
  • complies with barrier-free building requirements
  • height-adjustable (2mm) guide rail G195 with concealed fastening screws
  • installation hinge side or opposite hinge side (OPP version)
  • axis continuously height adjustable up to 14 mm
  • closing speed, latching action and opening restrictor adjusted via front facing regulating valves
  • thermodynamic valves ensure that the performance is consistent and unaffected by variations in temperature
  • adjustable closing force
  • max opening angle: 160º (OPP version = 130º)
  • adjustable range for both back check and latching action
  • same size versions with and without mounting plate
  • closing speed: adjustable 180°-15°
  • latching action: adjustable 15°-0°
  • closer profile size (length x height x depth): 306 x 69 x 64,5mm
  • max door leaf weight: 80 kg
  • standard colour: silver EV1
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Visma Quote

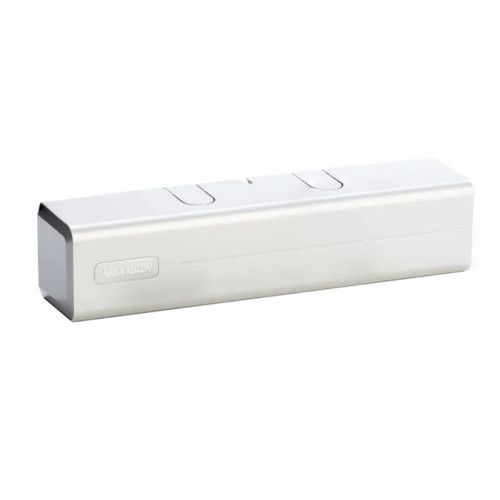

    Door closer profile ABLOY DC340, silver tone
    Door closer profile ABLOY DC340, silver tone
    Code: SB00009648
    Art. Nr.: DC240_120200
    Price:
    From €135.47
    In Stock: 0 pc.
  2. Visma Quote
    Door closer profile ABLOY DC340 OPP, silver tone
    Door closer profile ABLOY DC340 OPP, silver tone
    Code: SB00009649
    Art. Nr.: DC240_150200
    Price:
    From €140.83
    In Stock: 0 pc.
  3. Visma Quote

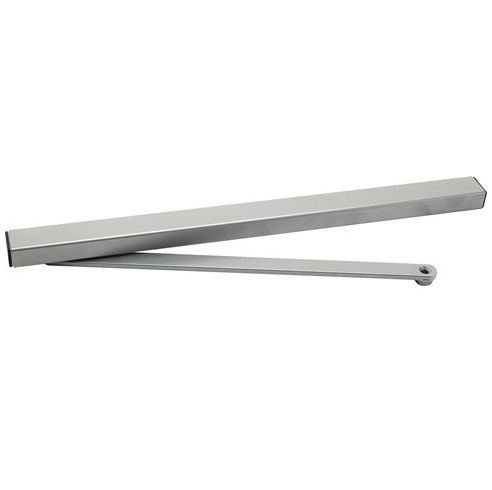

    G195 guide rail, installed from outside, silver tone
    G195 guide rail, installed from outside, silver tone
    Code: SB00009668
    Art. Nr.: DCG195----EV1
    Price:
    From €16.36
    In Stock: 0 pc.
  4. Visma Quote

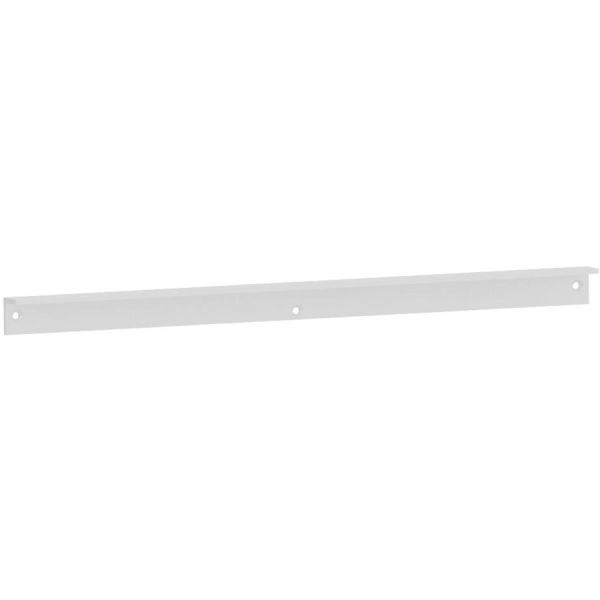

    A104 mounting bracket for guide rail, silver tone
    A104 mounting bracket for guide rail, silver tone
    Code: SB00009263
    Art. Nr.: DCA104-----EV1-
    Price:
    From €10.61
    In Stock: 0 pc.
  5. Visma Quote
    A152 HOLD-OPEN device for guide rail DC893
    A152 HOLD-OPEN device for guide rail DC893
    Code: SB00009637
    Art. Nr.: DC152_000500
    Price:
    From €17.23
    In Stock: 0 pc.
  6. Visma Quote

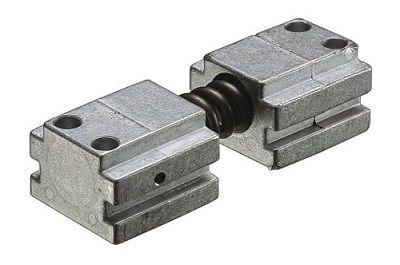

    DC153 opening restrictor for guide rail
    DC153 opening restrictor for guide rail
    Code: SB00009638
    Art. Nr.: DC153_000500
    Price:
    From €16.98
    In Stock: 0 pc.
Manufacturer ABLOY
Series DC340
closer operating type hydraulic closer
closer type with a track
track type G195
application for hinged doors
installation type to be screwed on door leaf/frame
Vērtņu skaits 1 vērtne
fire safety suitable for fire safety doors
closing force size 1-4 according to EN 1154
closing force adjustment continuous control with valve
back check hydraulically adjustable
maximum single leaf width up to 1100 mm
latching action adjustable with valve
hold open built-in
doorstop built-in
