Emergency exit door lock BMH 1028 B

Name: Emergency exit door lock BMH 1028 B
SKU: MB00000653
Price: 71.84 EUR
Availability: InStock

Product code

MB00000653

View catalogue of manufacturer

Skip to the end of the images gallery

Skip to the beginning of the images gallery

All prices include VAT

From €71.84

In Stock

Only %1 left

Want to save? CLICK HERE and buy in bulk!

Reset selection

Would like different processing and/or package?

Another surface finish and/or set:

Quantity:

The selected product is currently out of stock.

Description

Emergency exit door lock BMH 1028 B

Manufacturer - BMH (Germany)

- mortise lock for emergency exit doors
- technical specifications correspond with DIN 18250, EN 179 and EN 1125 requirements for emergency exit doors
- suitable for use only with certified handle sets
- correspond with fire safety requirements according to EN 1634-1 and DIN 4102-18
- suitable for wooden and metal doors with high usage
- lock function B
- galvanised, closed lock case
- PZ keyhole, key-retractable single turn latch
- split handle hole: 9 mm
- bolt and latch - galvanised metal
- bolt projection: 15 mm
- centre distance: 72 mm
- standard spindle depth D: 65 mm
- other options for spindle depth D: 55 / 60 / 65 / 80 / 100 mm
- connecting screw holes
- lock compatible with divided emergency door handle spindle and matching handles
- face plate: rounded, stainless steel

NB!
The key must always be taken out of the cylinder after locking/unlocking! Leaving the key in the cylinder can block the escape door function.
It is not allowed to use this lock in combination with knob cylinders.

E-shop

Show only in-stock products

All prices include VAT

Products
Price
In Stock
Quantity

1028 B emergency exit door lock PZ 65/72/20, stainless steel, LEFT
Code: SB00013433

Art. Nr.: 1028.000029

Price:

From €93.05

In Stock: 0 pc.

Quantity:

1028 B emergency exit door lock PZ 65/72/24, stainless steel, LEFT
Code: SB00013440

Art. Nr.: 1028.000037

Price:

From €71.84

In Stock: 17 pc.

Quantity:

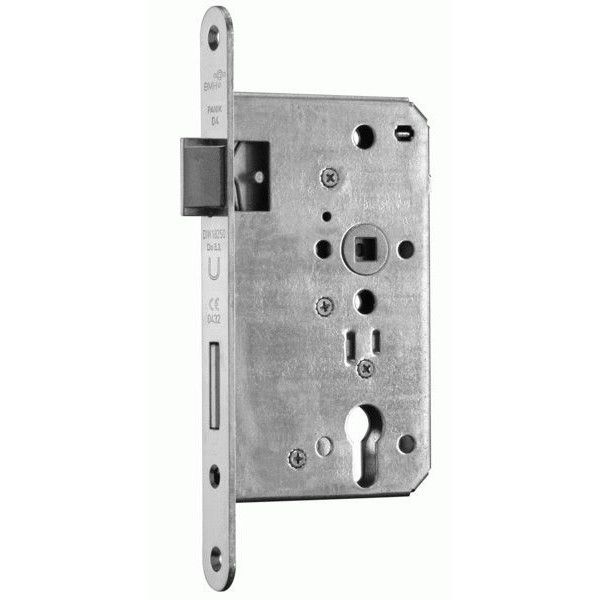

1028 B emergency exit door lock PZ 65/72/20, stainles steel, RIGHT
Code: SB00013434

Art. Nr.: 1028.000030

Price:

From €93.05

In Stock: 0 pc.

Quantity:

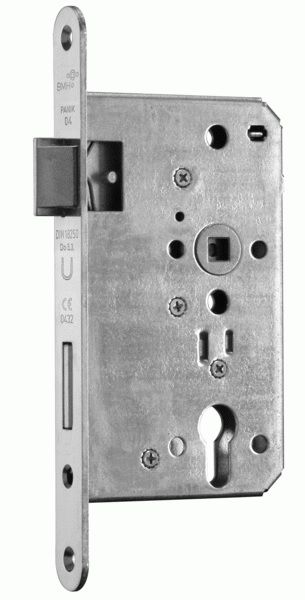

1028 B emergency exit door lock PZ 65/72/24, stainless steel, RIGHT
Code: SB00013441

Art. Nr.: 1028.000038

Price:

From €71.84

In Stock: 19 pc.

Quantity:

Technical details

Manufacturer	BMH
lock type	single-point lock for hinged doors
lock operation	mechanical
installation type	mortise
purpose	for interior doors / for exterior doors
leaf material	for wooden and metal doors
load capacity	high
class as per EN 12209 (DIN 18251)	class 4 according to DIN 18251 (EN class 3)
suitable for emergency exits	complies with 179 and EN 1125 - emergency/panic door equipment
evacuation function	B
fire safety	complies with EN standard fire safety requirements
compatibility standard	German (DIN)
possible spindle depth	55/60/65/80/100 mm
door direction	when ordering please indicate door swing direction
locking function	PZ - with profile cylinder hole
centre distance PZ	72 mm
lock case	galvanised closed
latch material	galvanised metal
latch	key-retractable
lock bolt material	galvanised metal
bolt projection	15 mm
lock bolt	single turn
sound insulation	no
handle square spindle size	9 mm
bundling options	lock compatible with split spindle
face plate shape	rounded
face plate width	24 mm
face plate length	235 mm
face plate finish	stainless steel
