Swing door drive GEZE Slimdrive EMD-F-IS for double-leaf fire protection doors

GEZE Slimdrive EMD-F-IS swing door drive for double-leaf fire protection doors

• electromechanical swing door drive for double doors - indoor or outdoor
• suitable for use in fire and smoke safety doors
• with closing sequence control
• convenient solution for hospitals, offices and other public buildings
• suitable for large and heavy doors, doors with high usage or additional burden such as heavy drafts for exterior or hallway doors
• compact installation with guide height of only 7 cm, suitable for almost any space
• elegant and reserved design, extra quiet operation
• opening and closing speed can be individually adjusted
• electrical latching action which accelerates the door shortly before the closed position
• low-energy function opens and closes the door with reduced speed, fulfilling the highest safety demands
• obstacle detection detects an object through contact and stops the opening or closing process
• automatic reversing detects an obstacle and returns to the opening position
• Push & Go function triggers the automatic drive following light manual pressure on the door leaf
• mechanical and electrical closing sequence controller holds the active leaf while the passive leaf closes

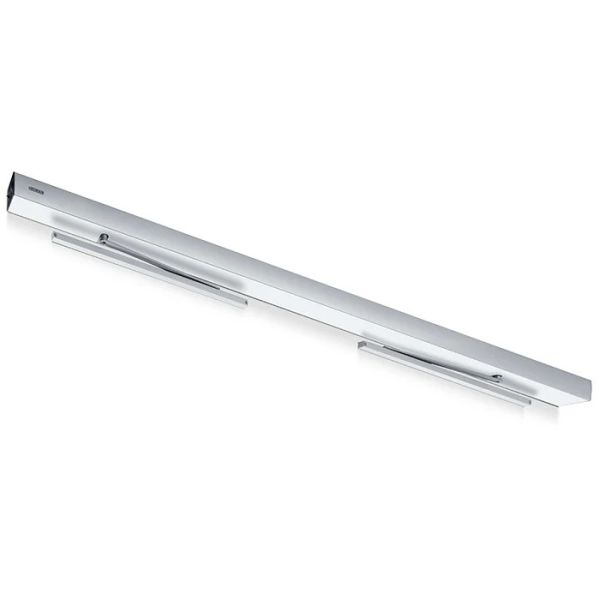

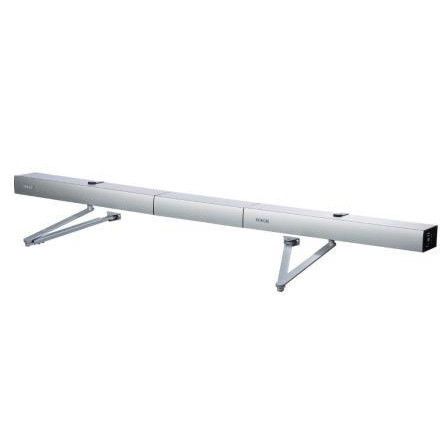

• set with link arms or guide rails
• transom installation opposite hinge side
• adjustable closing force EN 4-6
• adjustable opening and closing speed
• electrical/mechanical latching action
• total hinge clearance: up to 2800 mm
• minimum hinge clearance: 1500 mm
• door width: 750 - 1400 mm
• door weight: up to 230 kg
• max depth of door opening: 400 mm
• max door rebate: 30 mm
• size (height x depth x width): 70 x 121 x 650 mm
• operating voltage: 230 V
• compatible with all standard motorised and electric locks
• opening angle: up to 130°
• activation delay: max 20 sec.
• service temperature: -15 °C - 50 °C
• service humidity (non-condensing): max 95%
• IP rating: IP20
• not suitable for use with fireproof doors
• operating modes: Off / Automatic / Permanently open / Shop closing / Night
• adjustable Push & Go function
• standard colour: silver; available in other RAL tones on request (surcharge applies)

• more precisely adjustable closing force - essential in difficult situations, especially on facades with the risk of strong crosswinds
• a door stop must be installed

• elegant, more refined look
• integrated opening restrictor - door stop ir not required
