Mortise lock BMH 1012 without bolt for fireproof doors
Product code
MB00009654
All prices include VAT
From
€40.73
From
€40.73
Only %1 left
Mortise lock without bolt BMH 1012 for fireproof doors
Manufacturer - BHM
Manufacturer - BHM
-
- spec-functions mortise lock for fireproof doors without bolt
- prepared for Euro profile cylinders
- galvanised, closed lock case
- spindle square hole: 9 mm
- key-retractable latch
- latch: nickel-plated steel
- standard spindle depth D: 65 mm, other available spindle depth: 55/60/65/80/100 mm
- centre distance: 72 mm
- technical requirements corresponds DIN 18 250 class 4 requirements
- fire safety class T90 (provides 90 minutes of fire resistance)
- classification code corresponds with EN 12209: 3 M 5 1 0 F 0 H C 2 0
- face plate rounded: 235 x 20 / 24 mm
- face plate finishe: stainless steel
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

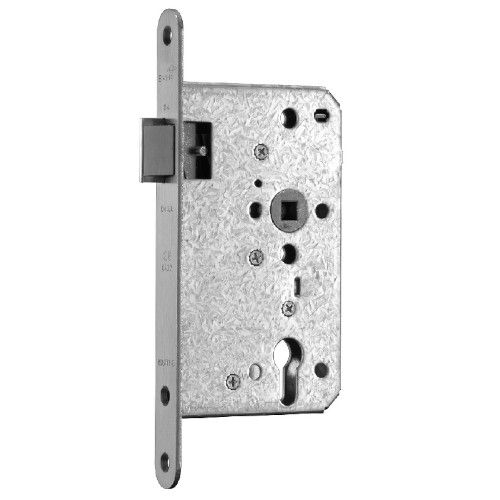

1012 fireproof lock without bolt PZ 65/72/24, stainless steel, RIGHTCode: SB00013409Art. Nr.: 1012.000002Price:From €40.73In Stock: 0 pc.
| centre distance PZ | 72 mm |
|---|---|
| class as per EN 12209 (DIN 18251) | class 4 according to DIN 18251 (EN class 3) |
| compatibility standard | German (DIN) |
| door direction | when ordering please indicate door swing direction |
| face plate width | 20 / 24 mm |
| face plate finish | nerūsējošais tērauds |
| face plate length | 235 mm |
| face plate shape | rounded |
| fire safety | complies with EN standard fire safety requirements |
| fire safety class | T90 |
| handle square spindle size | 9 mm |
| installation type | mortise |
| latch | key-retractable |
| latch material | nickel-coated steel |
| leaf material | for wooden and metal doors |
| load capacity | very high |
| lock bolt | Bez bultas |
| lock case | galvanised closed |
| lock operation | mechanical |
| lock type | single-point lock for hinged doors |
| locking function | PZ - with profile cylinder hole |
| Manufacturer | BMH |
| possible spindle depth | 55/60/65/80/100 mm |
| purpose | for interior doors / for exterior doors |
| sound insulation | no |
| spindle depth | 65 mm |
