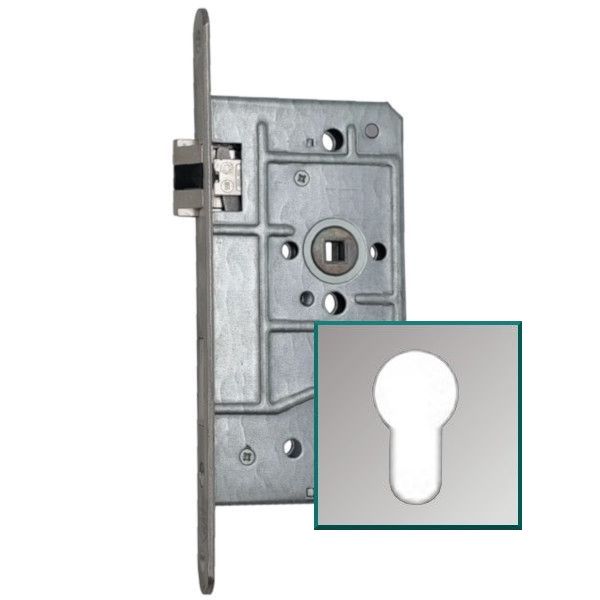

Mortise lock KFV 1133 1/2 SOFT

Product code
MB00000249
KFV View catalogue of manufacturer
main product photo
All prices include VAT
From €20.99
From €20.99
In Stock
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Questions and answers
Durvju vērtņu virzieni saskaņā ar DIN 107
Slēgšanas veidi. Slēdzenes un rokturu garnitūras.
Durvju furnitūras kopšanas norādījumi.
Slēdzeņu lietošanas un kopšanas norādījumi
Slēdzenes uzbūve un svarīgākie parametri.

Mortise lock KFV 1133 1/2 SOFT

Manufacturer - KFV (Germany)

    • standard lock set 1133 standart
      • galvanised closed lock case
      • steel fixation hole for spindle: Ø 8 mm, incorporated into steel rings
      • bright, nickel-plated latch and bolt
      • black varnished stainless steel face plate
      • holes for affixing backplate
      • powerful silicon steel spring
      • spindle depth D: 50 mm, 55 mm, 60 mm, 65 mm, 70 mm, 80 mm
      • centre distance for PZ and BB locks: 72 mm, for WC locks: 78 mm
      • grade 3 lock for doors with increased intruder resistance
    • classification code according to EN 12209:
      • 1133 1/2 PZW 3 S 8 0 0 D 4* B C 2 0
      • 1133 1/2 BB 3 S 8 0 0 D4* B D 2 0
      • 1133 1/2 WC 3 S 8 0 0 D 4* B G 2 0
*in set with protected strike plate casing

    • set for increased requirements 1133 special
      • matt stainless steel face plate
      • lubricating device in face plate
Advantages
    • long wear, proven quality and high durability
    • backplate holes suitable for screws up to M8
    • powerful spring is suitable even for extra heavy handles
    • steel rings for the spindle hole provide even and smooth handle operation
    • wide variety of additional components
    • Soft-Lock muted mechanism assures quieter locking upon closing the door
    • lock types PZ, BB, WC, BAC/F

Lock options
    • 1133 ½ PZW (standart / special) with double turn bolt, key-retractable latch
    • 1133 ½ BB (standart / special) with double turn bolt and one Facon 1501 key, latch is not key-retractable
    • 1133 ½ WC (standart / special) with 8 mm knob spindle square hole, single turn bolt with projection of 15 mm

Available face plate types and sizes
    • 235x18 mm, 235x20 mm
    • rectangular or with rounded ends

Lock is compatible with or rolling latch lock KFV 115B


Dokumentācija
Slēdzeņu klasifikators EN 12209 Slēdzeņu klasifikators EN 12209
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Mortise lock 1133-1/2-WC 55/78-20 SOFT, RH
    Mortise lock 1133-1/2-WC 55/78-20 SOFT, RH
    Code: SB00003593
    Art. Nr.: 3398734
    Price:
    From €20.99
    In Stock: 21 pc.
  2. Mortise lock 1133-1/2-PZW 55/72-20 SOFT, RH
    Mortise lock 1133-1/2-PZW 55/72-20 SOFT, RH
    Code: SB00003594
    Art. Nr.: 3399277
    Price:
    From €20.99
    In Stock: 91 pc.
  3. Mortise lock 1133-1/2-PZW 55/72-20 SOFT, LH
    Mortise lock 1133-1/2-PZW 55/72-20 SOFT, LH
    Code: SB00003600
    Art. Nr.: 3402603
    Price:
    From €20.99
    In Stock: 62 pc.
  4. Mortise lock 1133-1/2-WC 55/78-20 SOFT, LH
    Mortise lock 1133-1/2-WC 55/78-20 SOFT, LH
    Code: SB00003605
    Art. Nr.: 3406052
    Price:
    From €20.99
    In Stock: 75 pc.
  5. 1133-1/2-PZW 55/72-20/8mm KR, black varnished, lock, SOFT. KFV
    1133-1/2-PZW 55/72-20/8mm KR, black varnished, lock, SOFT. KFV
    Code: SB00019285
    Art. Nr.: 1133/PZW KR 9005
    Price:
    From €27.25
    In Stock: 6 pc.
  6. 1133-1/2-PZW 55/72-20/8mm LA, black varnished, lock, SOFT. KFV
    1133-1/2-PZW 55/72-20/8mm LA, black varnished, lock, SOFT. KFV
    Code: SB00019286
    Art. Nr.: 1133/PZW LA 9005
    Price:
    From €27.25
    In Stock: 8 pc.
  7. 1133-1/2-WC 55/78-20/8mm LA, black varnished, lock, SOFT. KFV
    1133-1/2-WC 55/78-20/8mm LA, black varnished, lock, SOFT. KFV
    Code: SB00019287
    Art. Nr.: 1133/WC LA 9005
    Price:
    From €27.25
    In Stock: 1 pc.
  8. 1133-1/2-WC 55/78-20 KR - SOFT lock, black varnished face plate. KFV
    1133-1/2-WC 55/78-20 KR - SOFT lock, black varnished face plate. KFV
    Code: SB00019496
    Art. Nr.: 1133/WC KR 9005
    Price:
    From €27.25
    In Stock: 5 pc.
Manufacturer KFV
door direction when ordering please indicate door swing direction
load capacity high
compatibility standard German (DIN)
leaf material for wooden and metal doors
bundling options may be combined with rolling latch KFV 115B
possible spindle depth 50/55/60/65/70/80 mm
bolt projection 20 mm
centre distance PZ 72 mm
lock bolt PZ, BB - double turn / WC - single turn
latch key-retractable (PZ)
locking function PZ / BB / WC / BAC
purpose for interior doors / for exterior doors
handle square spindle size 8 mm
centre distance WC 78 mm
bolt projection for WC lock 15 mm
face plate finish nerūsējošais tērauds
face plate length 235 mm
centre distance BB 72 mm
lock bolt material bright nickel-coated
lock operation mechanical
lock case galvanised closed
class as per EN 12209 (DIN 18251) class 3 according to EN 122209 / DIN 18251
latch material bright nickel-coated
installation type mortise
face plate shape rounded
face plate width 18 / 20 mm
sound insulation Soft-Lock latch
lock type single-point lock for hinged doors
fire safety not suitable for fire safety doors
