Lift off hinge with self close JNF IN.05.019.100.RA
Product code
MB00008812
All prices include VAT
From
€7.74
From
€7.74
Only %1 left
Rounded lift off stainless steel hinges with self-closing function.
Maximum load capacity 60 kg.
Maximum load capacity 60 kg.
Lift off hinge with self close JNF IN.05.019.100.RA
Manufacturer - JNF (Portugal)
Manufacturer - JNF (Portugal)
-
- lift off hinges with self-closing function
- material thickness: 3 mm
- size: 88 x 100 mm
- roll diameter: Ø16 mm
- rounded corners: R 12mm
- maximum load capacity: 60 kg
- please indicate door swing direction upon order
- classification code according to DIN EN 1935: 2 7 3 0 1 3 0 10
- material: stainless steel EN 1.4301 (AISI 304) satin
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
Self close hinge, stainless steel, LEFTCode: SB00013908Art. Nr.: IN05019RA100DPrice:From €7.74In Stock: 0 pc. -

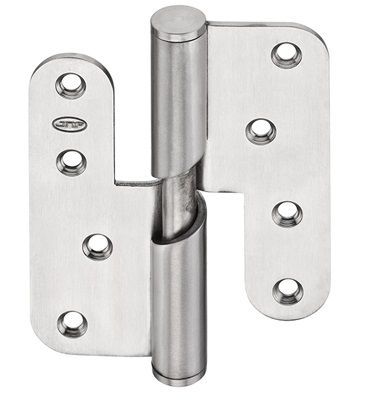

Self close hinge, stainless steel, RIGHTCode: SB00013909Art. Nr.: IN05019RA100EPrice:From €7.74In Stock: 2 pc.
| Manufacturer | JNF |
|---|---|
| hinge type | self-closing hinge |
| hinge shape | rounded |
| door construction | for non-rebated doors |
| door direction | when ordering please indicate door swing direction |
| class as per EN 1935 | class 2 |
| fire safety | not suitable for fire and smoke safety doors |
| material thickness | 3 mm |
| leaf material | wood |
| load capacity | middle |
| leaf maximum weight | 60 kg |
| suitable for aluminium frames | suitable |
| suitable for steel frames | suitable |
| suitable for industrial frames | suitable |
| suitable for timber frames | suitable |
| anti-corrosion resistance | class 3 according to EN 1935 - high |
| corner radius | R12 |
| adjustment | not adjustable |
| groove for leaf seal | no |
| anti-intruder protection | no |
| knuckle diameter | 16 mm |
| height | 100 mm |
| width | 88 mm |
| maintenance | not required (self-lubricating bearings) |
| material | stainless steel |
