Hardware system for sliding/folding cabinet doors HAWA MULTIFOLD 30 W

Product code
MULTIFOLD-30W
Hawa View catalogue of manufacturer
main product photo


From €348.42 was €409.90

Reset selection
HAWA-Multifold 30/W Set for «walk-in cabinet», with top track, for 2 panels   €348.42
Code: SB00008341
Art. Nr.: 15569
Out of stock. Estimated delivery time: 4 weeks.
Item non-returnable as it is made to the Buyer’s/Consumer's specifications

Price as configured €348.42

kit
The selected product is currently out of stock.
Questions and answers
Ražotāju BIM dati

HAWA MULTIFOLD 30 W

Hardware system for sliding/folding cabinet doors
Manufacturer - HAWA (Switzerland)

  • simple and quick installation, 3 options: Inslide, Mixslide & Forslide
  • various solutions for different constructions - from small cabinets to walk-in wardrobes
  • quiet and smooth operation
  • without bottom guide
  • unlimited number of panel pairs
  • several pairs of panels can be joined using an adapter
  • fully opening
  • system components do not affect cabinet interior
  • a horizontal brush seal in the top track and bottom guide protects against dust and lowers impact noise
  • for the centre groove a rubber seal can be used which protects the cupboard interior and hinges against dust

Technical data

  • max weight of one leaf: 30 kg
  • max leaf height: 2600 mm
  • max leaf width: 500 mm
  • leaf thickness: 19-25 mm
  • vertical adjustment: +/- 2 mm
  • 3 options for installation: sliding system on the front of the panel; system inside the cabinet body or mixed: upper part on the inside, lower - on the front

Auxiliary tools
  • seal profile, 5 m roll
    • white - approximate to RAL9010
    • black - approximate to RAL 9011
  • straightening fitting, aluminium anodised F1 natural tone, set of 2 pc.:
    • for doors up to 2240 - 2850 mm in height, can be shortened to 1215 - 2240 mm
    • for doors up to 1215 - 1775 mm in height


CATALOGUES and DOCUMENTS
HAWA Multifold 30 W - catalogue HAWA Multifold 30 W - catalogue
HAWA Multifold 30 W - installation instructions HAWA Multifold 30 W - installation instructions
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Visma Quote
    HAWA-Multifold 30/W Set for «walk-in cabinet», with top track, for 2 panels
    HAWA-Multifold 30/W Set for «walk-in cabinet», with top track, for 2 panels
    Code: SB00008341
    Art. Nr.: 15569
    Price:
    From Special Price €348.42 was €409.90
    In Stock: 0 pc.
  2. Visma Quote

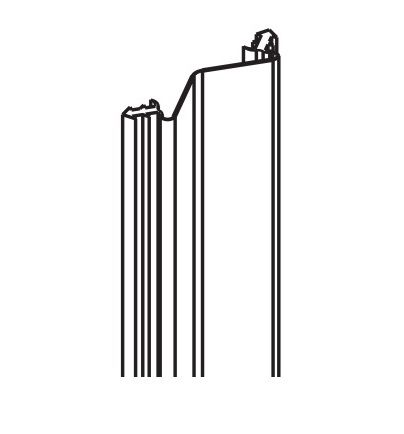

    Seal profile, white similar RAL 9010, roll 5 m
    Seal profile, white similar RAL 9010, roll 5 m
    Code: SB00008305
    Art. Nr.: 15227
    Price:
    From Special Price €43.92 was €51.68
    In Stock: 0 pc.
  3. Seal profile, black similar RAL 9011, roll 5 m
    Seal profile, black similar RAL 9011, roll 5 m
    Code: SB00008304
    Art. Nr.: 15224
    Price:
    From Special Price €44.19 was €51.98
    In Stock: 1 pc.
  4. Visma Quote
    HAWA Straightening fitting for doors up to 1215-1775mm, set of 2 pc., aluminium anodised F1
    HAWA Straightening fitting for doors up to 1215-1775mm, set of 2 pc., aluminium anodised F1
    Code: SB00008185
    Art. Nr.: 056.3192.073
    Price:
    From Special Price €75.20 was €88.48
    In Stock: 0 kit
  5. Visma Quote
    HAWA Straightening fitting for doors up to 2240-2850mm, set of 2 pc., aluminium anodised F1
    HAWA Straightening fitting for doors up to 2240-2850mm, set of 2 pc., aluminium anodised F1
    Code: SB00008184
    Art. Nr.: 056.3192.071
    Price:
    From Special Price €108.20 was €127.29
    In Stock: 0 kit
Manufacturer Hawa
system type folding-silding system
mode of operation manual
installation type pie mēbeļu korpusa
Atvēruma apjoms Pilns atvērums
purpose for furniture
leaf material wood
leaf maximum weight 30 kg
leaf width līdz 500 mm
leaf thickness 19 - 25 mm
leaf height līdz 2600 mm
Augstuma regulēšana +/-2 mm
