HAWA PORTA 60HMD Acoustics wall-mounted hardware system for wooden sliding doors with sound insulation

Product code
PORTA-60HMD-AC
Hawa View catalogue of manufacturer
main product photo
From €991.53
->>> Manufacturer's recommended system planner
(This system planner may be used for informative purposes only. No purchases can be made via the planner; to order the product, please use the SB UN PARTNERI E-shop.)
Reset selection
HAWA Porta 60/100 top running track, wall-mounted   €132.68
Can be ordered in full packages of pcs.
HAWA Porta 60 HM/HMD Acoustics sliding door hardware set for 1 leaf, w/o track   €182.69
Code: SB00019470
Art. Nr.: 30431
Out of stock. Estimated delivery time: 4 weeks.
Item non-returnable as it is made to the Buyer’s/Consumer's specifications
HAWA Porta 60/100 HMD track cover cap   €40.44
Can be ordered in full packages of pcs.
HAWA Porta HMD Acoustics track end caps (2 pc.), dark grey   €20.59
Code: SB00019477
Art. Nr.: 30485
Out of stock. Estimated delivery time: 4 weeks.
Item non-returnable as it is made to the Buyer’s/Consumer's specifications

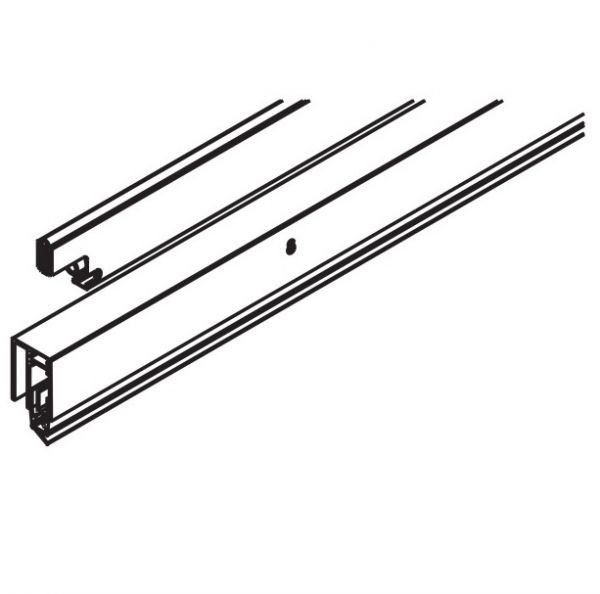

HAWA Junior 100 B Acoustics set for horizontal top/bottom sealing   €553.33
Can be ordered in full packages of pcs.
HAWA Acoustics vertical sealing 11.3x13 mm 7.7 m, silicone, black   €61.81
Code: SB00019473
Art. Nr.: 30300
Out of stock. Estimated delivery time: 4 weeks.
Item non-returnable as it is made to the Buyer’s/Consumer's specifications
Can be ordered in full packages of pcs.

Price as configured €991.53

kit
The selected product is currently out of stock.
Questions and answers
Ražotāju BIM dati

HAWA PORTA 60 HMD wall-mounted hardware system for wooden sliding doors with sound insulation

Manufacturer - HAWA (Switzerland)

  • hardware system for wooden sliding doors/partitions weighing up to 60 kg
  • with sealing for interroom sound insulation
  • ensures also protection against drafts, odors and unwanted light incidence
  • track installation: wall-mounted
  • set includes aluminium cover cap in natural or black tone
  • convenient continuous adjustment
  • minimum door processing and no special tools required
  • ball-bearing rollers ensure high comfort in use
  • elegant profiles, concealed mechanisms
  • flexible solution for premium interior design projects in private and public buildings, such as walk-in-wardrobes, large separating doors between the dining and living area, and any kind of room partitioning
  • max leaf height: 2500 mm
  • max clearance: 750 - 1500 mm
  • leaf thickness: 39-45 mm
  • max load: 60 kg
  • adjustable leaf installation height ± 2 mm
  • running track pre-drilled, standard lengths: 2500 mm / 3500 mm
  • track material: aluminium anodised
  • surface material of visible profiles: aluminium natural anodised or aluminium black anodised
  • set includes vertical elliptical sealing profile 11.3 x 13 mm; roll 7.7 m and horizontal sealing profile depending on leaf width and closing direction

->>> Manufacturer's recommended system planner
(This system planner may be used for informative purposes only. No purchases can be made via the planner; to order the product, please use the SB UN PARTNERI E-shop.)

Documents and further details

HAWA PORTA 60 HMD Acoustics - catalogue (EN) HAWA PORTA 60 HMD Acoustics - catalogue (EN)
HAWA Porta 60/100 HM/HMD and Divido 100 HM - mounting instructions HAWA Porta 60/100 HM/HMD and Divido 100 HM - mounting instructions




All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Visma Quote

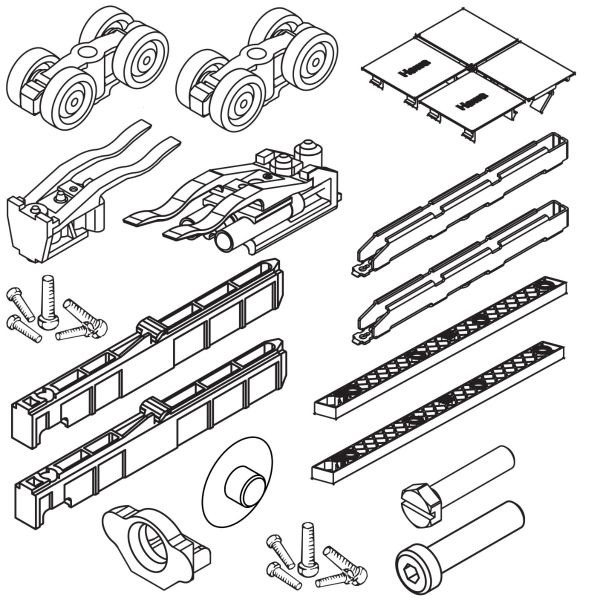

    HAWA Porta 60 HM/HMD Acoustics sliding door hardware set for 1 leaf, w/o track
    HAWA Porta 60 HM/HMD Acoustics sliding door hardware set for 1 leaf, w/o track
    Code: SB00019470
    Art. Nr.: 30431
    Price:
    From €182.69
    In Stock: 0 set
  2. Visma Quote
    HAWA Porta 60/100 top running track, wall-mounted, aluminium anodised, 2500mm
    HAWA Porta 60/100 top running track, wall-mounted, aluminium anodised, 2500mm
    Code: SB00019478
    Art. Nr.: 057.3112.250
    Price:
    From €132.68
    In Stock: 1 pc.
  3. Visma Quote
    HAWA Porta 60/100 top running track, wall-mounted, aluminium anodised, 3500mm
    HAWA Porta 60/100 top running track, wall-mounted, aluminium anodised, 3500mm
    Code: SB00020415
    Art. Nr.: 057.3112.350
    Price:
    From €185.90
    In Stock: 0 pc.
  4. Visma Quote
    HAWA Porta 60/100 top running track, wall-mounted, black, 2500mm
    HAWA Porta 60/100 top running track, wall-mounted, black, 2500mm
    Code: SB00020416
    Art. Nr.: 057.3112.255
    Price:
    From €167.27
    In Stock: 2 pc.
  5. Visma Quote
    HAWA Porta 60/100 top running track, wall-mounted, black, 3500mm
    HAWA Porta 60/100 top running track, wall-mounted, black, 3500mm
    Code: SB00020417
    Art. Nr.: 057.3112.355
    Price:
    From €232.99
    In Stock: 0 pc.
  6. Visma Quote
    HAWA Porta 60/100 HMD track cover cap, aluminium anodised, 2500mm
    HAWA Porta 60/100 HMD track cover cap, aluminium anodised, 2500mm
    Code: SB00019480
    Art. Nr.: 057.3113.250
    Price:
    From €40.44
    In Stock: 1 pc.
  7. Visma Quote
    HAWA Porta 60/100 HMD track cover cap, aluminium anodised,3500mm
    HAWA Porta 60/100 HMD track cover cap, aluminium anodised,3500mm
    Code: SB00020418
    Art. Nr.: 057.3113.350
    Price:
    From €57.79
    In Stock: 0 pc.
  8. Visma Quote
    HAWA Porta 60/100 HMD track cover cap, black, 2500mm
    HAWA Porta 60/100 HMD track cover cap, black, 2500mm
    Code: SB00020419
    Art. Nr.: 057.3113.255
    Price:
    From €50.65
    In Stock: 2 pc.
  9. Visma Quote
    HAWA Porta 60/100 HMD track cover cap, black, 3500mm
    HAWA Porta 60/100 HMD track cover cap, black, 3500mm
    Code: SB00020420
    Art. Nr.: 057.3113.355
    Price:
    From €70.92
    In Stock: 0 pc.
  10. Visma Quote

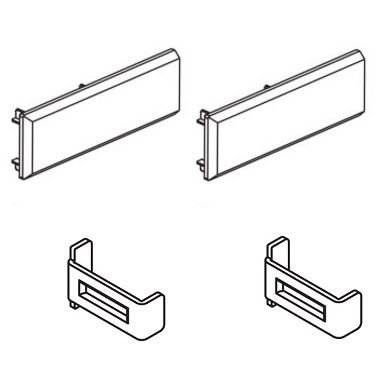

    HAWA Porta HMD Acoustics track end caps (2 pc.), dark grey
    HAWA Porta HMD Acoustics track end caps (2 pc.), dark grey
    Code: SB00019477
    Art. Nr.: 30485
    Price:
    From €20.59
    In Stock: 0 kit
  11. Visma Quote

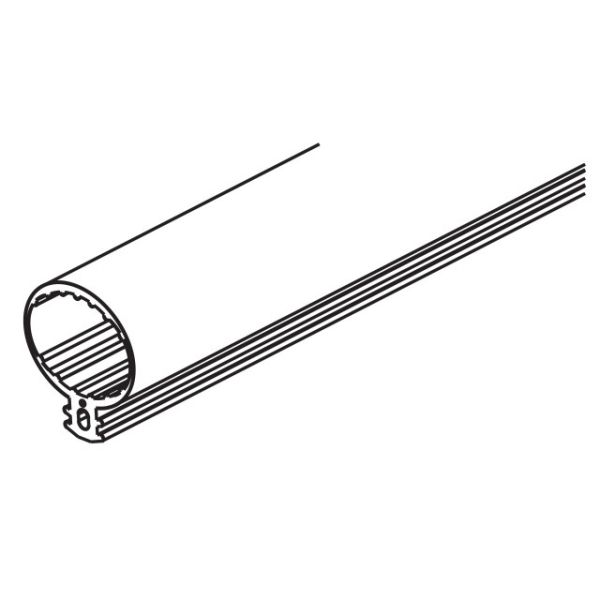

    HAWA Acoustics vertical sealing 11.3x13 mm 7.7 m, silicone, black
    HAWA Acoustics vertical sealing 11.3x13 mm 7.7 m, silicone, black
    Code: SB00019473
    Art. Nr.: 30300
    Price:
    From €61.81
    In Stock: 0 pc.
  12. Visma Quote

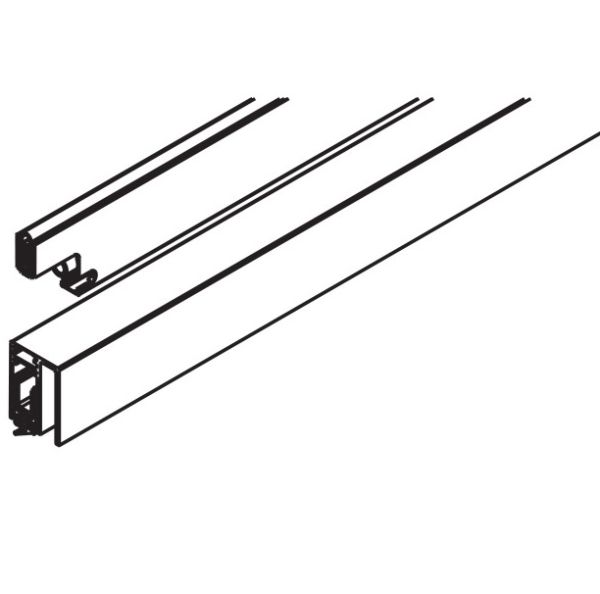

    HAWA Acoustics XS horizontal top/bottom sealing set for inside clearance 750-850mm, left
    HAWA Acoustics XS horizontal top/bottom sealing set for inside clearance 750-850mm, left
    Code: SB00020402
    Art. Nr.: 30437
    Price:
    From €553.33
    In Stock: 0 pc.
  13. Visma Quote
    HAWA Acoustics XS horizontal top/bottom sealing set for inside clearance 750-850mm, right
    HAWA Acoustics XS horizontal top/bottom sealing set for inside clearance 750-850mm, right
    Code: SB00020403
    Art. Nr.: 30436
    Price:
    From €553.33
    In Stock: 0 pc.
  14. Visma Quote
    HAWA Acoustics S horizontal top/bottom sealing set for inside clearance 850-970mm, left
    HAWA Acoustics S horizontal top/bottom sealing set for inside clearance 850-970mm, left
    Code: SB00020405
    Art. Nr.: 30439
    Price:
    From €572.55
    In Stock: 0 pc.
  15. Visma Quote
    HAWA Acoustics S horizontal top/bottom sealing set for inside clearance 850-970mm, right
    HAWA Acoustics S horizontal top/bottom sealing set for inside clearance 850-970mm, right
    Code: SB00020406
    Art. Nr.: 30438
    Price:
    From €572.55
    In Stock: 0 pc.
  16. Visma Quote
    HAWA Acoustics M horizontal top/bottom sealing set for inside clearance 970-1100mm, left
    HAWA Acoustics M horizontal top/bottom sealing set for inside clearance 970-1100mm, left
    Code: SB00019782
    Art. Nr.: 30441
    Price:
    From €591.73
    In Stock: 0 pc.
  17. Visma Quote
    HAWA Acoustics M horizontal top/bottom sealing set for inside clearance 870-1100mm, right
    HAWA Acoustics M horizontal top/bottom sealing set for inside clearance 870-1100mm, right
    Code: SB00019783
    Art. Nr.: 30440
    Price:
    From €591.73
    In Stock: 0 pc.
  18. Visma Quote
    HAWA Acoustics L horizontal top/bottom sealing set for inside clearance 1100-1220mm, left
    HAWA Acoustics L horizontal top/bottom sealing set for inside clearance 1100-1220mm, left
    Code: SB00020407
    Art. Nr.: 30443
    Price:
    From €610.70
    In Stock: 0 pc.
  19. Visma Quote
    HAWA Acoustics L horizontal top/bottom sealing set for inside clearance 1100-1220mm, right
    HAWA Acoustics L horizontal top/bottom sealing set for inside clearance 1100-1220mm, right
    Code: SB00020408
    Art. Nr.: 30442
    Price:
    From €610.70
    In Stock: 0 pc.
  20. Visma Quote
    HAWA Acoustics XL horizontal top/bottom sealing set for inside clearance 1220-1350mm, left
    HAWA Acoustics XL horizontal top/bottom sealing set for inside clearance 1220-1350mm, left
    Code: SB00019472
    Art. Nr.: 30445
    Price:
    From €629.90
    In Stock: 0 pc.
  21. Visma Quote
    HAWA Acoustics XL horizontal top/bottom sealing set for inside clearance 1220-1350mm, right
    HAWA Acoustics XL horizontal top/bottom sealing set for inside clearance 1220-1350mm, right
    Code: SB00019471
    Art. Nr.: 30444
    Price:
    From €629.90
    In Stock: 0 pc.
  22. Visma Quote
    HAWA Acoustics XXL horizontal top/bottom sealing set for inside clearance 1350-1470mm, left
    HAWA Acoustics XXL horizontal top/bottom sealing set for inside clearance 1350-1470mm, left
    Code: SB00025814
    Art. Nr.: 31482
    Price:
    From €686.30
    In Stock: 0 pc.
  23. Visma Quote
    HAWA Acoustics XXL horizontal top/bottom sealing set for inside clearance 1350-1470mm, right
    HAWA Acoustics XXL horizontal top/bottom sealing set for inside clearance 1350-1470mm, right
    Code: SB00025815
    Art. Nr.: 31481
    Price:
    From €686.30
    In Stock: 0 pc.
  24. Visma Quote
    HAWA Acoustics XXXL horizontal top/bottom sealing set for inside clearance 1470-1500mm, left
    HAWA Acoustics XXXL horizontal top/bottom sealing set for inside clearance 1470-1500mm, left
    Code: SB00025816
    Art. Nr.: 31484
    Price:
    From €725.52
    In Stock: 0 pc.
  25. Visma Quote
    HAWA Acoustics XXXL horizontal top/bottom sealing set for inside clearance 1470-1500mm, right
    HAWA Acoustics XXXL horizontal top/bottom sealing set for inside clearance 1470-1500mm, right
    Code: SB00025817
    Art. Nr.: 31483
    Price:
    From €725.52
    In Stock: 0 pc.
Manufacturer Hawa
Series PORTA
system type straight sliding door system
mode of operation manual
installation type to wall
maximum opening width 1250 mm
purpose for interior doors / furniture doors
leaf material wood
leaf maximum weight 60 kg
leaf width 750 - 1250 mm (passage size)
sound insulation yes
leaf thickness 39-45 mm
leaf height up to 2500 mm
Augstuma regulēšana +/-2 mm
