Heavy duty hinges OBJECTA 2029/100
Product code
MB00000739
All prices include VAT
From
€25.54
From
€25.54
Only %1 left
Heavy duty hinges OBJECTA 2029/100
Manufacturer - BaSys (Germany)
Manufacturer - BaSys (Germany)
-

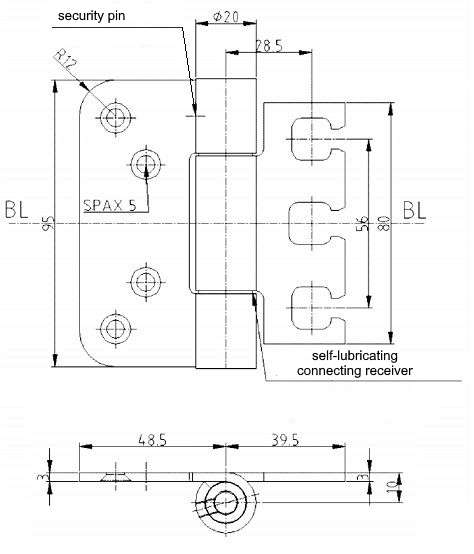

- height: 95 mm
- roll diameter: 20 mm
- material thickness: 3 mm
- screws: Spax 5
- patented axle technology which allows hinges to be easily changed even on doors that are already hung
- security pin prevents removal of hinge axle, effectively increasing the level of anti-intruder protection
- maintenance-free ball bearing technology with self-lubricating connecting receivers
- increased sliding surface of ball bearings ensure excellent level of functional quality
- complies with DIN EN 1935:2002 requirements
- max load: 100 kg (2 hinges)
- material:
-
-
- stainless steel
- steel, chrome-plated
- steel, nickel-plated
-
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
2029/100/56 hinge, stainless steelCode: SB00016181Art. Nr.: 037725Price:From €25.54In Stock: 0 pc.
| Manufacturer | BASYS |
|---|---|
| hinge type | heavy duty hinge |
| hinge shape | rounded |
| door construction | for non-rebated doors |
| door direction | universal use for DIN right and left hand doors |
| class as per EN 1935 | class 3 |
| fire safety | suitable for fire and smoke safety doors |
| bundling options | 3-D receivers VX 65 mm |
| material thickness | 3 mm |
| leaf material | wood |
| load capacity | high |
| leaf maximum weight | 100 kg |
| suitable for aluminium frames | suitable |
| suitable for steel frames | suitable |
| suitable for industrial frames | suitable |
| suitable for timber frames | suitable |
| anti-corrosion resistance | certified according to EN 1935 - depending on finish |
| corner radius | R12 |
| adjustment | not adjustable |
| groove for leaf seal | no |
| anti-intruder protection | yes, integrated safety pin |
| knuckle diameter | 20 mm |
| height | 95 mm |
| maintenance | not required (self-lubricating bearings) |
| fastening elements | must be ordered separately |
| material | stainless steel |
