Heavy-duty hinges VX 7939/160-4 FD for heavy rebated doors with acoustic seal
Product code
MB00001729
All prices include VAT
From
€89.59
From
€89.59
Only %1 left
Heavy-duty hinges for heavy rebated doors with acoustic seal VX 7939/160-4 FD
Manufacturer - SIMONSWERK (Germany)
Classification code according to DIN EN 1935: 4 7 7 1*1 1 --*2 1 14*3
1 atbilstības tests funkcionālajām durvīm vienmēr veicams kopā ar pilnībā nokomplektētu vērtnes elementu
2 depending on surface finish: stainless steel: grade 5 / matt nickel-plated/F2: grade 3
3 test cycles in continuous operation with leaf of 300 kg
Manufacturer - SIMONSWERK (Germany)
-
- heavy-duty hinges for rebated doors with acoustic seal
- with groove for continuous acoustic seal
- suitable for wooden, steel and aluminium frames
- suitable for fire and smoke safety doors
- compatible with 3-dimensionally adjustable receivers VARIANT VX
- internal torsion-proof pin
- concealed, maintenance-free axial-radial slide bearings
- suitable for both left and right hand doors
- model version available with integrated retainer to hinges and prevent intruders from prising the door open
- max load capacity: 300 kg
- load capacity refers to two hinges per leaf, taking into account also load capacities of the respective combined receiver
- knuckle length: 160 mm
- knuckle Ø: 22.5 mm
- pin Ø: 10 mm
- milling Ø: 24 mm
- material thickness: 4 mm
- screws: 6 x 50 mm
- screws for cover plate: 3 x 25 mm
- material:
-
-
- stainless steel
- nickel-plated, matt
-
Classification code according to DIN EN 1935: 4 7 7 1*1 1 --*2 1 14*3
1 atbilstības tests funkcionālajām durvīm vienmēr veicams kopā ar pilnībā nokomplektētu vērtnes elementu
2 depending on surface finish: stainless steel: grade 5 / matt nickel-plated/F2: grade 3
3 test cycles in continuous operation with leaf of 300 kg
Fitting instructions (LV/ENG)
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

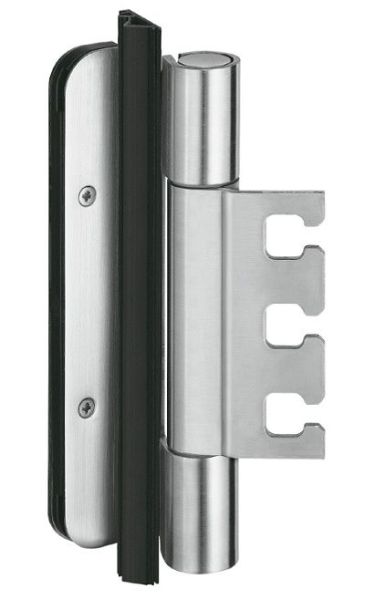

Heavy-duty hinge VARIANT VX 7939/160-4 FD N, stainless steelCode: SB00008664Art. Nr.: 5 051510 0 04002Price:From €89.59In Stock: 0 pc.
| Manufacturer | SIMONSWERK |
|---|---|
| hinge type | heavy duty hinge |
| hinge shape | rounded |
| door construction | for rebated doors |
| door direction | universal use for DIN right and left hand doors |
| class as per EN 1935 | class 4 |
| fire safety | suitable for fire and smoke safety doors |
| bundling options | may be combined with VX 3D receivers |
| material thickness | 4 mm |
| leaf material | wood |
| load capacity | very high |
| leaf maximum weight | 300 kg |
| suitable for aluminium frames | suitable |
| suitable for steel frames | suitable |
| suitable for industrial frames | suitable using additional mounting parts |
| suitable for timber frames | suitable |
| anti-corrosion resistance | certified according to EN 1935 - depending on finish |
| adjustment | not adjustable |
| groove for leaf seal | yes |
| anti-intruder protection | optional safety pin |
| cutter diameter | 24 mm |
| knuckle length | 160 mm |
| knuckle diameter | 22.5 mm |
| collar ring | 30 mm |
| spindle diameter | 10 mm |
| height | 160 mm |
| maintenance | not required (self-lubricating bearings) |
| installation template | available for sale or rent |
| fastening elements | must be ordered separately |
| material | steel / stainless steel |
