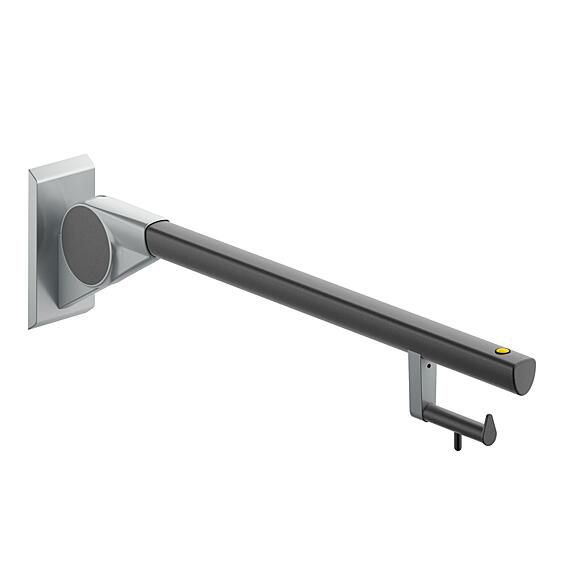

Drop-down support rail with function buttons ErgoSystem® A100 82.8420 for WC and basin area

Drop-down support rail with function buttons for WC and basin area ErgoSystem® A100 82.8420

• features function buttons for electric activation of flush function or other functions
• with/without toilet roll holder
• spring-loaded, adjustable ease of action
• double ellipse-shaped handle for optimum grip comfort and support
• suitable for use either to the left or right from basin/WC
• concealed screws
• rail diameter: 42 x 45 mm
• rail length (L): 600 / 700 / 850 / 900 mm
• stainless steel mounting plate: 214 x 105 mm
• max load: 60 kg from side / 100 kg from top or front
• 3 different tones in 6 combinations with differing degrees of brightness (from matt to bright)
• high-quality aluminium with durable, electrostatic powder coating
• high resistance against corrosion
• high resistance against cleaning agents, scratches and general wear
• complies with DIN 18040-1 and DIN 18040-2 requirements for environmental accessibility
• TÜV/GS certified safety
• matches other products from the ErgoSystem® A100 line for a unified bathroom look
• surface tested according to the following standards:

• • resistance against corrosion and cleaning agents - DIN EN ISO 6988
  • resistance against scratches - DIN EN ISO 1518-1
  • resistance against wear - DIN EN 60068-2-70
  • surface coating warranty - DIN EN ISO 2409
• matching uniform coating available in:

• • anemone white, approximating to RAL 9016
  • oyster grey, approximating to RAL 7040
  • anthracite grey, metallic, approximating to RAL 7016
• matching combined (holder / rail) coating available in:

• • aluminium grey metallic / anemone white
  • anemone white / oyster grey
  • aluminium grey metallic / anthracite grey metallic
