Panic lock set for METAL double doors BMH PTVA 11 "E"

Name: Panic lock set for METAL double doors BMH PTVA 11 "E"
SKU: BMH-PTVA11-E-M
Price: 512.79 EUR
Availability: InStock

Product code

BMH-PTVA11-E-M

View catalogue of manufacturer

Skip to the end of the images gallery

Skip to the beginning of the images gallery

From €512.79

Reset selection

Lock for active leaf

Door lock BMH 6113 PZW E for active leaf in double doors €240.08

door direction

Lock for inactive leaf

BMH 6130 65/24 Flush bolt lock for passive leaf in metal doors, stainless steel, RIGHT/LEFT €178.64

Code: SB00013535

Art. Nr.: 6130.100001

Out of stock. Estimated delivery time: 6 weeks.

Item non-returnable as it is made to the Buyer’s/Consumer's specifications

Top switch lock

1141 Top switch lock 24x54mm, galvanised €46.02

Code: SB00013471

Art. Nr.: 1141.000012

Out of stock. Estimated delivery time: 6 weeks.

Item non-returnable as it is made to the Buyer’s/Consumer's specifications

Top shoot bolt

BMH 1109 spring-loaded shoot bolt €37.96

length

Top strike plate for shoot bolt

1143 top strike plate for shoot bolts,20x3x52 mm, galvanised €3.32

Code: SB00013473

Art. Nr.: 1143.000001

Out of stock. Estimated delivery time: 6 weeks.

Item non-returnable as it is made to the Buyer’s/Consumer's specifications

Shoot bolt guide

1144 Bottom shoot bolt guide Ø10,5/60x20mm, galvanised €6.78

Code: SB00013474

Art. Nr.: 1144.000001

Out of stock. Estimated delivery time: 6 weeks.

Item non-returnable as it is made to the Buyer’s/Consumer's specifications

Price as configured €512.79

Quantity:

kit

The selected product is currently out of stock.

Description

Panic lock set for METAL double doors BMH PTVA 11 (function E)

Manufacturer - BMH (Germany)

lock set with shoot bolts for metal double doors
with automated locking for inactive leaf
emergency exit function E
complies with EN 1125 requirements for panic doors
suitable for fire safety doors

Inactive leaf function
The passive and active door leaves open simultaneously when the panic bar on the passive door leaf is pressed. Shooting bolts in the passive leaf lock automatically with the top switch lock, thus ensuring the door is locked automatically.

Active leaf function
From inside:
From the inside, the door can be locked and unlocked with a key. A locked bolt can be retracted together with the latch by pressing the panic bar.
From outside:
On the outside, the door is fitted with an inactive door knob. From the outside, the active leaf can be locked and unlocked with a key. When unlocked, the latch is retracteable with the key.

SET

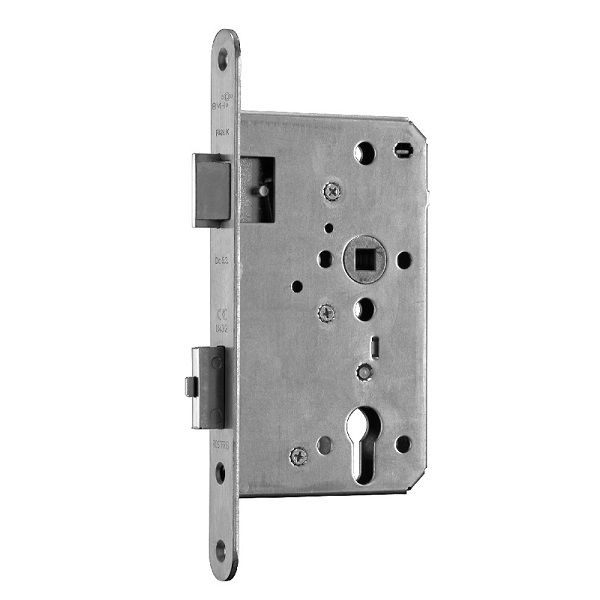

Lock BMH 6113 PZW for active leaf

complies with EN 1125 requirements for panic doors
locking function E
PZ keyhole, single-turn latch
galvanised, closed lock case
9 mm handle hole (non-split)
bolt and latch: nickel-plated steel
centre distance: 72 mm
standard spindle depth D: 65 mm
other options (on individual order) for spindle depth D: 65 / 80 / 100 mm
rounded stainless steel face plate: 235 x 24 mm
lock may be used only with suitable and certified panic bars and accessories

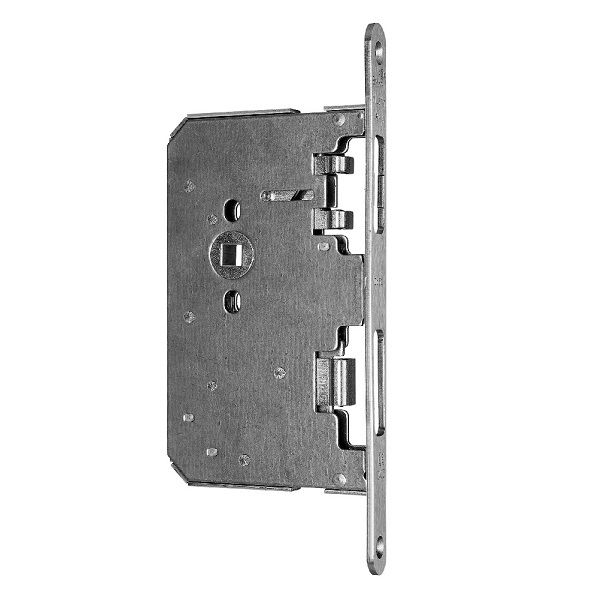

Lock BMH 6130 for passive leaf

complies with EN 1125 requirements for panic doors and fire safety
galvanised, closed lock case
9 mm split handle hole
standard spindle depth D: 65 mm
other options for spindle depth D: 65 / 80 / 100 / 125 mm
rounded stainless steel face plate: 235 x 24 mm
standard size X: 30 mm

Top switch lock BMH 1141

galvanised lock case
plastic latch
galvanised face plate 54 x 20 mm
complies with EN 1125 requirements for panic doors

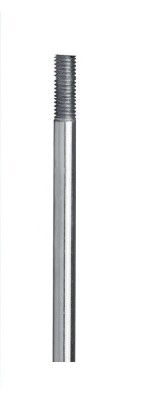

Shoot bolts BMH 1109

diameter: 10 mm
thread: M6
length: 1000 / 1500 / 2000 mm

Strike plate BMH 1148 for top shoot bolt

size 100 x 20 mm
thickness: 3 mm
shape: rounded
rectangular lip: 60 mm
material: stainless steel

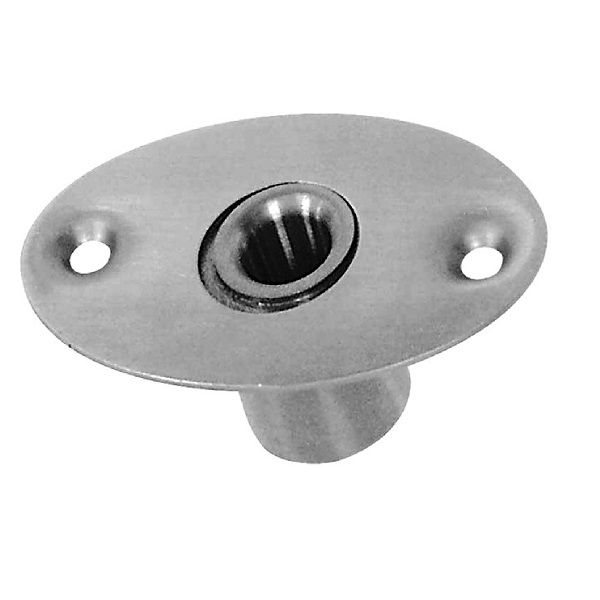

Floor bushing BMH 1192 for shoot bolts

adjustable
interior diameter of the bushing: 12 mm
oval backplate: 80 x 50 mm, thickness: 1.6 mm
material: stainless steel

Bottom shoot bolt guide BMH 1144

interior diameter of the guide: 10.5 mm
exterior diameter: 15 mm
backplate size: 60 x 20 mm, thickness: 3 mm
shape: rounded
material: galvanised steel
noise-reducing plastic bushing

E-shop

Show only in-stock products

All prices include VAT

Products
Price
In Stock
Quantity

BMH 6130 65/24 Flush bolt lock for passive leaf in metal doors, stainless steel, RIGHT/LEFT
Code: SB00013535

Art. Nr.: 6130.100001

Price:

From €178.64

In Stock: 0 pc.

Quantity:

Lock for active leaf in emergency exit doors BMH 6113 PZW 65/72-24 "E", st. steel, LEFT
Code: SB00013526

Art. Nr.: 6113.000003

Price:

From €240.08

In Stock: 0 pc.

Quantity:

Lock for active leaf in emergency exit doors BMH 6113 PZW 65/72-24 "E", st. steel, RIGHT
Code: SB00013527

Art. Nr.: 6113.000004

Price:

From €240.08

In Stock: 0 pc.

Quantity:

1143 top strike plate for shoot bolts,20x3x52 mm, galvanised
Code: SB00013473

Art. Nr.: 1143.000001

Price:

From €3.32

In Stock: 0 pc.

Quantity:

1109 spring-loaded shoot bolt Ø10/1000mm, galvanised
Code: SB00013455

Art. Nr.: 1109.000004

Price:

From €37.96

In Stock: 0 pc.

Quantity:

1109 spring-loaded shoot bolt Ø10/1500mm, galvanised
Code: SB00013456

Art. Nr.: 1109.000005

Price:

From €40.08

In Stock: 0 pc.

Quantity:

1141 Top switch lock 24x54mm, galvanised
Code: SB00013471

Art. Nr.: 1141.000012

Price:

From €46.02

In Stock: 0 pc.

Quantity:

1144 Bottom shoot bolt guide Ø10,5/60x20mm, galvanised
Code: SB00013474

Art. Nr.: 1144.000001

Price:

From €6.78

In Stock: 0 pc.

Quantity:

Additional products

Products
Price
In Stock
Quantity

1192 grīdas bukse slēgstieņiem Ø12/80x50mm, nerūs.tērauds
Code: SB00013481

Art. Nr.: 1192.000001

Price:

From €48.05

In Stock: 0 pc.

Quantity:

Strike plate 5853 for flush bolt 10mm
Code: SB00016036

Art. Nr.: 5853 0100 33

Price:

From €1.40

In Stock: 44 pc.

Quantity:

Floor bushing 8028-4V/31, brightly galvanized
Code: SB00003760

Art. Nr.: 3473961

Price:

From €11.69

In Stock: 35 pc.

Quantity:

Floor bushing 11 mm
Code: SB00014151

Art. Nr.: IN17400

Price:

From €5.93

In Stock: 12 pc.

Quantity:

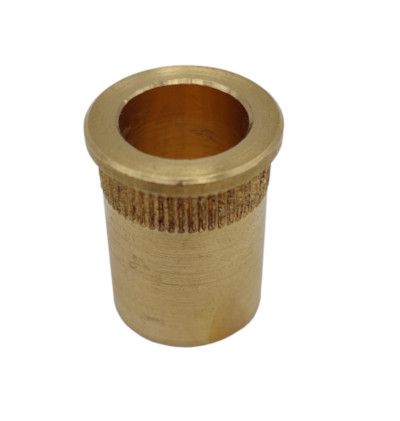

Rod guide M10, brass
Code: SB00016040

Art. Nr.: 7297 0000 40

Price:

From €3.06

In Stock: 28 pc.

Quantity:

Technical details

Manufacturer	BMH
lock type	single-point lock for hinged doors
lock operation	mechanical
installation type	mortise
purpose	for interior doors / for exterior doors
leaf material	metal
load capacity	high
class as per EN 12209 (DIN 18251)	class 3 according to EN 122209 / DIN 18251
suitable for emergency exits	complies with 1125 - panic door equipment
evacuation function	E
fire safety	complies with EN standard fire safety requirements
compatibility standard	German (DIN)
possible spindle depth	65 mm (on request: 80 / 100 mm)
door direction	when ordering please indicate door swing direction
locking function	PZ - with profile cylinder hole
centre distance PZ	72 mm
locking function	PZ - with profile cylinder hole
set includes:	lock for active leaf, lock for passive leaf, switch lock
set includes:	shoot bolts, strike plates for shoot bolts, floor bushing, shoot bolt guide
lock case	galvanised closed
latch material	nickel-coated steel
latch	key-retractable
lock bolt material	nickel-coated steel
bolt projection	11 mm
lock bolt	single turn
sound insulation	no
spindle depth	65 mm
handle square spindle size	9 mm
face plate shape	rounded
face plate width	24 mm
face plate length	235 mm
face plate finish	stainless steel
