PORTI 5489 opening restrictor for wooden doors
Product code
MB00009071
All prices include VAT
From
€109.19
From
€109.19
In Stock
Only %1 left
Questions and answers
Opening restrictor for wooden doors PORTI 5489
Manufacturer - Athmer (Germany)
SIZES
PORTI 5489 (400 M-65) for wooden doors with metal frame
upper frame clearance 7-12 mm
max leaf width: 720 - 1110 mm
max door weight: 65 kg
milling size in leaf for guide rail (length x width x height): 635 x 16 x 12 mm
lever length: 400 mm
Manufacturer - Athmer (Germany)
-
- adjustable opening angle up to 120º
- suitable for both rebated and non-rebated doors
- guide rail made of anodised aluminium
- rotating bearings made of durable PVC, PU-elastomer damper
- mounting set includes all accessories for assembly into wooden and metal frames
- when selecting door hinges please take into account the extra load of the opening restrictor
SIZES
PORTI 5489 (400 M-65) for wooden doors with metal frame
upper frame clearance 7-12 mm
max leaf width: 720 - 1110 mm
max door weight: 65 kg
milling size in leaf for guide rail (length x width x height): 635 x 16 x 12 mm
lever length: 400 mm
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

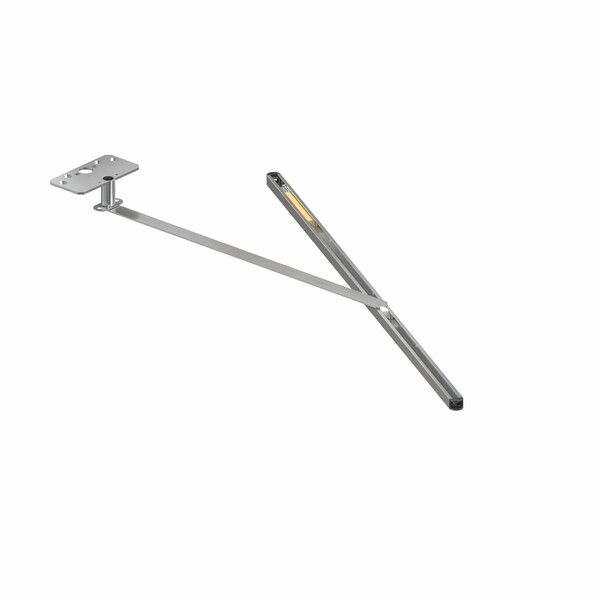

PORTI 400 M-65 door opening restrictor, 3mm clearanceCode: SB00006930Art. Nr.: 5489Price:From €109.19In Stock: 2 pc.
| Manufacturer | ATHMER |
|---|---|
| purpose | for interior doors / for exterior doors |
| maximum opening angle | 120° |
| body dimensions | 525 x 16 x 12 mm / 635 x 16 x 12 mm |
| mounting plate | 100 x 50 x 3 mm |
| stroke length | 310 / 400 mm |
| distance between frame and door leaf | 7-12 mm (augšā) |
| leaf width | Min. 610 mm / 720 mm |
| leaf material | wood |
| leaf maximum weight | 65 kg |
| case material | wood |
| material | aluminium anodised |
