Manufacturer - AGB
-
- corresponds with EN 1303 standards
- 5 brass springs on each locking side
- hardened steel eccentric cam with anti-picking protection
- 3 keys
- wide coding options
- suitable for use in fire and smoke safety doors
- long-term durability grade 6 according to EN 1303:2015 - 100.000 test cycles
- max length of the cylinder: 130 mm (65/65 mm)
- extension increment: 5 mm
- asymmetrical cylinders are available with lengths on one side 70, 75 or 80 mm, without exceeding total length of 120 mm (order fulfillment time for individual lengths: 2-3 months)
- classification code according to EN 1303:2015: 1 6 0 B 0 C 3 0
- material:
-
-
- brass, blackened
-
- Products
- Price
- In Stock
- Quantity
-
Profile cylinder AGB 600 30-30, blackenedCode: SB00000391Art. Nr.: CSC60030X30jPrice:From €17.17In Stock: 5 pc.
-
Profile cylinder AGB 600 30-35, blackenedCode: SB00000393Art. Nr.: CSC60030X35JPrice:From €17.63In Stock: 0 pc.
-
Profile cylinder AGB 600 30-40, blackenedCode: SB00000394Art. Nr.: CSC60030X40JPrice:From €17.94In Stock: 0 pc.
-

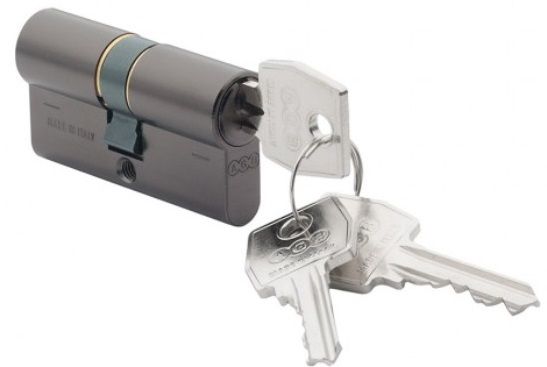

Profile cylinder AGB 600 35-35, blackenedCode: SB00000400Art. Nr.: CSC60035X35JUODPrice:From €17.17In Stock: 4 pc.
-
Profile cylinder AGB 600 40-40, blackenedCode: SB00000402Art. Nr.: CSC600 40-40 MPrice:From €24.85In Stock: 0 pc.
Manufacturer | AGB |
---|---|
profile cylinder type | double cylinder |
locking cylinder standard | Europrofile cylinder |
anti-intruder security | class 0 according to EN1303 |
suitable for use in locking systems | suitable for equal locking systems |
number of locking lugs | 5 |
extension increment | 5 mm |
number of keys | 3 |
fire safety | certified for fire and smoke safety doors |
minimum 1 side length | 30 mm |
maximum 1 side length | 65 mm |
maximum total length | 130 mm |
key duplication | can be duplicated at any locksmith |
key duplication at SB UN PARTNERI Customer service centre | not possible |
material | brass |
