QL-3034 weather seal for wooden windows

QL-3034 weather seal for wooden windows

Product code

MB00000164

View catalogue of manufacturer

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

All prices include VAT

From €1.23

From €1.23

In Stock

Only %1 left

Want to save? CLICK HERE and buy in bulk!

UZMANĪBU!
Blīvgumijas rezervāciju nepilnos ruļļos pirms apmaksas saņemšanas neveicam.
Nepilnus ruļļus atpakaļ neņemam un nemainām.

Reset selection

Would like different processing and/or package?

Another surface finish and/or set:

Quantity:

The selected product is currently out of stock.

QL-3034 weather seal for wooden windows
Manufacturer - SCHLEGEL

Advantages

- excellent memory – returns to original shape after compression
- stability – low / no stretch gained by rigid insert or glass fibre internal cord
- outstanding compression – low compression forces, unaffected by temperature variance, soft and quiet door closure
- acoustics – excellent sound insulation
- thermal conductivity – unrivalled thermal performance, up to 10 times more efficient than other sealants
- paint and stain proof – properties unaffected by standard paints and stains
- protection – unaffected by rot, fungi, UV-light or ozone, dirt-repellent
- temperature – wide operating range under extremely cold and warm weather
- compatible with cleaning agents and all paints and varnishes, including acrylic paints
- efficient installation – zero waste technology, without corner cutting
- suitable also for automatic insertion or fixing

Materials

- polyurethane (PU) foam core - high durability, superior recovery performance
- polyethylene (PE) film - weather and UV-resistant
- glass fibre thread or polypropylene (PP) insert - prevents elongation and shrinkage
- smooth or embossed surface - dirt-repellent

Technical parameters

- milling width: 2.7 - 3 mm
- min. groove depth: 8 mm
- seal gap: 0 - 1.5 mm
- package unit: 400 m x 2 roll
- available finishes: RAL 1001 beige, RAL 7001 silver grey, RAL 8019 grey brown, RAL 9005 black, RAL 9003 signal white

Properties

- compression set: < 15% after 1 hour relief of 50% compression at 70 °C for 24 hours (DIN 53572)
- compression force: approx. 15 N at 25% compression per 100 mm, < 10 N for lip profiles
- tested temperature range: -60 °C to +70 °C
- heat conductivity: 0.06 W/mK at 0 °C
- long-term continuous operation - no change of the length-related and partial joint permeability
- resistance to humidity: complies with DIN 18055, EN 12207 and EN 12208 to 600 Pa at single and French window
- compatibility with paints and varnishes: no adhesion, no hardening, no discolouration
- sound insulation: 43 dB at a window IV68 as a centre seal / 45 dB at a window IV76 as centre and overlap seal
- weather-resistant for up to 20 years
- Classification code according to EN 12365: W 3 6 2 7 6

Show only in-stock products

All prices include VAT

Products
Price
In Stock
Quantity

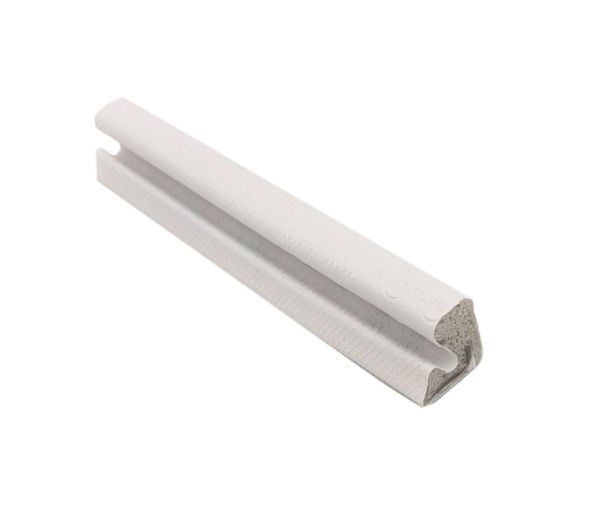

Weathr seal Schlegel QL-3034, 8,9x5 mm , white RAL9003
Code: SB00013252

Art. Nr.: QL-3034-70-RAL9003

Price:

From €1.23

In Stock: 280 m

Quantity:

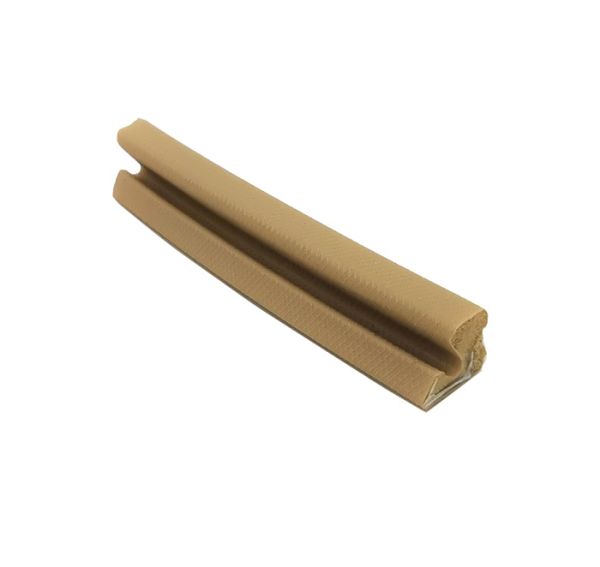

Weather seal Schlegel QL-3034, 8,9x5 mm, beige RAL1001
Code: SB00013250

Art. Nr.: QL-3034-40-RAL1001

Price:

From €1.23

In Stock: 760 m

Quantity:

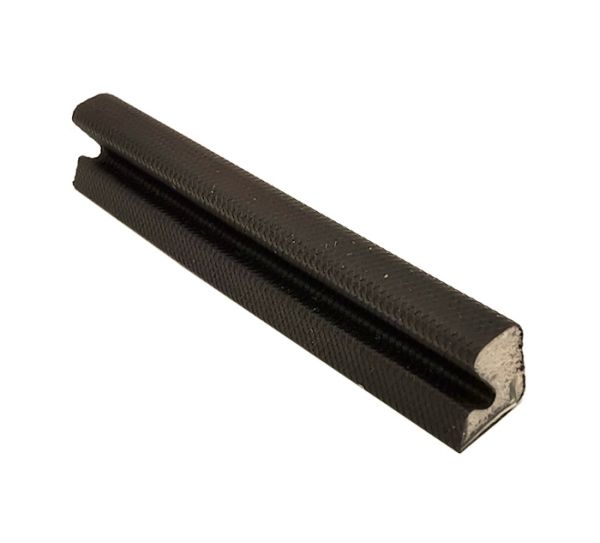

Weather seal Schlegel QL-3034, 8,9x5 mm, brown RAL8019
Code: SB00013251

Art. Nr.: QL-3034-20-RAL8019

Price:

From €1.23

In Stock: 832 m

Quantity:

Technical details

Manufacturer	SCHLEGEL
seal type	weather seal
purpose	for windows
installation type	fitted in groove
cutter	face
leaf material	wood
operational temperature range	no -60 °C līdz +70 °C
packaging	rullis 400 m
fire safety	not suitable for fire safety doors
stop clearance	0.0 - 1.5 mm
rebate seal width	8.5 mm
material	polyurethane foam
