Set of adjustable hinges for exterior doors with acoustic seal BAKA Protect 4060 3D FD MSTS

Product code
MB00001200
SIMONSWERK View catalogue of manufacturer

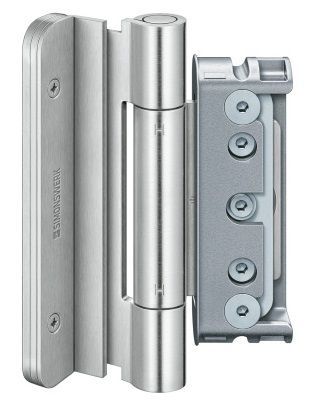

main product photo
All prices include VAT
From €100.64
From €100.64
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Questions and answers
Durvju vērtņu virzieni saskaņā ar DIN 107
Eņģu klasifikācija saskaņā ar EN 1935
Eņģu slodzes izturība
Durvju profilu veidi
Būvizstrādājumu regula ES 305/2011
Set of adjustable hinges for exterior doors with acoustic seal BAKA Protect 4060 3D FD MSTS
Manufacturer - SIMONSWERK (Germany)

    • suitable for doors with acoustic seal
    • suitable for fire safety doors, doors with high level of acoustic insulation and doors with anti-intruder security
    • efficient and economic fitting, using the well-developed templates
    • suitable also for doors with thin overlap
    • integrated security pin (MSTS) for doors opening outwards
    • high-quality maintenance-free bearings
    • 3-dimensional adjustability: side (+/- 3 mm), height (+/- 3 mm), depth (+/- 3 mm)
    • threaded frame pin
    • concealed receiver in door leaf
    • knuckle length: 140 mm, diameter: 20 mm
    • milling diameter: 20 mm
    • overlap width: 18 mm, 20 mm
    • available in sets of 3 hinges: 1 height-adjustable hinge, 2 depth-adjustable hinges
    • max load capacity:
      • 160 kg with 2 hinges (leaf 1000 x 2000 mm; distance between 1st and 2nd hinge reference line: 1435 mm)
      • if using 3 hinges (standard set), load capacity increases to 180 kg
      • if necessary, a 4th hinge can be ordered separately
    • material:
      • steel, light galvanised
      • brown (H9)

Classification code according to DIN EN 1935
2 7 3 1 1 *1 0 10
1 depending on surface finish
Installation and adjustment
Eņģu montāžas parametri saskaņā ar DIN 18868 Eņģu montāžas parametri saskaņā ar DIN 18868
BAKA Protect 4000 Assembly instructions BAKA Protect 4000 Assembly instructions
BAKA Protect 4000 3D adjustment BAKA Protect 4000 3D adjustment

Documents
Hinge classification (LV) Hinge classification (LV)
Declaration of Performance for Simonswerk_BAKA/SIKU Declaration of Performance for Simonswerk_BAKA/SIKU
Simonswerk hinges_European Union Declaration of Conformity (CE) Simonswerk hinges_European Union Declaration of Conformity (CE)

Additional information
Hinge load values, SIMONSWERK recommendations Hinge load values, SIMONSWERK recommendations

All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Visma Quote
    Entrance door hinges BAKA protect 4060 3D FD MSTS, light galvanized
    Entrance door hinges BAKA protect 4060 3D FD MSTS, light galvanized
    Code: SB00008763
    Art. Nr.: 5 080857 0 11085
    Price:
    From €100.64
    In Stock: 0 kit

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. Decorative sleeves BAKA No.12, matt nickel/F2
    Decorative sleeves BAKA No.12, matt nickel/F2
    Code: SB00008786
    Art. Nr.: 5 100680 0 01885
    Price:
    From €11.65
    In Stock: 11 kit
  2. BAKA Decorative sleeves Nr.12, browned
    BAKA Decorative sleeves Nr.12, browned
    Code: SB00008787
    Art. Nr.: 5 100680 0 02185
    Price:
    From €11.65
    In Stock: 10 kit
  3. BAKA Decorative sleeves Nr.12, gold
    BAKA Decorative sleeves Nr.12, gold
    Code: SB00008788
    Art. Nr.: 5 100680 0 02485
    Price:
    From €11.65
    In Stock: 29 kit
  4. BAKA Decorative sleeves Nr.12, matt chrome, F1
    BAKA Decorative sleeves Nr.12, matt chrome, F1
    Code: SB00008789
    Art. Nr.: 5 100680 0 03785
    Price:
    From €11.65
    In Stock: 10 kit
  5. BAKA Decorative sleeves Nr.12, white
    BAKA Decorative sleeves Nr.12, white
    Code: SB00008790
    Art. Nr.: 5 100680 0 07085
    Price:
    From €7.05
    In Stock: 14 kit
  6. BAKA Decorative sleeves Nr.12, browned
    BAKA Decorative sleeves Nr.12, browned
    Code: SB00008791
    Art. Nr.: 5 100680 0 07185
    Price:
    From Special Price €6.24 was €6.93
    This price applies only to items in stock. For larger quantities price is calculated upon request.
    In Stock: 9 kit
  7. Cover for BAKA4000 hinge construction, grey
    Cover for BAKA4000 hinge construction, grey
    Code: SB00008723
    Art. Nr.: 5 080491 0 07210
    Price:
    From €0.69
    In Stock: 24 pc.
  8. Cover for BAKA4000 hinge construction, beige
    Cover for BAKA4000 hinge construction, beige
    Code: SB00008725
    Art. Nr.: 5 080491 0 08310
    Price:
    From Special Price €0.48 was €0.69
    This price applies only to items in stock. For larger quantities price is calculated upon request.
    In Stock: 32 pc.
  9. Cover for BAKA4000 hinge construction, brown
    Cover for BAKA4000 hinge construction, brown
    Code: SB00008726
    Art. Nr.: 5 080491 0 08610
    Price:
    From €0.69
    In Stock: 0 pc.
  10. Cover for BAKA4000 hinge construction, white
    Cover for BAKA4000 hinge construction, white
    Code: SB00008722
    Art. Nr.: 5 080491 0 07010
    Price:
    From Special Price €0.48 was €0.69
    This price applies only to items in stock. For larger quantities price is calculated upon request.
    In Stock: 3 pc.
  11. Visma Quote
    Cover for BAKA 4000 hinge construction, black
    Cover for BAKA 4000 hinge construction, black
    Code: SB00008724
    Art. Nr.: 5 080491 0 07310
    Price:
    From €0.69
    In Stock: 0 pc.
Manufacturer SIMONSWERK
hinge type exterior door hinge
hinge shape rounded
door construction for rebated doors
overlap 18 / 20 mm
door direction universal use for DIN right and left hand doors
class as per EN 1935 class 2
fire safety suitable for fire and smoke safety doors
bundling options hinge backplates and covers in suitable colour
leaf material wood
load capacity high
leaf maximum weight 180 kg
suitable for aluminium frames not suitable
suitable for steel frames not suitable
suitable for industrial frames suitable
suitable for timber frames suitable
anti-corrosion resistance certified according to EN 1935 - depending on finish
anti-corrosion resistance in accordance with EN 1935 class 4 - very high
sound insulation yes, with acoustic seal
adjustment adjustable
adjustment type with eccentrics
groove for leaf seal yes
anti-intruder protection yes, integrated safety pin
cutter diameter 20 mm
knuckle length 140 mm
knuckle diameter 20 mm
collar ring 30 mm
spindle diameter 10 mm
height 140 mm
maintenance not required (self-lubricating bearings)
installation template available for sale or rent
fastening elements must be ordered separately
material steel / stainless steel
