Handle for framed doors FSB 09 1004 S8

Product code
PR-091004-S8
FSB View catalogue of manufacturer
main product photo
From €88.45
To order this handle, please select the required items for the set manually. Handles and handle roses are sold individually. For one double-sided non-locking handle set, you need to select 2 handles and 2 handle roses, as well as 1 spindle for a double-sided handle in a size appropriate to the thickness of the door. For a locking set, please add the required number of PZ key roses.
Reset selection
FSB 1004 ASL door handle (1 pc.) without spindle, aluminium anodised black S8   €51.49
Code: SB00019687
Art. Nr.: 0 10 1004 04600 0810
In Stock. Available: 41 gab.
Handle rose for framed doors FSB 09 0001 (1pc.), black S8   €36.97
Code: SB00020356
Art. Nr.: 0 09 0001 21143 0810
Out of stock. Estimated delivery time: 10 weeks.
Item non-returnable as it is made to the Buyer’s/Consumer's specifications

Price as configured €88.45

kit
The selected product is currently out of stock.
Questions and answers
Slēgšanas veidi. Slēdzenes un rokturu garnitūras.
Rokturu konstrukcija profilrāmju (šaurprofila) durvīm
Handle for framed doors FSB 09 1004 S8
Manufacturer - FSB (Germany)
Design: David Chipperfield

For the talented architect David Chipperfield the idea to create his own line of handles stems from his ambition to fit buildings with handles that represent his architectural philosophy. Chipperfield's handle design displays influences from the logical clarity of both the modernist architecture and philosopher Ludwig Wittgenstein. Model 1004 is based on a formal concept that complies with all functional requirements, and thus illustrates the architect's philosophy in both private and public spaces.
  • handle with oval rose for framed doors
  • innovative, sturdy FSB ASL® construction with concealed handle guide ring
  • corresponds to grade 4 in use and durability according to EN 1906, suitable for heavy-duty doors and recommended for public buildings
  • construction durability tested on 1'000'000 cycles of use
  • integrated spring for lock load release with active angle of 45°
  • concealed handle guide ring
  • stainless steel reinforced sub-construction
  • handle length 133 mm
  • distance from surface of rose to external surface of handle: 57 mm
  • rose: oval, 32.5 x 70 mm; thickness: 14 mm
  • concealed screws
  • handle spindle 8 mm
  • suitable spindle must be selected depending on door thickness and type of handle set (spindle 05 0118 for double-sided set / spindle 05 0115 for single-sided set)+
  • may be combined with oval PZ key rose, size 32.5 x 70 mm, thickness: 7 cm
  • all items are sold individually - 1 pc. (double-sided set requires 2 handles and 2 roses)
  • material: aluminium anodised, textured matt S8 black
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. FSB 1004 ASL door handle (1 pc.) without spindle, aluminium anodised black S8
    FSB 1004 ASL door handle (1 pc.) without spindle, aluminium anodised black S8
    Code: SB00019687
    Art. Nr.: 0 10 1004 04600 0810
    Price:
    From €51.49
    In Stock: 41 pc.

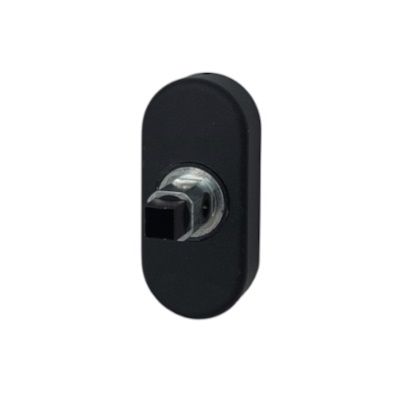

  2. Handle rose for framed doors FSB 09 0001 (1pc.), black S8
    Handle rose for framed doors FSB 09 0001 (1pc.), black S8
    Code: SB00020356
    Art. Nr.: 0 09 0001 21143 0810
    Price:
    From €36.97
    In Stock: 0 pc.
    Visma Quote

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. PZ key rose for framed doors FSB 17 1757 (1 pc.), alum. textured matt S8 black
    PZ key rose for framed doors FSB 17 1757 (1 pc.), alum. textured matt S8 black
    Code: SB00001652
    Art. Nr.: 0 17 1757 00010 0810
    Price:
    From €12.93
    In Stock: 18 pc.

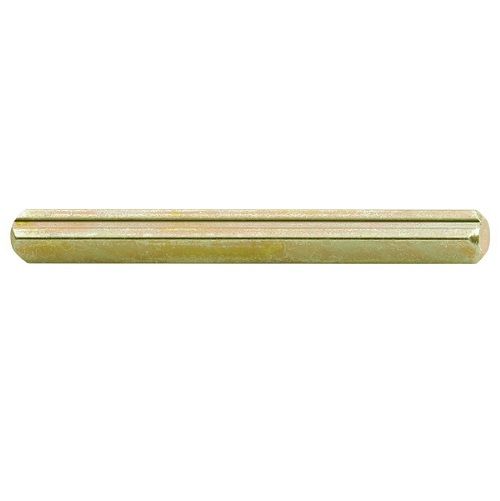

  2. Spindle for double-sided handle 8x120 mm, glavanised
    Spindle for double-sided handle 8x120 mm, glavanised
    Code: SB00022010
    Art. Nr.: 0 05 0118 00834 5700
    Price:
    From €2.52
    In Stock: 0 pc.
    Visma Quote
  3. Spindle for double-sided handle 8x140 mm, galvanised
    Spindle for double-sided handle 8x140 mm, galvanised
    Code: SB00022013
    Art. Nr.: 0 05 0118 00842 5700
    Price:
    From €2.52
    In Stock: 0 pc.
    Visma Quote
  4. Spindle for double-sided handle 8x160 mm, galvanised
    Spindle for double-sided handle 8x160 mm, galvanised
    Code: SB00022014
    Art. Nr.: 0 05 0118 00850 5700
    Price:
    From €2.52
    In Stock: 0 pc.
    Visma Quote
  5. Spindle for double-sided handle 8x175 mm, galvanised
    Spindle for double-sided handle 8x175 mm, galvanised
    Code: SB00022015
    Art. Nr.: 0 05 0118 00856 5700
    Price:
    From €2.52
    In Stock: 0 pc.
    Visma Quote
  6. Spindle for single-sided handle 8x60 mm, galvanised
    Spindle for single-sided handle 8x60 mm, galvanised
    Code: SB00000497
    Art. Nr.: 0 05 0115 00810 5700
    Price:
    From €7.39
    In Stock: 0 pc.
    Visma Quote
  7. Spindle for single-sided handle 8x70 mm, galvanised
    Spindle for single-sided handle 8x70 mm, galvanised
    Code: SB00000499
    Art. Nr.: 0 05 0115 00814 5700
    Price:
    From €7.60
    In Stock: 0 pc.
    Visma Quote
  8. Spindle for single-sided handle 8x80 mm, galvanised
    Spindle for single-sided handle 8x80 mm, galvanised
    Code: SB00000500
    Art. Nr.: 0 05 0115 00818 5700
    Price:
    From €7.83
    In Stock: 8 pc.
  9. Spindle for single-sided handle 8x90 mm, galvanised
    Spindle for single-sided handle 8x90 mm, galvanised
    Code: SB00000501
    Art. Nr.: 0 05 0115 00822 5700
    Price:
    From €7.83
    In Stock: 6 pc.
Manufacturer FSB
Series FSB 1004
designer David Chipperfield
material aluminium anodised blasted
leaf material for framed doors
purpose for interior doors / for exterior doors
set split roses
class as per EN 1906 class 4
load capacity high
suitable for emergency exits related model available, complies with EN 179 requirements
door direction universal use for DIN right and left hand doors
compatibility standard German (DIN)
handle construction with stable fixed pivot axis
material: sub-construction reinforced with stainless steel
handle spring integrated holding spring to cushion the push and pull forces
locking function PZ / BAC
handle length 133 mm
handle square spindle size 8 mm
Set lever handles on both sides
door thickness 39-58 mm / 59-78 mm / 79-98 mm / 99-118 mm
backplate/rose size 32,5 x 70 mm
fastening elements must be ordered separately
