Door knob set TARGA/K-103 K7 for heavy-duty doors
Product code
MB00008721
All prices include VAT
From
€58.01
From
€58.01
Only %1 left
Stainless steel handle with door knob for heavy-duty doors TARGA/K-103
Manufacturer - DIECKMANN (Germany)- steel sub-construction with click-on rose and supporting lugs Ø 8 mm
- corresponds to grade 4 in use and durability according to EN 1906
- concealed screws M5 with unscrewing protection
- suitable for both left and right hand doors
- with fixed joint in self-lubricating bearing
- door thickness: 40-65 mm (WC 40-59 mm)
- handle length: 142 mm
- handle diameter: 22 mm
- spindle square: 8 mm
- backplate size: 173 x 54 x 8 mm
- centre distance: 72 mm
- material: stainless steel matt satin
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

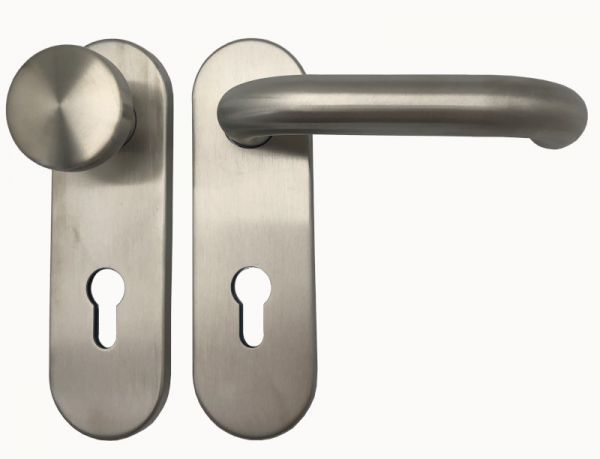

Door handle set TARGA/K-103 with knob K7 and short backplates PZ 8/72, stainless steelCode: SB00011356Art. Nr.: 5603/0772/00Price:From €58.01In Stock: 0 kit
| Manufacturer | DIECKMANN |
|---|---|
| material | stainless steel |
| purpose | for interior doors / for exterior doors |
| leaf material | for wooden and metal doors |
| construction | lever handle / inactive door knob |
| set | short backplates |
| load capacity | high |
| class as per EN 1906 | class 4 |
| fire safety | related fireproof model available |
| suitable for emergency exits | related model available, complies with EN 179 requirements |
| handle construction | with fixed joint in self-lubricating bearing |
| handle spring | integrated holding spring to cushion the push and pull forces |
| material: sub-construction | steel |
| door direction | universal use for DIN right and left hand doors |
| compatibility standard | German (DIN) |
| door thickness | 40-65 mm (WC 40-59 mm) |
| locking function | PZ - with profile cylinder hole |
| centre distance PZ | 72 mm |
| centre distance BB | 72 mm |
| centre distance WC | 78 mm |
| handle length | 142 mm |
| handle diameter | 22 mm |
| handle square spindle size | 8 mm |
| backplate/rose shape | round |
| backplate/rose size | 54 x 173 |
| backplate/rose thickness | 8 mm |
| distance from leaf surface to outer edge of handle | 68 mm |
| door knob shape | round |
| door knob size | Ø50 mm |
| installation type | screw on |
| fastening type | concealed screws, with unscrewing protection |
| centring lug diameter | 8 mm |
| fastening elements | included in set |
