Handle for fireproof doors LIVERPOOL-II BK3 FS
Product code
MB00000980
All prices include VAT
From
€41.02
From
€41.02
Only %1 left

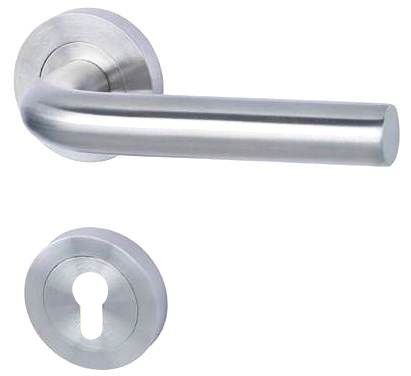

Stainless steel handle for fireproof doors LIVERPOOL-II BK3 FS
Manufacturer - Südmetall (Germany)
СERTIFICATION ACCORDING TO EN 1906 NOT AVAILABLE.
Manufacturer - Südmetall (Germany)
-
- suitable for fireproof doors
- high-quality durable material
- keyhole options: PZ, BB, WC
- spindle square: 8 / 9 / 8 mm (Ø 9 mm in spindle centre - lock installation site)
- rose diameter: 52 mm
- distance between lugs: 38 mm
- click-on roses Ø 52 mm
- set suitable for standard doors with leaf thickness 38 - 48 mm
- integrated spring to cushion the push and pull forces
- nylon sub-construction with 7 mm fixing lugs
- metric thread connecting bolts
- suitable for use in heavy-duty doors with high usage without fire safety requirements (by changing the spindle)
- corresponds to grade 3 in load capacity according to EN 1906
- can be certified for fire safety as part of door construction
- material: stainless steel
СERTIFICATION ACCORDING TO EN 1906 NOT AVAILABLE.
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
Liverpool II-R handle set for fire-proof doors, PZ, BK3 FS, stainless steelCode: SB00004710Art. Nr.: 28.05.6810FSPrice:From €41.02In Stock: 0 set
| Manufacturer | SÜDMETALL |
|---|---|
| material | stainless steel |
| purpose | for interior doors |
| leaf material | for wooden and metal doors |
| construction | lever handles on both sides |
| set | split roses |
| load capacity | high |
| class as per EN 1906 | class 3 |
| fire safety | to be certified in door tests as component of equipment |
| handle spring | integrated holding spring to cushion the push and pull forces |
| material: sub-construction | nylon |
| door direction | universal use for DIN right and left hand doors |
| compatibility standard | German (DIN) |
| door thickness | 39-48 mm |
| locking function | PZ / BB / WC |
| handle square spindle size | 8-9-8 mm |
| backplate/rose shape | round |
| backplate/rose size | Ø52 mm |
| installation type | screw on |
| fastening type | concealed screw fitting |
| centring lug diameter | 7 mm |
