Door knob set RIVA-108 K7 for heavy-duty doors
Product code
MB00009056
All prices include VAT
From
€56.94
From
€56.94
Only %1 left
Stainless steel door handle with knob RIVA-108 K7
Manufacturer - DIECKMANN (Germany)- steel/plastic sub-construction with click-on rose and supporting lugs Ø 8 mm
- corresponds to grade 4 in use and durability according to EN 1906
- concealed screws M5 with unscrewing protection
- automatic locking and release mechanism guarantees easy installation even in heavy doors
- suitable for both left and right hand doors
- with fixed joint in self-lubricating bearing
- door thickness: 40-65 mm (WC 40-59 mm)
- handle length - 136 mm
- handle diameter: 22 mm
- spindle square - 8 mm
- rose diameter: 55 mm
- material - stainless steel matt satin
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

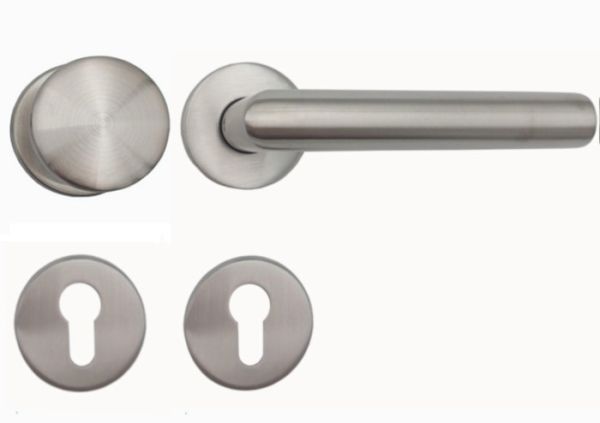

RIVA 108 WE door handle set with roses PZ and doorknob K7, 8mm, class 4, stainless steelCode: SB00011377Art. Nr.: 5908/0786/00Price:From €56.94In Stock: 0 kit
Additional products
- Products
- Price
- In Stock
- Quantity
-
Screw M5 x 60, DIN 965, ZN galvanized (DB 50-80mm)Code: SB00006974Art. Nr.: 965-5x60Price:From €0.12In Stock: 90 pc.
-
Screw 7991 M5x70 mm, stainless steel (DB 60-90mm)Code: SB00006955Art. Nr.: 7991 M5x70 A2Price:From €0.38In Stock: 91 pc.
-
Screw 7991 M5x80 mm, stainless steel (DB 70-100mm)Code: SB00006956Art. Nr.: 799125 80Price:From €0.44In Stock: 74 pc.
-
Screw 7991 M5x90 mm, stainless steel (DB 80-110mm)Code: SB00006957Art. Nr.: 799125 60Price:From €0.73In Stock: 96 pc.
-
Screw 7991 M5x100 mm, stainless steel (DB 90-120mm)Code: SB00006952Art. Nr.: 799125 100Price:From €2.61In Stock: 13 pc.
-
Screw M5x115 mm (DB 35-135mm)Code: SB00009576Art. Nr.: 818909800011Price:From €3.45In Stock: 30 pc.
| Manufacturer | DIECKMANN |
|---|---|
| material | stainless steel |
| purpose | for interior doors / for exterior doors |
| leaf material | for wooden and metal doors |
| construction | lever handle / inactive door knob |
| set | split roses |
| load capacity | high |
| class as per EN 1906 | class 4 |
| fire safety | related fireproof model available |
| handle construction | with fixed joint in self-lubricating bearing |
| handle spring | integrated holding spring to cushion the push and pull forces |
| material: sub-construction | steel |
| door direction | universal use for DIN right and left hand doors |
| compatibility standard | German (DIN) |
| door thickness | 40-65 mm (WC 40-59 mm) |
| locking function | PZ - with profile cylinder hole |
| handle length | 130 mm |
| handle diameter | 22 mm |
| handle square spindle size | 8 mm |
| backplate/rose shape | round |
| backplate/rose size | Ø55 mm |
| backplate/rose thickness | 8 mm |
| distance from leaf surface to outer edge of handle | 67 mm |
| door knob shape | round |
| door knob size | Ø50 mm |
| installation type | screw on |
| fastening type | concealed screws, with unscrewing protection |
| centring lug diameter | 8 mm |
| fastening elements | included in set |
