REPAIR multi-point lock
Product code
MB00001579
All prices include VAT
From
€135.54
From
€135.54
In Stock
Only %1 left
REPAIR multi-point lock
Manufacturer – KFV-
- repair multi-point lock for damaged exterior doors in apartments or residential buildings
- manufacturer-independent system
- able to substitute the majority of key or handle-operated multi-point locks

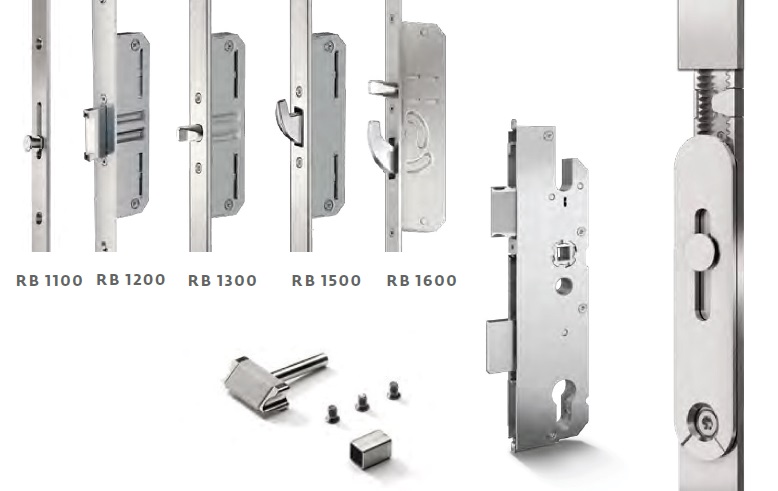

- available with comfort lug, H-shape bolt, round bolt, hooked bolt or combination of round bolt and hooked bolt
- anti-intruder security according to DIN 18104-2
- face plate set compatible with handle or central key set
- ultra thin connection with SIEGENIA TITAN AF gearing - connected without milling
- stainless steel face plate
- central lock set is sold separately with various spindle depths: 35-65 mm
- suitable for all common door heights from 1625 to 2400 mm
- face plate width: 16 mm, 20 mm
- standard centre distance: 92 mm (72 mm available on request)
- standard milling for central lock: 8250 K1 (corresponds with AS 2300/2500/2600)
Set
-
- repair lock comprises the middle part of the face plate, a set of the central lock with fastening components, and the upper and lower face plate with bolt
- the central lock must be ordered separately and is screwed on the middle part of the face plate
- an extension is available as necessary for extra high doors
- the thin connector for U-shape face plates is located in the frame
- key or handle-operated multi-point locks have different central lock sets; face plate sets are the same.
Advantages for door manufacturers
-
- face plate set is compatible with handle or central lock set
- the ultra-thin connection with SIEGENIA TITAN AF gearing reduces the amount of milling necessary
- stainless steel face plate provides an elegant look without corrosion in the seams
- the central lock set is sold separately with various spindle depths
- locks with a key and with a handle
Advantages for users
-
- possible to substitute locks from various manufacturers
- suitable for all common door heights from 1625 to 2400 mm
- free to choose handle position

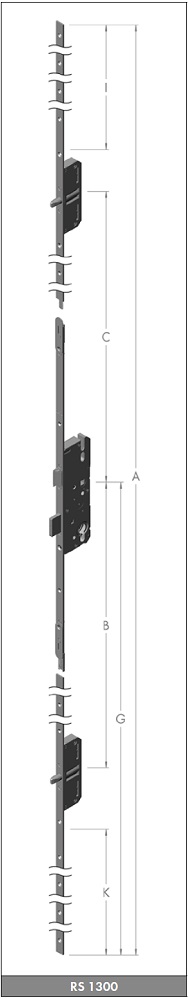

Sizes:
| A Total length (mm) |
G Distance from handle centre to bottom (mm) |
B Distance from handle centre to lower part centre (mm) |
C Distance from handle centre to upper part centre (mm) |
K Max face plate shortening from bottom (mm) |
I Max face plate shortening from top (mm) |
| 1210 - 3015 |
675 - 1505 |
505-605 | 505-620 | 445 | 445 |
| 675-960 | 690-960 |
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
REPAIR lock- upper and lower part RB1300 F16 (corresponds with AS2300)Code: SB00003841Art. Nr.: 3481231Price:From €135.54In Stock: 2 pc. -
REPAIR lock- upper and lower part RB1300 F20 (corresponds with AS2300)Code: SB00003842Art. Nr.: 3481232Price:From €135.54In Stock: 4 pc.
| Manufacturer | KFV |
|---|---|
| lock type | multi-point lock for hinged doors |
| lock operation | mechanical |
| latch type | hooks/bolts |
| installation type | mortise |
| purpose | for exterior doors |
| leaf material | for wooden, metal and framed doors |
| load capacity | high |
| class as per EN 12209 (DIN 18251) | not certified |
| fire safety | not suitable for fire safety doors |
| compatibility standard | German (DIN) |
| possible spindle depth | 35 - 65 mm |
| door direction | universal use for DIN right and left hand doors |
| locking elements | polished nickel-coated |
| lock case | galvanised closed |
| locking function | PZ - with profile cylinder hole |
| centre distance PZ | 92 mm |
| handle square spindle size | 8 / 10 mm |
| face plate width | 16 / 20 mm |
| face plate length | 1625 - 2400 mm |
