Concealed hinges for residential doors ANSELMI AN 164 3D FVZ 14/40 with recessed frame facings
Product code
MB00009756
All prices include VAT
From
€23.35
From
€23.35
Only %1 left
Concealed hinges for residental doors ANSELMI AN164 3D FVZ 14/40 with recessed frame facings
Manufacturer - SIMONSWERK GROUP / ANSELMI (Italy)- in door leaf and frame completely integrated hinges for interior doors
- suitable for unrebated wooden residential doors with 40 mm door thickness
- recessed frames up to 14 mm
- for timber, aluminium and casing frames
- 3D adjustment: side (+/- 1,5 mm), compression (+/- 1,0 mm) and height (+/- 2,5 mm)
- may be adjusted without removing the door from its frame
- suitable for both left and right hand doors
- maintenance-free bearings
- load capacity: 60 kg (refers to the use of 2 hinges per door leaf 900 x 2100 mm)
- opening angle: 180º
- overall length: 130 mm
- wight (door part / frame part): 30 / 30 mm
- cutter diameter: 16 mm
- central installation
- material: zamak
- standard finishes:
- satin chrome (AN 014)
- black (AN 018)
- finishes available on request:
- antique bronze (AN 035)
- light bronze (AN 016)
- medium bronze (AN 051)

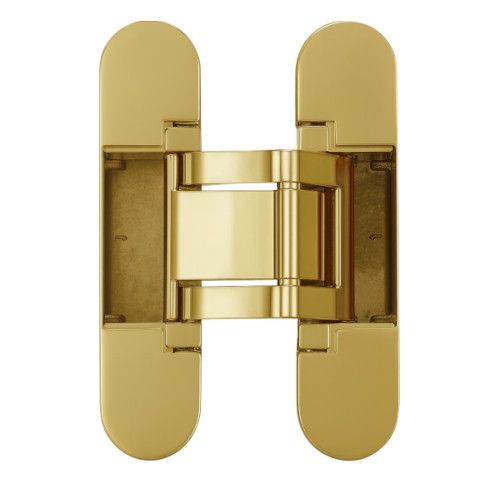

- polished brass (AN 037)
- satin nickel (AN 044)
- aluminium chrome (AN 036)
- polished chrome (AN 039)
- traffic white RAL 9016 (AN 049)
- anthracite (AN 050)
- copper (AN 052)
Permissible load values with diffrerent leaf widht and height ratios
TECHNICAL DOCUMENTATION
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

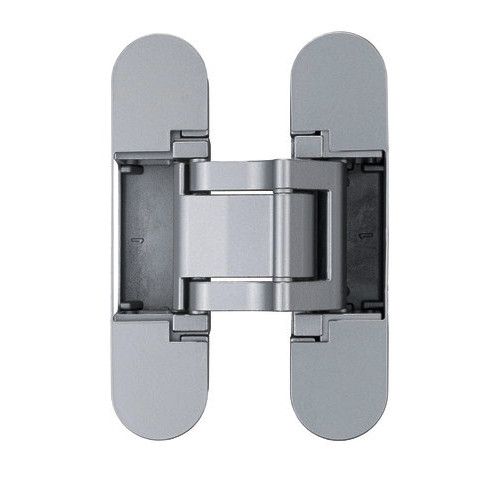

Concealed hinge ANSELMI AN 164 3D FVZ 14/40, satin chromeCode: SB00025439Art. Nr.: 8059606383965Price:From €23.35In Stock: 32 pc. -
Concealed hinge ANSELMI AN 164 3D FVZ 14/40, blackCode: SB00025441Art. Nr.: 8059606383996Price:From €23.35In Stock: 30 pc.
| Manufacturer | SIMONSWERK |
|---|---|
| hinge type | concealed hinge |
| hinge shape | rounded |
| door construction | for non-rebated doors |
| door direction | universal use for DIN right and left hand doors |
| class as per EN 1935 | not certified |
| fire safety | not suitable for fire and smoke safety doors |
| door thickness | 40 mm |
| purpose | for functional doors with cladding |
| leaf material | wood |
| load capacity | middle |
| leaf maximum weight | 60 kg |
| suitable for aluminium frames | suitable |
| suitable for steel frames | not suitable |
| suitable for industrial frames | suitable using additional mounting parts |
| suitable for timber frames | suitable |
| anti-corrosion resistance | not certified |
| adjustment | adjustable |
| adjustment type | may be adjusted without removing door from its frame |
| groove for leaf seal | no |
| anti-intruder protection | yes |
| cutter diameter | 16 mm |
| collar ring | 27 mm |
| height | 125 mm |
| Vērtnes daļas frēzējuma dziļums | 40.5 mm |
| Kārbas daļas frēzējuma dziļums | 39 mm |
| Apšuvuma biezums | līdz 14 mm |
| Vērtnes daļas platums | 30 mm |
| Kārbas daļas platums | 30 mm |
| maintenance | not required (self-lubricating bearings) |
| installation template | available for sale or rent |
| fastening elements | must be ordered separately |
| material | ZAMAK |
