Concealed hinges for interior doors TECTUS TE 340 3D
Product code
MB00000011
All prices include VAT
From
€52.88
From
€52.88
In Stock
Only %1 left

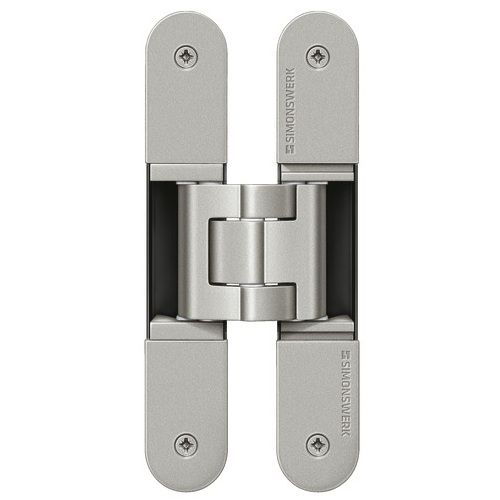

Concealed hinges for interior doors TECTUS TE 340 3D
Manufacturer - SIMONSWERK (Germany)
Installation
Please, note the specifics for each type of door frame:
Manufacturer - SIMONSWERK (Germany)
-
- 3-dimensional adjustability: side (+/- 3 mm), depth (+/- 1.5 mm) and height (+/- 3 mm)
- suitable for both left and right hand doors
- opening angle: 180°
- height: 160 mm
- milling Ø: 24 mm
- max load: 80 kg (leaf 1000 x 2000 mm with 2 hinges; distance between 1st and 2nd hinge reference line: 1435 mm)
- may be adjusted without removing the door from its frame
- equal cutter size for leaf and frame parts
- maintenance-free bearings
- CE and IFT certified, UL certified
- material:
-
-
- plastic coating F1 tone
- plastic coating F2 tone
- metallic, bronze tone
- brass-plated
- black
- white
- stainless steel tone
-
Installation
Please, note the specifics for each type of door frame:
- block frame:
no additional installation equipment required
- casing frame:
fixing plate TECTUS TE 340 3D FZ must be used for installation
- metal frame:
receiver TECTUS TE 340 3D SZ must be used for installation
- aluminium frame:
the manufacturer's original fixing plate must be used for installation
Montāžas instrukcijas
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
TECTUS TE 340 3D concealed hinge F1Code: SB00008900Art. Nr.: 5 400605 0 12402Price:From €52.88In Stock: 109 pc. -
TECTUS TE 340 3D concealed hinge F2Code: SB00008901Art. Nr.: 5 400605 0 12502Price:From €52.88In Stock: 91 pc.
-
TECTUS TE 340 3D concealed hinge, brass colouredCode: SB00008905Art. Nr.: 5 400605 0 03002Price:From €119.40In Stock: 3 pc. -
TECTUS TE 340 3D concealed hinge, blackCode: SB00008909Art. Nr.: 5 400605 0 10702Price:From €71.56In Stock: 11 pc.
-
TECTUS TE 340 3D concealed hinge, bronze metallicCode: SB00008913Art. Nr.: 5 400605 0 16802Price:From €82.15In Stock: 0 pc.
-
TECTUS TE 340 3D concealed hinge, whiteCode: SB00008908Art. Nr.: 5 400605 0 07002Price:From €81.81In Stock: 7 pc.
Additional products
- Products
- Price
- In Stock
- Quantity
-
TECTUS TE 340 3D FZ/1 fixing plate, galvanizedCode: SB00008878Art. Nr.: 5 400409 0 01006Price:From €10.09In Stock: 4 pc.
| Manufacturer | SIMONSWERK |
|---|---|
| hinge type | concealed hinge |
| hinge shape | rounded |
| door construction | for non-rebated doors |
| door direction | universal use for DIN right and left hand doors |
| class as per EN 1935 | class 3 |
| fire safety | suitable for fire and smoke safety doors |
| leaf material | wood |
| load capacity | high |
| leaf maximum weight | 80 kg |
| suitable for aluminium frames | suitable using additional mounting parts |
| suitable for steel frames | suitable using additional mounting parts |
| suitable for industrial frames | suitable using additional mounting parts |
| suitable for timber frames | suitable |
| anti-corrosion resistance | certified according to EN 1935 - depending on finish |
| adjustment | adjustable |
| adjustment type | may be adjusted without removing door from its frame |
| groove for leaf seal | no |
| anti-intruder protection | yes |
| cutter diameter | 24 mm |
| collar ring | 30 mm |
| height | 160 mm |
| maintenance | not required (self-lubricating bearings) |
| installation template | available for sale or rent |
| fastening elements | included in set |
| material | ZAMAK |
