Concealed hinges INVISACTA IN310190 3D for heavy doors
Product code
MB00001370
All prices include VAT
From
€123.35
From
€123.35
Only %1 left
Concealed hinges for heavy doors INVISACTA IN310190 3D
Manufacturer - OTLAV (Italy)
Manufacturer - OTLAV (Italy)
-
- may be leaf or frame-mounted
- suitable for non-rebated wooden doors
- 3-dimensional adjustability: side (+/- 1.5 mm), depth (+/- 1 mm) and height (+/- 3 mm)
- suitable for both left and right hand doors
- maximum load capacity: 120 kg (2 hinges per leaf, test leaf size: 90 x 210 cm)
- size:190 x 31 / 190 x 31 mm
- depth of the milling in the frame: 29.5 mm
- depth of the milling in the leaf: 35.5 mm
- opening angle: 180°
- fireproof certified: 90'
- 7 joint hinges reduce friction and provide stability, smooth opening/closing and higher load capacity
- durable HT receiver prevents hinge support components from touching, thus ensuring higher hinge durability
- compatible with door closers
- easy 3D adjustment technology with hexagonal key
- mounting screws in hinge are not used for hinge adjustment, therefore the hinge remains stable for a long time and its position - consistently perfect
- compatible with aluminium caps (4 pc. needed for 1 hinge)
- joint hinge material: aluminium
- material ZAMAK:
-
-
- nickel-plated matt
- silver tone (F1)
- chrome-plated polished
- white
- black
- gold-plated polished
-
Montāžas instrukcija
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

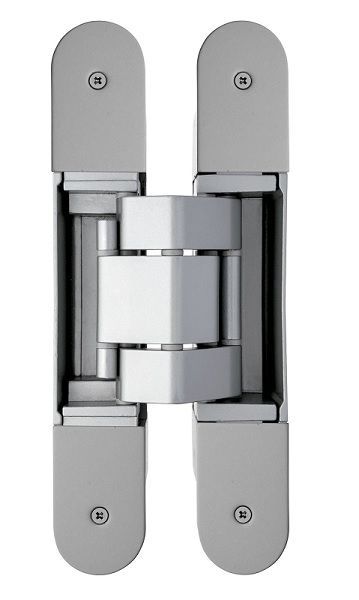

INVISACTA 3D concealed hinge 31x190 mm, matt nickelCode: SB00018794Art. Nr.: IN310190V703Price:From €123.35In Stock: 0 pc.
| Manufacturer | OTLAV |
|---|---|
| hinge type | concealed hinge |
| hinge shape | rounded |
| door construction | for non-rebated doors |
| door direction | universal use for DIN right and left hand doors |
| class as per EN 1935 | class 4 |
| fire safety | suitable for fire and smoke safety doors |
| leaf material | wood |
| load capacity | high |
| leaf maximum weight | 120 kg |
| suitable for aluminium frames | suitable using additional mounting parts |
| suitable for steel frames | suitable using additional mounting parts |
| suitable for industrial frames | not suitable |
| suitable for timber frames | suitable |
| anti-corrosion resistance | certified according to EN 1935 - depending on finish |
| adjustment | adjustable |
| adjustment type | with one hexagonal key |
| groove for leaf seal | no |
| anti-intruder protection | yes, protected hinge design |
| height | 190 mm |
| maintenance | not required (self-lubricating bearings) |
| installation template | available for sale or rent |
| fastening elements | must be ordered separately |
| material | ZAMAK |
