Concealed hinges for heavy-duty doors with cladding TECTUS TE 640 3D A8
Manufacturer - SIMONSWERK (Germany)
Installation
Please, note the specifics for each type of door frame:
Additional products
Mounting bracket TE 626/640 3D A8 BW/1 for heavy-duty non-rebated doors with two-sided cladding up to 20 mm
Mounting instructions
Manufacturer - SIMONSWERK (Germany)
-
- suitable for high-performance and heavy-duty doors with cladding up to 8 mm
- suitable for wooden frame, casing frame and aluminium/metal frame
- 3-dimensional adjustability: side (+/- 3 mm), depth (+/- 1 mm) and height (+/- 3 mm)
- opening angle: 180º

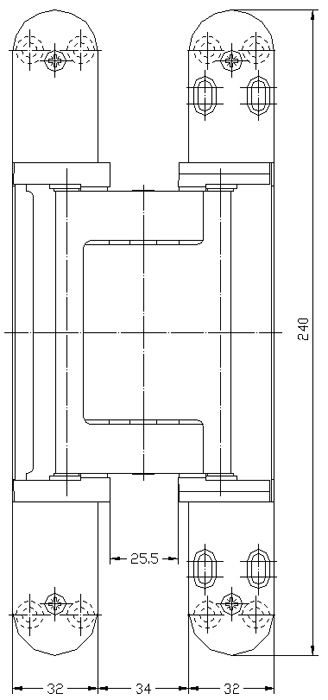

- height: 240 mm
- width: 32/37 mm
- milling Ø: 24 mm
- max load: 160 kg (leaf 1000 x 2000 mm with 2 hinges; distance between 1st and 2nd hinge reference line: 1435 mm)
- may be adjusted without removing the door from its frame
- maintenance-free bearings
- corrosion resistance depending on surface finish: classification in accordance with DIN EN 1670:2007
- UL certified
- material:
-
-
- plastic coating F1 tone
- plastic coating F2 tone
- black tone
- white tone
- bronze tone
- stainless steel tone
- brass-plated, polished
- nickel-plated, polished
- nickel-plated, matt
-
Installation
Please, note the specifics for each type of door frame:
- wood frame: no additional installation equipment required
- casing frame: fixing plate TECTUS TE 640 3D FZ/1 must be used for installation
- metal frame: receiver TECTUS TE 640 3D A8_SZ must be used for installation
- aluminium frame: the manufacturer's original fixing plate must be used for installation
Additional products
Mounting bracket TE 626/640 3D A8 BW/1 for heavy-duty non-rebated doors with two-sided cladding up to 20 mm
- load capacity: 120 kg (2 hinges)
- finish: F1 natural
Mounting instructions
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
TECTUS TE 640 3D A8 concealed hinge F2Code: SB00008924Art. Nr.: 5 400617 0 12502Price:From €165.14In Stock: 0 pc. -
TECTUS TE 640 3D A8 slēptā eņģe, melna RAL9005Code: SB00008963Art. Nr.: 5 400694 0 10702Price:From €176.55In Stock: 0 pc.
-
TECTUS TE640 3D A8 concealed hinge F1Code: SB00008923Art. Nr.: 5 400694 0 12402Price:From €165.14In Stock: 4 pc.
Additional products
- Products
- Price
- In Stock
- Quantity
-
TECTUS TE 640 3D A8 BW/1 mounting bracket, galvanizedCode: SB00022488Art. Nr.: 5 401952 0 12405Price:From €52.60In Stock: 0 pc.
| Manufacturer | SIMONSWERK |
|---|---|
| hinge type | concealed hinge |
| hinge shape | rounded |
| door construction | for non-rebated doors |
| door direction | universal use for DIN right and left hand doors |
| class as per EN 1935 | class 4 |
| fire safety | suitable for fire and smoke safety doors |
| purpose | for functional doors with cladding |
| leaf material | wood |
| load capacity | very high |
| leaf maximum weight | 160 kg |
| suitable for aluminium frames | suitable using additional mounting parts |
| suitable for steel frames | suitable using additional mounting parts |
| suitable for industrial frames | suitable using additional mounting parts |
| suitable for timber frames | suitable |
| anti-corrosion resistance | certified according to EN 1935 - depending on finish |
| adjustment | adjustable |
| adjustment type | may be adjusted without removing door from its frame |
| groove for leaf seal | yes |
| anti-intruder protection | yes |
| cutter diameter | 24 mm |
| collar ring | 30 mm |
| height | 240 mm |
| maintenance | not required (self-lubricating bearings) |
| installation template | available for sale or rent |
| fastening elements | included in set |
| material | ZAMAK |
