Door knob set for fireproof emergency door FSB 79 1031 1410 0829 FS ALU

Name: Door knob set for fireproof emergency door FSB 79 1031 1410 0829 FS ALU
SKU: MB00009578
Price: 221.33 EUR
Availability: InStock

Product code

MB00009578

All prices include VAT

From €221.33

Only %1 left

Reset selection

Would like different processing and/or package?

Another surface finish and/or set:

Quantity:

The selected product is currently out of stock.

Manufacturer - FSB (Germany)
Design: Heike Falkenberg

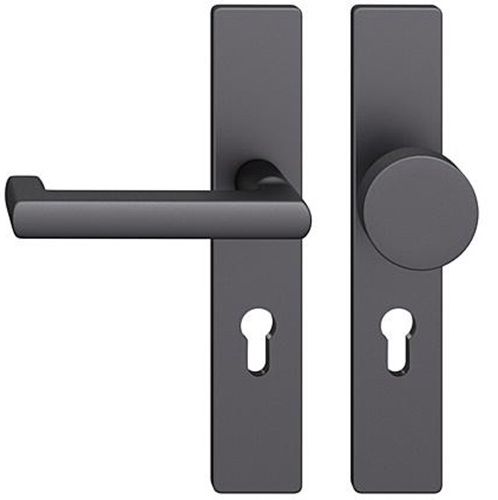

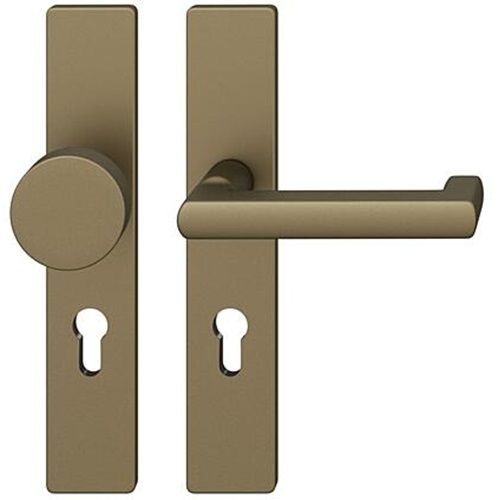

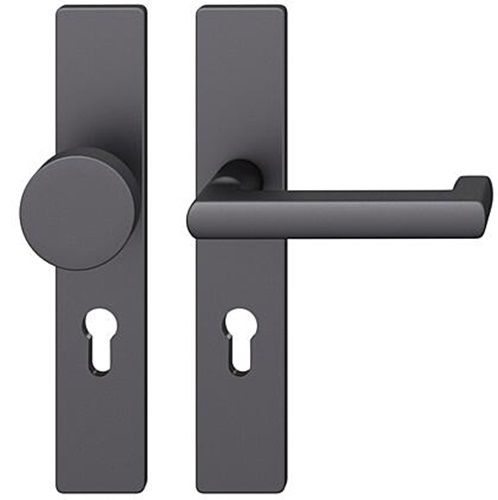

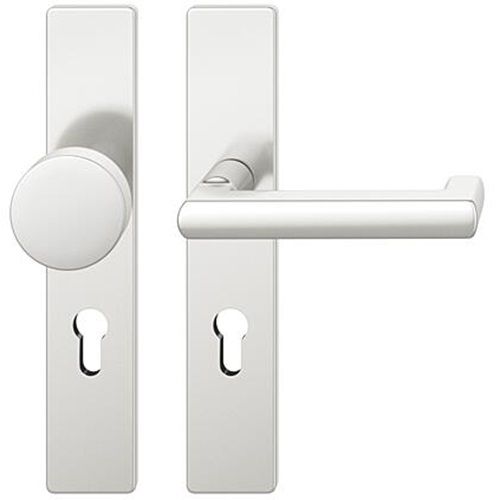

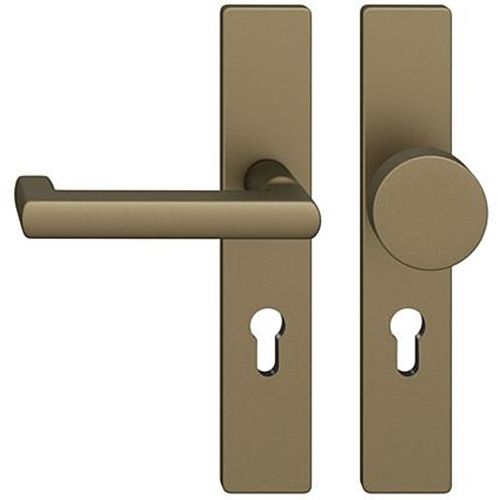

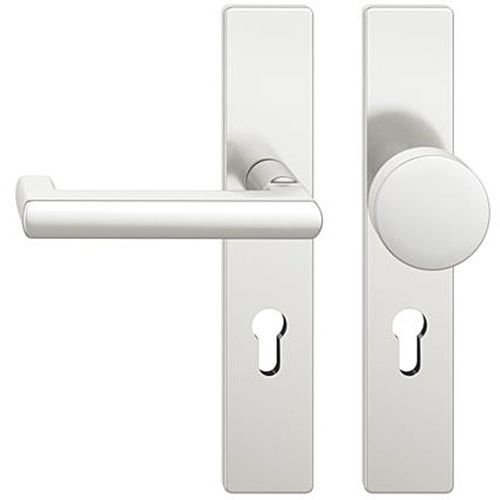

handle/door knob set with long backplates for fireproof emergency doors
FSB AGL® construction with concealed handle guide ring
corresponds to grade 4 in use and durability according to EN 1906, suitable for use in doors with high usage such as in public buildings
construction durability tested on 1'000'000 cycles of use
complies with DIN 18 273 and EN 1634-1 standards for fire safety doors
complies with EN 179 standard for emergency door equipment
integrated spring for lock load release with active angle of 35°
stainless steel reinforced sub-construction
handle length: 142 mm
distance from rose surface to external surface of handle: 58 mm
inactive round door knob FSB 0829
door knob diameter: 50 mm
set with long rectangular backplates
PZ keyhole
backplate size: 45 x 245 mm
backplate thickness: 7 mm
fixed supporting lugs Ø10 mm
distance between fastening centres: 72 / 92 mm
split spindle: 9 mm
standard set suitable for door thickness of 39-48 mm
possible to order sets for door thickness of 29-98 mm
please indicate interior handle direction upon ordering
material: aluminium anodised
available finishes:

- F1 natural aluminium tone
- S5 textured matt, medium dark bronze tone
- S7 textured matt, dark bronze tone
- S8 textured matt, black

Show only in-stock products

All prices include VAT

Manufacturer	FSB
Series	FSB 1031
material	aluminium anodised blasted
leaf material	for wooden and metal doors
purpose	for interior doors / for exterior doors
construction	lever handle / inactive door knob
position of door handle	not offset
load capacity	high
class as per EN 1906	class 4
suitable for emergency exits	complies with 179 - emergency door equipment
fire safety	fire safety certified according to EN1906
handle spring	integrated holding spring to cushion the push and pull forces
handle construction	with stable fixed pivot axis
material: sub-construction	reinforced with stainless steel
compatibility standard	German (DIN)
handle length	142 mm
handle square spindle size	9 mm
set	long backplates
backplate/rose shape	square
locking function	PZ - with profile cylinder hole
Handle direction	please indicate interior handle direction upon ordering
backplate/rose thickness	7 mm
backplate/rose size	45 x 245 mm
centre distance PZ	72 / 92 mm
installation type	screw on
fastening type	concealed screw fitting
