Handle set for fireproof emergency door FSB 79 1134 1410 FS NT

Name: Handle set for fireproof emergency door FSB 79 1134 1410 FS NT
SKU: MB00009610
Price: 462.81 EUR
Availability: InStock

Product code

MB00009610

All prices include VAT

From €462.81

Only %1 left

Reset selection

Would like different processing and/or package?

Another surface finish and/or set:

Quantity:

The selected product is currently out of stock.

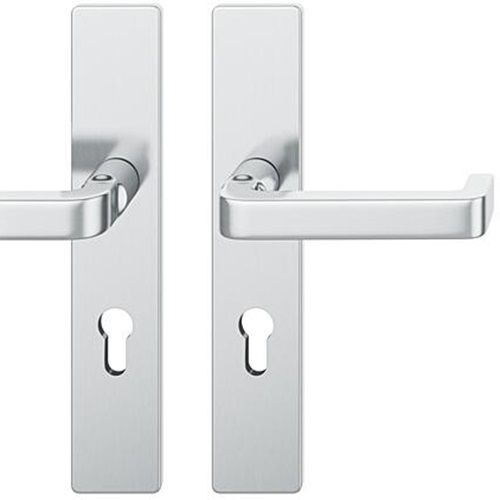

Fireproof handle for emergency doors FSB 79 1134 1410 FS NT

Manufacturer - FSB (Germany)
Design: David Chipperfield

handle/backplate set for fireproof emergency doors
FSB AGL® construction with concealed handle guide ring
corresponds to grade 4 in use and durability according to EN 1906, suitable for use in doors with high usage such as in public buildings
construction durability tested on 1'000'000 cycles of use
complies with DIN 18 273 and EN 1634-1 standards for fire safety doors
complies with EN 179 standard for emergency door equipment
integrated spring for lock load release with active angle of 35°
stainless steel reinforced sub-construction with stable fixed pivot axis
handle length: 133 mm
distance from rose surface to external surface of handle: 58 mm
set with long rectangular backplates
PZ keyhole
backplate size: 45 x 245 mm
backplate thickness: 7 mm
fixed supporting lugs Ø10 mm
distance between centres: 72 / 92 mm
split spindle: 9 mm
standard set suitable for door thickness of 39-48 mm
possible to order sets for door thickness of 29-98 mm
material: stainless steel
available finishes:
- matt satin (standard finish)
- polished

Show only in-stock products

All prices include VAT

Manufacturer	FSB
Series	FSB 1134
material	stainless steel
leaf material	for wooden and metal doors
purpose	for interior doors / for exterior doors
construction	lever handles on both sides
position of door handle	not offset
load capacity	high
class as per EN 1906	class 4
suitable for emergency exits	complies with 179 - emergency door equipment
fire safety	fire safety certified according to EN1906
door direction	when ordering please indicate door swing direction
handle spring	integrated holding spring to cushion the push and pull forces
handle construction	with stable fixed pivot axis
material: sub-construction	reinforced with stainless steel
compatibility standard	German (DIN)
handle length	133 mm
handle square spindle size	9 mm
set	long backplates
backplate/rose shape	square
locking function	PZ - with profile cylinder hole
backplate/rose thickness	7 mm
backplate/rose size	45 x 245 mm
centre distance PZ	72 / 92 mm
installation type	screw on
fastening type	concealed screw fitting
