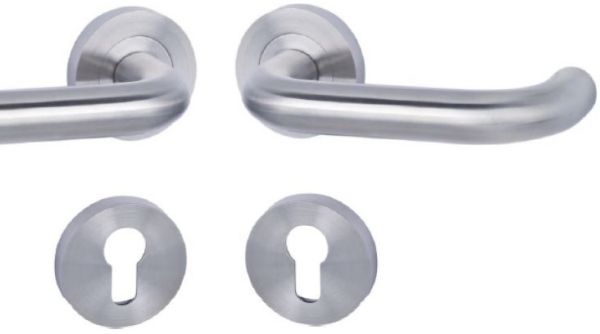

Fireproof handle set TUNIS II-R BK3 FS
Product code
MB00000676
All prices include VAT
From
€34.34
From
€34.34
Only %1 left
Stainless steel fireproof handle set TUNIS II-R BK3 FS
Manufacturer - Südmetall (Germany)
СERTIFICATION ACCORDING TO EN 1906 NOT AVAILABLE.
Manufacturer - Südmetall (Germany)
-
- U-shape handle with roses, suitable for fireproof doors
- metal sub-construction with click-on roses
- PZ keyhole
- spindle square: 8/9/8 mm
- integrated spring to cushion the push and pull forces
- concealed screws
- handle length: 135 mm, Ø - 20 mm
- rose diameter: 53 mm
- rose thickness: 9 mm
- set suitable for standard doors with leaf thickness 38 - 48 mm
- suitable for doors with high usage
- can be certified for fire safety as part of door construction
- material:
-
-
- stainless steel
-
СERTIFICATION ACCORDING TO EN 1906 NOT AVAILABLE.
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
Tunis II-R, handle set with roses for fire-doors BK3, st.steelCode: SB00004703Art. Nr.: 28.04.6610FSPrice:From €34.34In Stock: 0 set -
Tunis II-R handle set with roses for fire-doors, BK3, DB65, st.steelCode: SB00004704Art. Nr.: 28.04.6610FS TS65Price:From €40.20In Stock: 6 set
| Manufacturer | SÜDMETALL |
|---|---|
| material | stainless steel |
| purpose | for interior doors |
| leaf material | for wooden and metal doors |
| construction | lever handles on both sides |
| set | split roses |
| load capacity | high |
| class as per EN 1906 | not certified |
| fire safety | to be certified in door tests as component of equipment |
| handle spring | integrated holding spring to cushion the push and pull forces |
| material: sub-construction | metal |
| door direction | universal use for DIN right and left hand doors |
| compatibility standard | German (DIN) |
| door thickness | 38-48 mm / 65 mm |
| locking function | PZ / BB / WC |
| handle length | 135 mm |
| handle diameter | 20 mm |
| handle square spindle size | 8-9-8 mm |
| backplate/rose shape | round |
| backplate/rose size | Ø53 mm |
| backplate/rose thickness | 9 mm |
| distance from leaf surface to outer edge of handle | 68 mm |
| installation type | screw on |
| fastening type | concealed screw fitting |
| centring lug diameter | 7 mm |
