Fireproof emergency handle on square rose for framed doors FSB 09 1031 FS ALU
Product code
MB00009585
All prices include VAT
From
€110.19
From
€110.19
Only %1 left
Fireproof aluminium handle on square rose for framed doors FSB 09 1031 ALU
Manufacturer - FSB (Germany)Design: Heike Falkenberg
- lever handle firmly fixed into rose, suitable for narrow framed doors
- solid steel sub-construction
- integrated spring for lock load release with active angle of 45°
- construction durability tested on 1'500'000 cycles of use
- complies with DIN 18 273 and EN 1634-1 standards for fire safety doors
- complies with EN 179 standard for emergency door equipment
- suitable for both left and right hand doors
- set with square rose for framed doors
- concealed screws Ø M5
- rose size: 32.5 x 70 mm
- rose thickness: 14 mm
- handle length: 142 mm
- distance from leaf surface to external surface of handle: approx. 71,5 mm
- spindle square: 9 mm
- material: aluminium anodised
- available finishes:
-
- F1 natural aluminium tone
- S5 textured matt, medium dark bronze tone
- S7 textured matt, dark bronze tone
- S8 textured matt, black
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

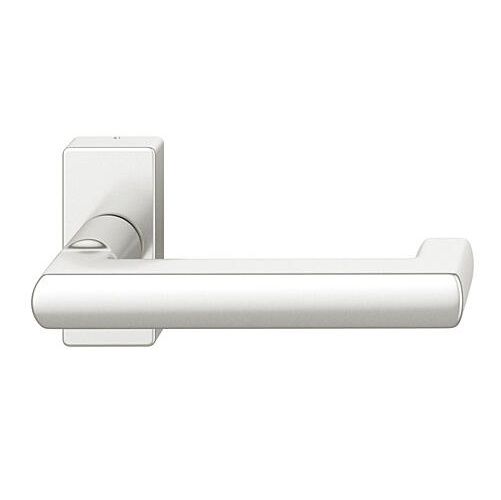

FSB 09 1031 handle for framed fireproof emergency door on square rose, natural aluminium F1Code: SB00000703Art. Nr.: 0 09 1031 27263 0105Price:From €110.19In Stock: 0 pc. -

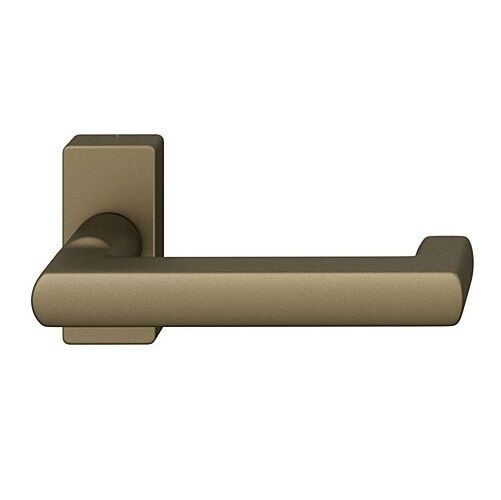

FSB 09 1031 handle for framed fireproof emergency door on square rose, medium dark bronze S5Code: SB00022943Art. Nr.: 0 09 1031 27263 0510Price:From €143.25In Stock: 0 pc.
-

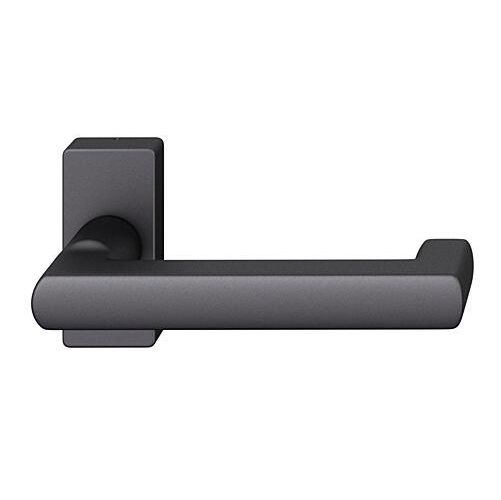

FSB 09 1031 handle for framed fireproof emergency door on square rose, matt black S8Code: SB00022944Art. Nr.: 0 09 1031 27263 0810Price:From €143.25In Stock: 0 pc.
| Manufacturer | FSB |
|---|---|
| Series | FSB 1031 |
| material | aluminium anodised blasted |
| leaf material | for framed doors |
| purpose | for interior doors / for exterior doors |
| construction | one-sided handle female part on rose or backplate |
| position of door handle | not offset |
| load capacity | high |
| class as per EN 1906 | class 4 |
| suitable for emergency exits | complies with 179 - emergency door equipment |
| fire safety | fire safety certified according to EN1906 |
| door direction | universal use for DIN right and left hand doors |
| handle spring | integrated holding spring to cushion the push and pull forces |
| handle construction | with stable fixed pivot axis |
| material: sub-construction | solid steel |
| compatibility standard | German (DIN) |
| handle length | 142 mm |
| handle square spindle size | 9 mm |
| set | without key roses |
| backplate/rose shape | square |
| backplate/rose thickness | 14 mm |
| backplate/rose size | 32,5 x 70 mm |
| installation type | screw on |
| fastening type | concealed screw fitting |
