Fireproof handle for framed doors FSB 06 1015 ALU FS
Product code
MB00009075
All prices include VAT
From
€94.10
From
€94.10
Only %1 left

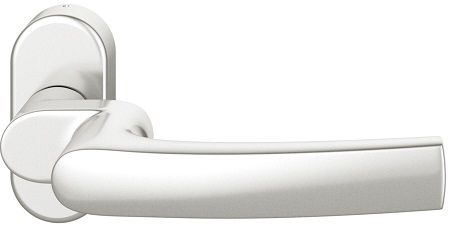

Fireproof aluminium door handle for framed doors FSB 06 1015
Manufacturer - FSB (Germany)
Design: Johannes Potente
If you wish to order a colour that is not available in our online shop, please select the relevant item and quantity to order, indicate the colour in a comment and complete your order. We will send you the information regarding the estimated delivery time and price.
Manufacturer - FSB (Germany)
Design: Johannes Potente
-
- spring-loaded lever handle firmly fixed into oval rose
- suitable for both left and right hand doors
- covered screws Ø M5
- complies with DIN 18 273 standard for fire safety doors
- handle construction with angled grip reduces the risk of injury which may happen when opening/closing the door by the hand coming into contact with the door frame
- rose size: 32,5 x 70 mm
- rose thickness: 14 mm
- total length of handle (from rose inner edge): 150 mm
- distance between leaf surface and front surface of handle: approx. 79 mm
- spindle square for fireproof doors: 9 mm
- material: aluminium anodised
- available finishes:
-
-
- F1 natural aluminium tone
- S5 medium dark bronze tone blasted
- S7 dark bronze tone blasted
- S8 black blasted
- powder coated in black RAL9005
- powder coated in white RAL9016
-
If you wish to order a colour that is not available in our online shop, please select the relevant item and quantity to order, indicate the colour in a comment and complete your order. We will send you the information regarding the estimated delivery time and price.
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
Handle for framed doors, without spindle on oval rose, 9 mm, for fire safety doors, aluiminium F1Code: SB00000612Art. Nr.: 0 06 1015 11263 0105Price:From €94.10In Stock: 0 pc.
| Manufacturer | FSB |
|---|---|
| designer | Johannes Potente |
| material | aluminium anodised blasted |
| leaf material | for framed doors |
| purpose | for interior doors / for exterior doors |
| set | split roses |
| construction | one-sided handle female part on rose or backplate |
| class as per EN 1906 | class 4 |
| load capacity | high |
| suitable for emergency exits | related model available, complies with EN 179 requirements |
| fire safety | fire safety certified according to EN1906 |
| door direction | universal use for DIN right and left hand doors |
| compatibility standard | German (DIN) |
| position of door handle | offset (for finger protection) |
| handle construction | with stable fixed pivot axis |
| material: sub-construction | solid steel |
| handle spring | integrated holding spring to cushion the push and pull forces |
| handle length | 150 mm |
| handle square spindle size | 9 mm |
| backplate/rose shape | oval |
| backplate/rose thickness | 14 mm |
| size | 8 x 140 mm |
| backplate/rose size | 32,5 x 70 mm |
| installation type | screw on |
| fastening type | concealed screw fitting |
